Aadyntech Sturdy Jab Quad Variable LED 2800K - 5700K

PRODUCT DESCRIPTION

Aadyntech Sturdy Jab Quad Variable LED Light 2800K - 5700K

The new JAB Quad is essentially four Aadyntech JAB fixtures designed in a very powerful, soft panel light configuration. It is completely weatherproof with an IP65 rating. The output is an amazing 120,000 Lumens, more than twice the output of any leading competitor. Additionally, it consumes only 1,300 watts of power at full brightness, so it can operate on a single 15 or 20 amp circuit. The CRI is 92+ and it has a full range of +- Green/ Magenta color control. The Quad is very powerful with a wide beam angle, they are the best fixtures for high speed photography available on the market today.

The JAB Quad is bright enough to be used outside in the daytime, and it can also be used to replace a 6K spacelight. The beam is very smooth, so no further diffusion is necessary.

The Jab Quad can be controlled in 3 ways: AAdynTech’s User Interface Module, Wired DMX or Wireless DMX.

The IP65 rated Quads come with a medium diffusion lens, IP65 control box, IP65 20’ control cable, power cable, User Interface Controller, City Theatrical wireless receiver chip and antenna, yoke & pin.

FEATURES

• Minus/Plus Green/Red Correction
• 92+ CRI across entire brightness range
• Rated IP65
• 443 foot candle output @ 10 feet
• Color Range 2800k - 5700k
• Auto range voltage - 100/277 VAC-50/60Hz
• Low Power Consumption Less than 15a @ 120Vac
• Flicker-free up to 12,000 fps
• Compatible with existing User Interface Modules (UIM)
• Wireless or wired DMX with RDM
• Daisy chain DMX
• Certified ETL, CSA, CE and RoHS compliant
• Operating temperature -20°C to +50°C
• 2 year warranty

Includes

• Jab Quad LED Fixture

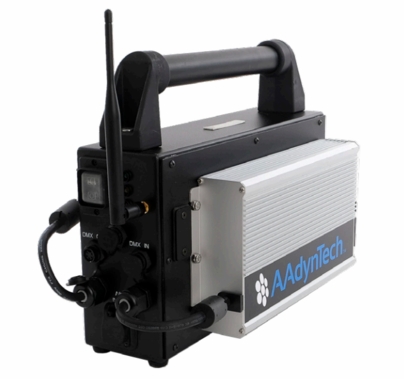

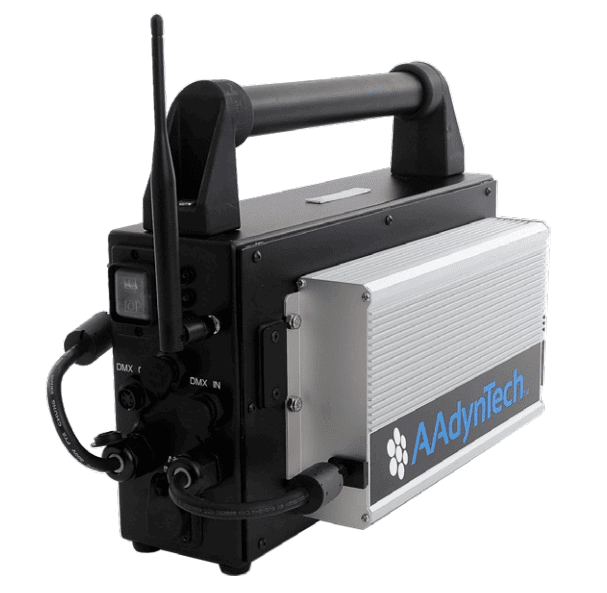

• Control Box
• 14 Pin Control Cable 20ft
• User Interface Module
• Wireless Receiver
• Standard Diffuser Lens
• Twist Lock AC Cord
• Yoke
• Junior Pin 1 1/8"
