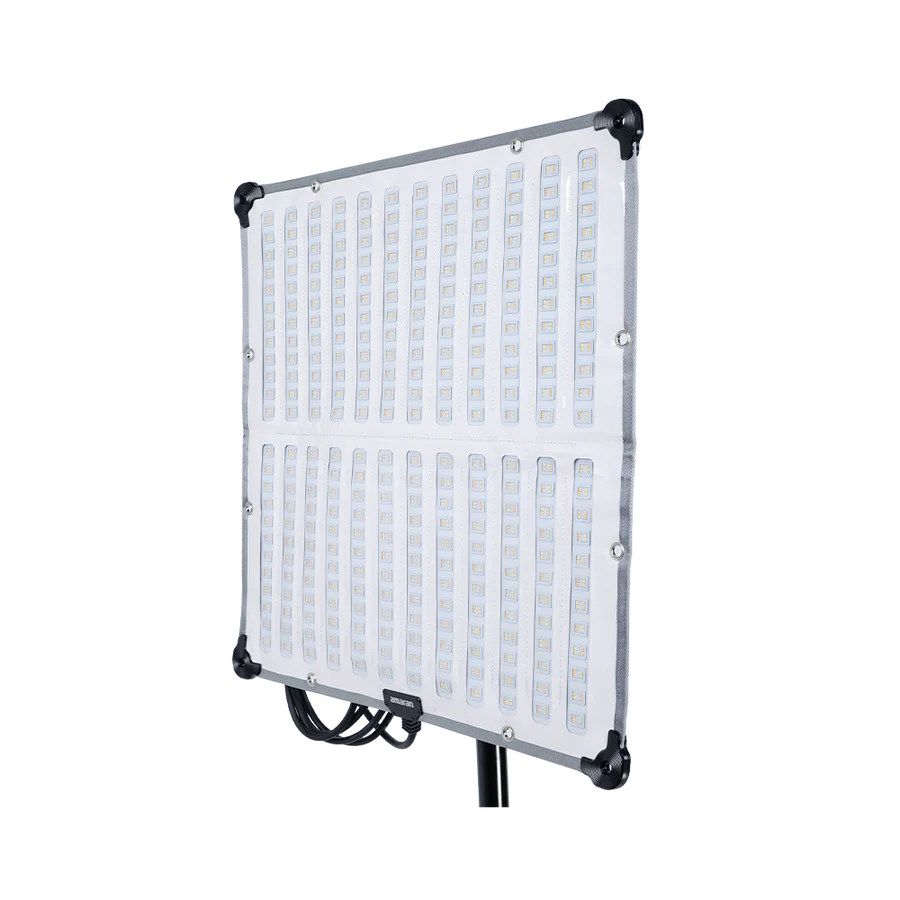

Amaran F22c - Ultra-lightweight Flexible LED Mat 2'x2' RGBWW | V-Mount

Key Features

1. 2x2 Form Factor:

   • Ultra-light and ultra-thin fabric ideal for on-the-go travel and tight spaces.
   • Traditional 2’x2’ form factor for ample surface area with compact design.

2. Full Color Control:

   • Integrated RGBWW chipset for complete control over creative lighting.
   • Tunable CCT from 2,500K to 7,500K with green-magenta adjustment.
   • 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.

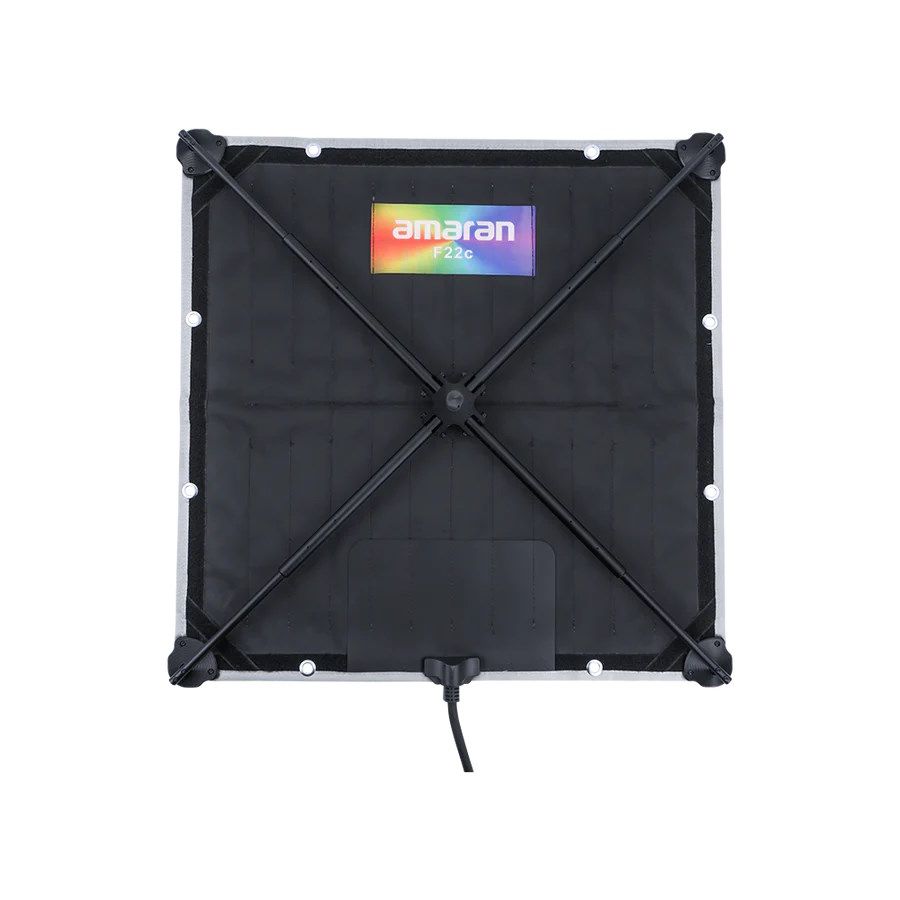

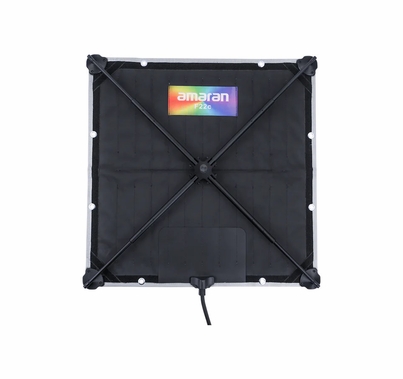

3. All-New X Bracket:

   • Enhanced rigidity and security with the new X Bracket design.
   • 2-stage spring-loaded support tubes for a taut light mat and secure bracket attachment.
   • Easy setup, compact packing, and integrated knurled baby pin for mounting.

4. Power Flexibility:

   • Control box with multi-voltage V-Mount or Gold-Mount battery plate compatible with various batteries.
   • Full output achievable using the AC power supply.

5. Sidus Link App:

   • Wireless control via the Sidus Link app for a seamless user experience.
   • Source Match, Color Picker, Gel Control, and Custom FX functions for versatile color control.

6. Professional Controls:M

   • External control via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter* for professional-level flexibility.

Specifications

• Output: 6420 Lux at 3.3' (5600K)
• Color Temperature: 2500-7500K
• CRI: 95 | TLCI: 98 | CQS: 96
• Control Options: On-Board, DMX, and Bluetooth
• Passive Cooling for Silent Operation
• Dimming: 0-100%
• 15 Built-in Lighting Effects
• Multi-Voltage AC, V-Mount Battery
• Includes Softbox Frame, Diffusers & Grid

Unleash Your Creativity

Experience the perfect blend of portability, versatility, and professional-grade lighting for studio and film/TV production with the Amaran F22c. Explore a new dimension of lighting possibilities.

In the Box

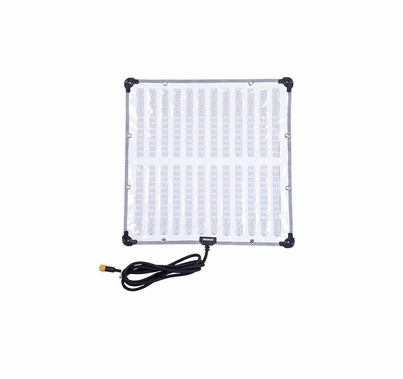

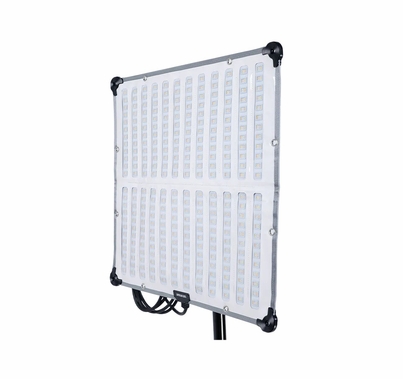

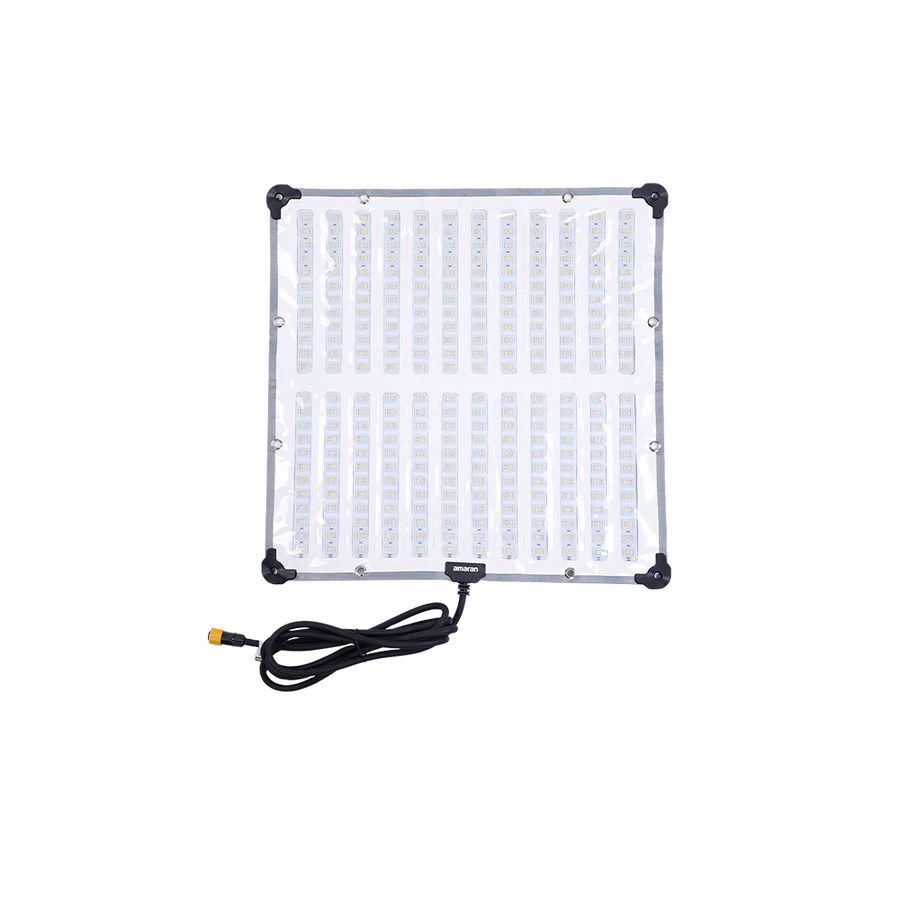

• 1x Amaran F22c RGBWW 2x2 LED Flexible Light Mat

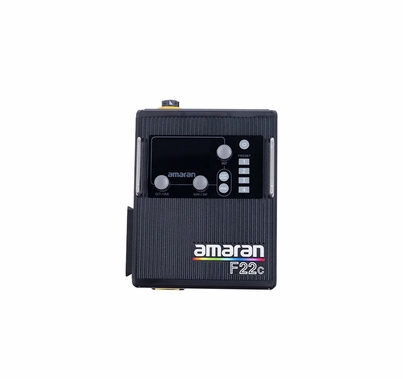

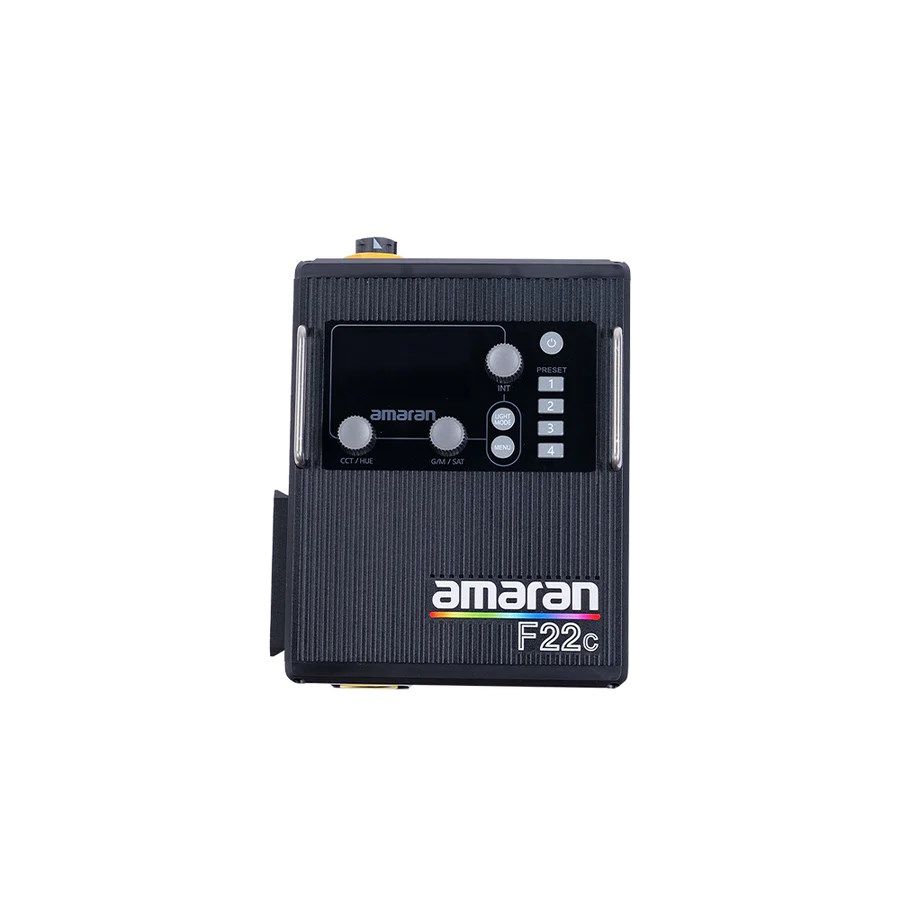

• 1x Amaran F22c Control Box
• 1x Amaran F22c Head Cable Extension (3m)
• 1x Amaran F22 Support Bracket
• 1x Tilting Stand Mount
• 1x Amaran F22 Softbox Frame
• 1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
• 1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)
• 1x Amaran F22 Light Control Grid
• 1x AC Power Supply
• 1x AC Power Cable
• 1x Amaran F-Series Light Carrying Case

Technical Specifications

• CCT: 2500K~7500K
• CRI: ≥95
• TLCI: ≥97
• CQS: ≥96
• TM-30 RF (Average): 94
• TM-30 RG (Average): 102
• SSI (Tungsten): ≥83
• SSI (D56): ≥74
• Color Chipset: Red, Green, Blue, Warm White, Cool White
• Beam Angle (Control Grid): 45°
• Max Power Output: ≤200W
• Max Power Consumption: ≤240W
• Operating Current: 5A
• AC Power Supply: 48V DC
• D-Tap Battery: 12-28.8V DC
• Battery Compatibility: 16.8V, 26V, 28.8V full power output
• DC Input: (3m) DC Self-locking
• AC Power Cable: Self-locking IEC C13 AC Power Cable (4m)
• Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
• Control Methods: On-board, Sidus Link App, DMX
• Connectivity: Bluetooth 5.0 (Sidus Mesh)
• Bluetooth Operating Range: ≥80m / 262.5ft
• Firmware Upgradeable: Sidus Link OTA
• Display Type: OLED
• Fixture Cooling Method: Natural Dissipation
• Control Box Cooling Method: Natural Dissipation
• Umbrella Holder: Yes
• Soft Box: Yes
• Mounting: 1/4-20in * 3, Tilting Support Column
• Estimated LED Lifetime (L70): 50,000 Hours
• Estimated Color Shift Over Lifetime (CCT): 2% over 6,000 Hours
• Certifications: CE, FCC, cTUVus, KC, NCC, ROHS

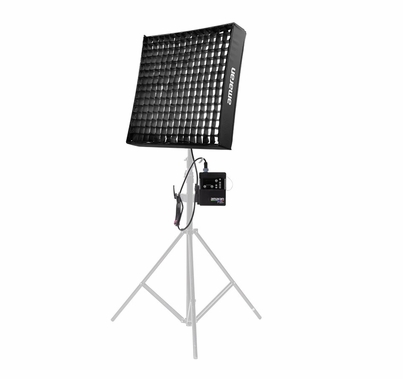

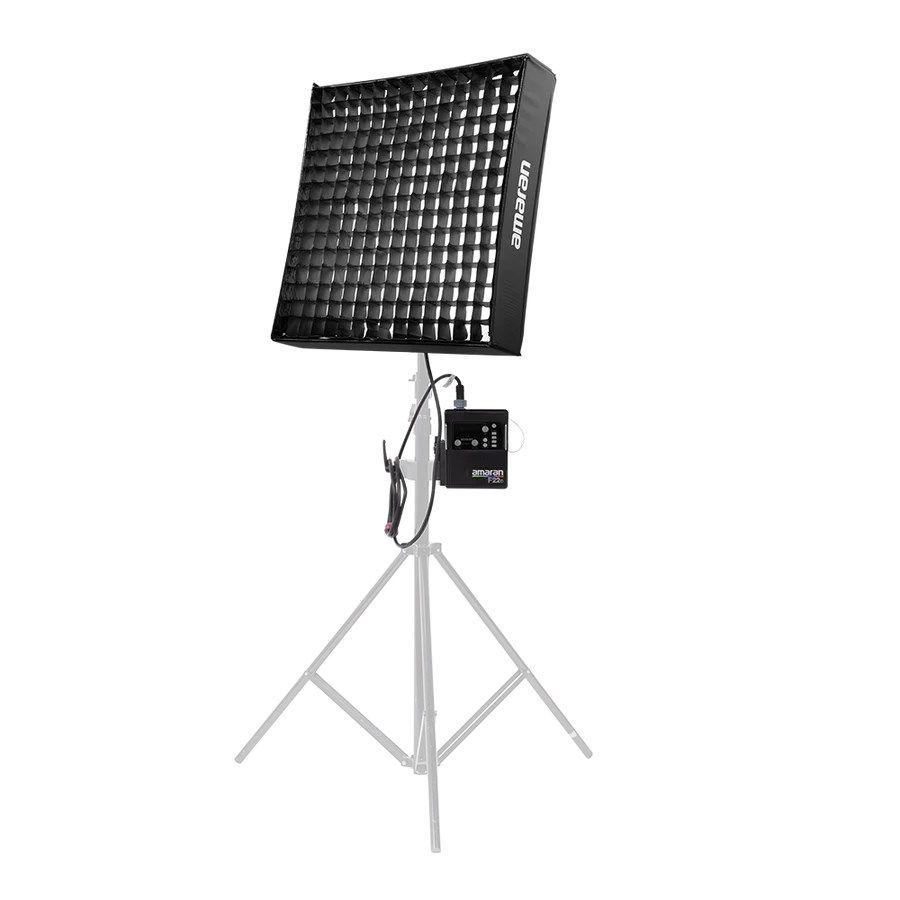

Light Stand (shown in photo) NOT Included
