Aputure 2 Bay Battery Power Station V-Mount | APD0170A3B

PRODUCT DESCRIPTION

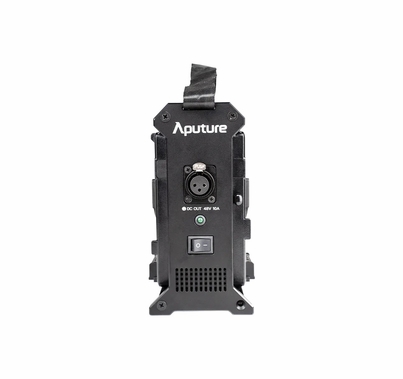

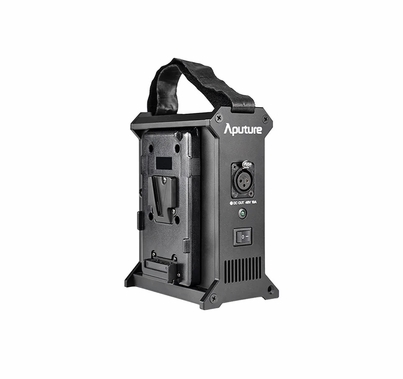

Experience the freedom to take your lighting anywhere with the Aputure 2-Bay Battery Power Station. This battery inverter is designed for use with two industry-standard 14.4V/14.8V Gold or V Mount batteries, delivering a robust 48V DC current via a 3-pin XLR connector.

Key Features:

• Output up to 480W DC power via 3-pin XLR (48V @ 10A)

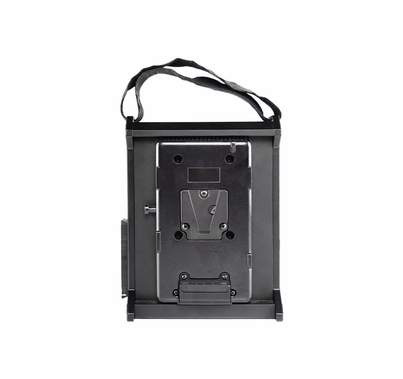

• Available in V-Mount and Gold Mount Battery Plate Options
• Lightweight design with carrying strap
• Built-in Aputure Lighting Clamp Quick Release Plate for fast & easy mounting

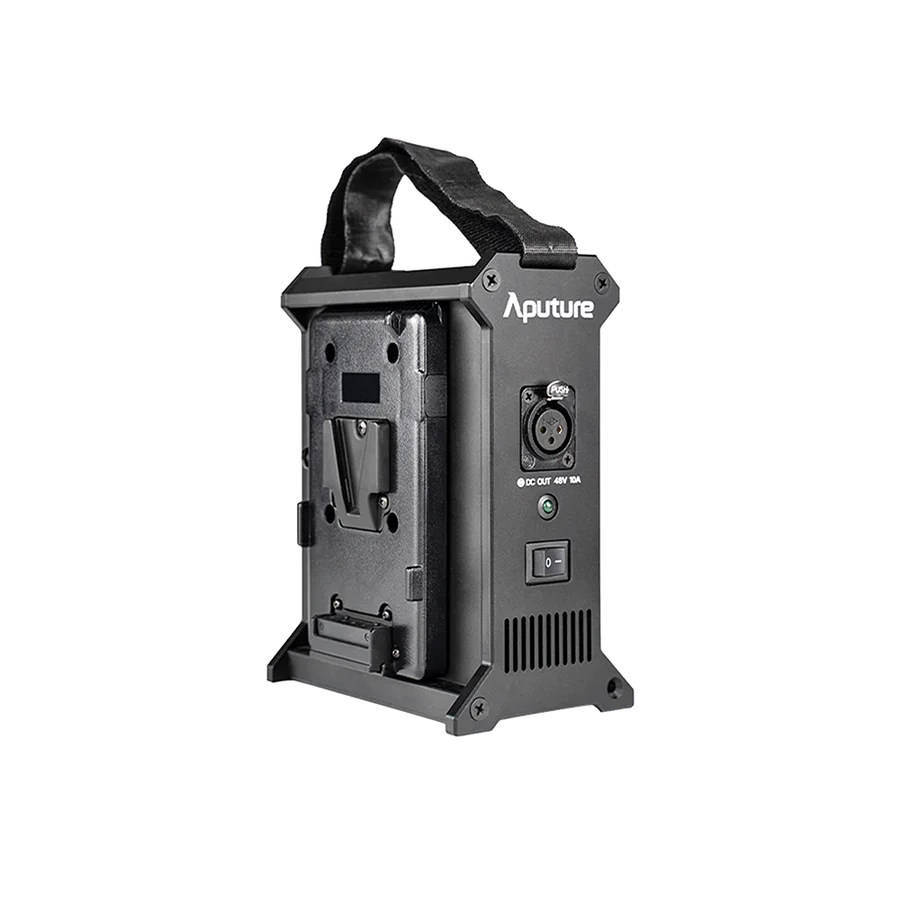

Take Lighting Anywhere:

Unlock the potential of battery power for your 48V lighting fixtures, including popular models like the Nova P300c or Amaran 100 & 200 series LED lights. The 2-Bay Battery Power Station provides seamless flexibility for on-the-go lighting setups.

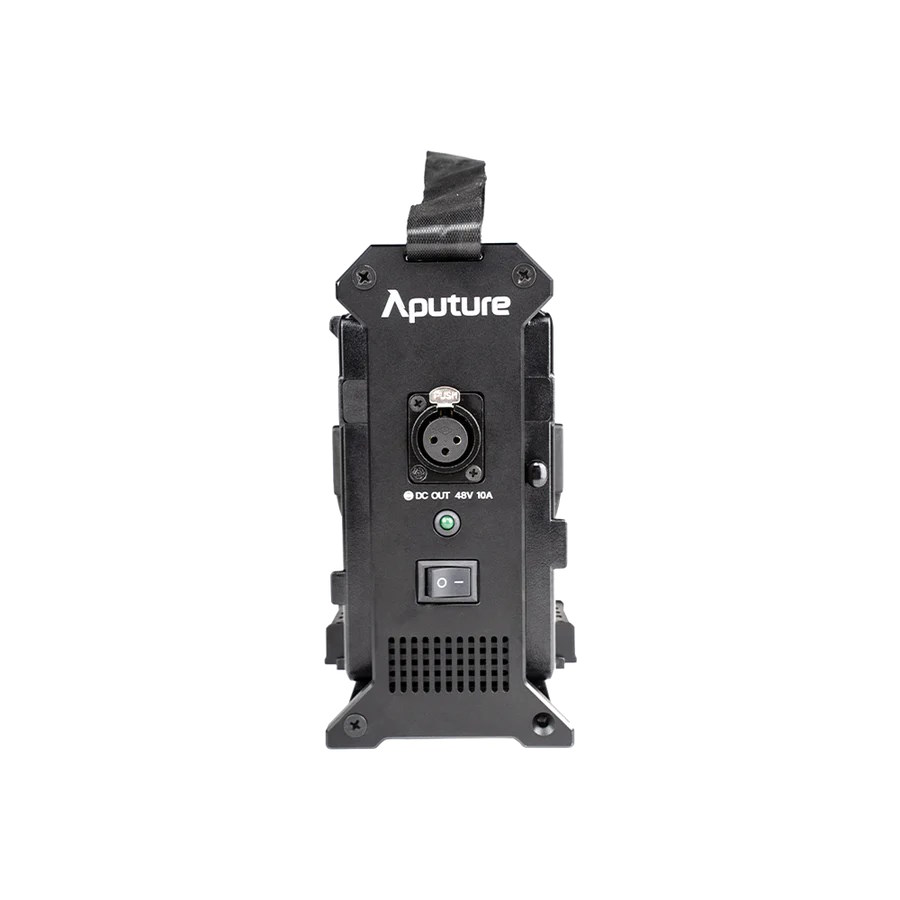

Extremely Powerful:

Capable of outputting 48V DC power at up to 10 Amps (480W), this power station empowers your high-demand fixtures, ensuring consistent performance for power-hungry devices like the Nova P300c (360W) or Amaran 200 Series Light (250W).

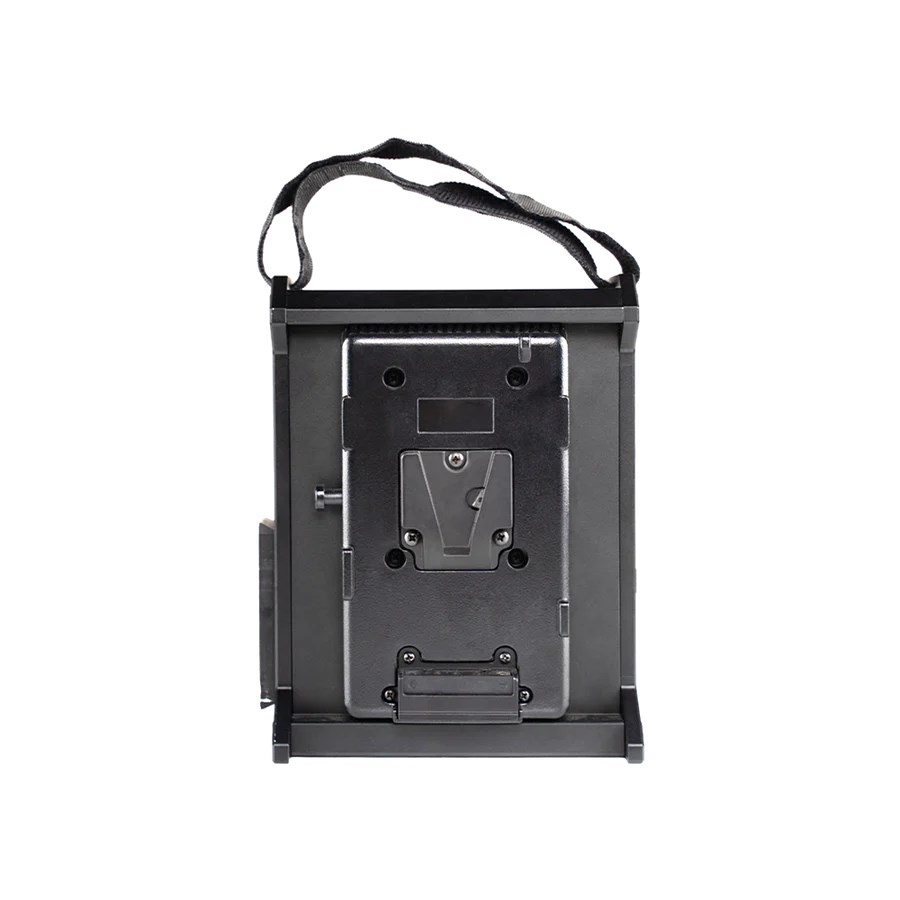

Seamless Workflow:

Weighing in at under 3lbs and equipped with a convenient carrying strap, the 2-Bay Battery Power Station is designed for speed and ease of use. The Aputure Lightning Clamp Quick Release Plate allows quick mounting into any Lightning Clamp or on the back of a Nova P300c, providing flexibility for fast-paced shooting scenarios.

Compatible with:

• amaran F21x
• amaran F21c
• amaran F22x
• amaran F22c
• amaran 150c
• amaran 300c
• amaran 200x S
• amaran 100x S
• amaran 200d S

Specifications:

• Battery Input: 14.4V/14.8V V-Mount & Gold Mount Batteries (12~16.8V)
• DC Output: 48V/10A, Max 480W
• Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
• Dimensions (V-Mount): 175 x 130 x 98mm (6.9 x 5.1 x 3.9in)
• Dimensions (Gold Mount): 175 x 130 x 88mm (6.9 x 5.1 x 3.5in)
• Weight: Approx. 1.3kg / 2.9lbs

In the Box:

• 1x 2-Bay Power Station V-Mount / Gold-Mount

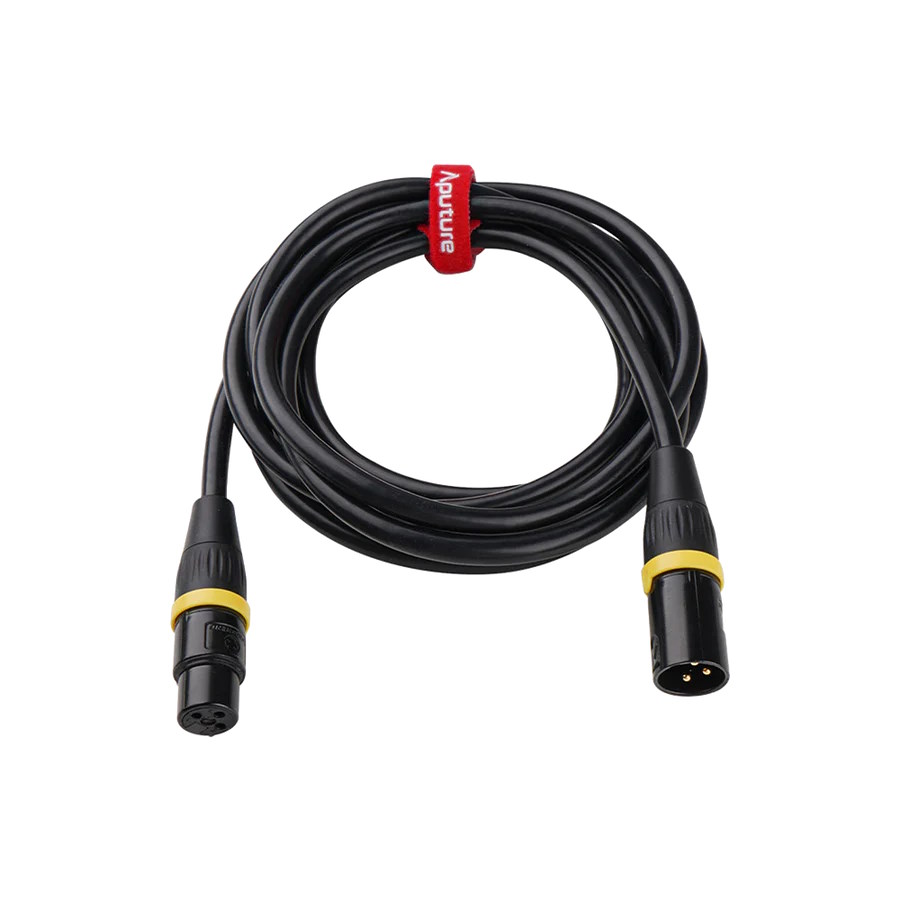

• 1x 3m 3-Pin Male to 3-Pin Female XLR Power Cable

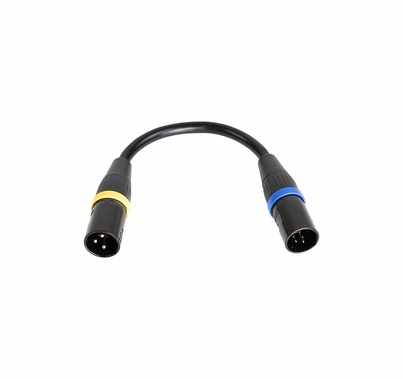

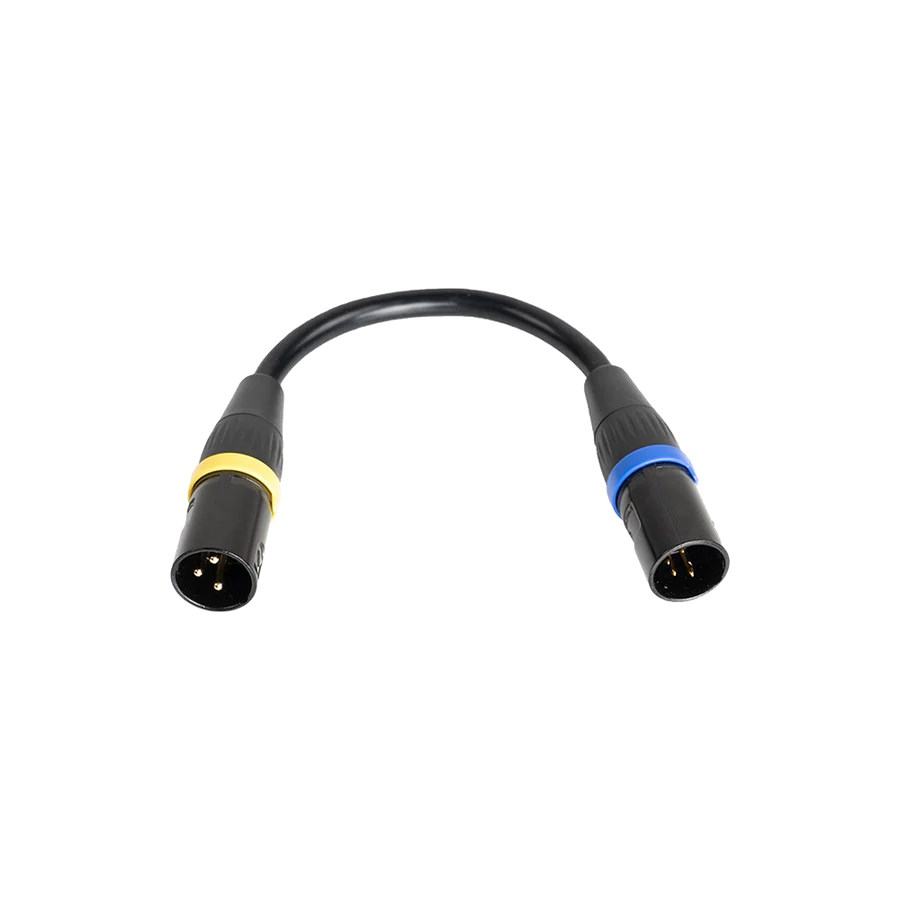

• 1x 0.2m 3-Pin Male to 4-Pin Male XLR Adapter Cable
