PRODUCT DESCRIPTION

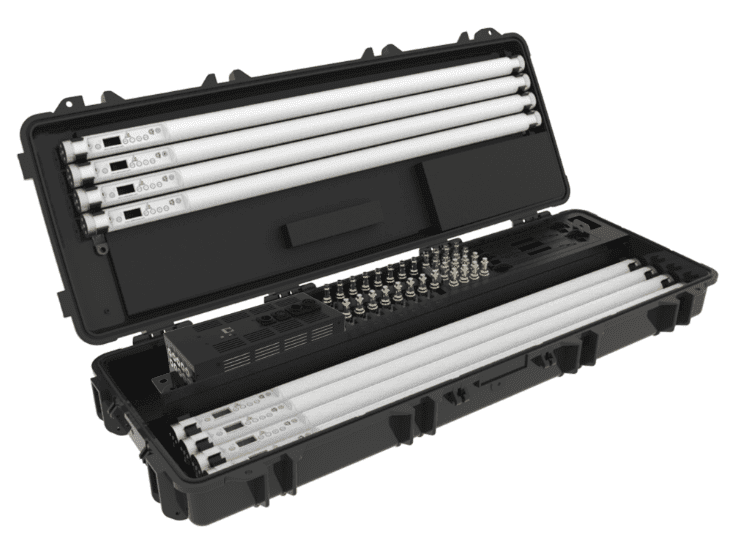

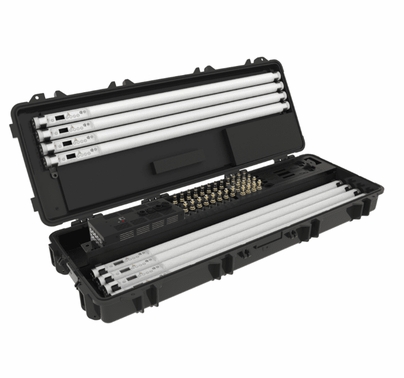

Astera LED Titan Tube (8) Lamp Kit w/ Charging Case FP1-SET
Set of 8 Titan Tubes with Charging Case comes with power cord and accessories (8 x
stands, 16 x holders, 16 x spigots, 16 x eye bolts).
***Individual Chargers NOT Included***
Kit Weight: 86 lbs (approx.)
Kit Dimensions: 46" x 18" x 7" (approx.)

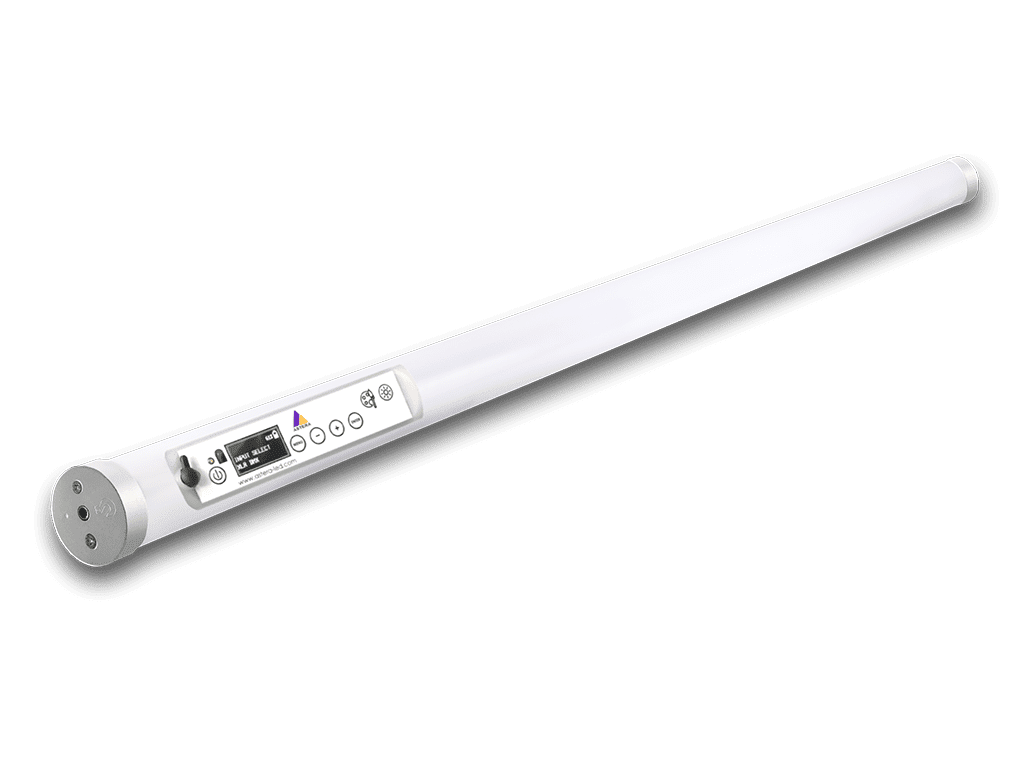

The Astera LED Titan Tube provides 72 watts of ultra high TLCI flicker-free light, perfect for film, video and photo production. 16 pixel segments, 180 degree beam angle, IR, App controlled, wired and wireless (CRMX) DMX and built-in rechargeable LG battery. The Titan is IP65 rated (waterproof) for
use inside or outside. Plus green / minus green control. The Titan will run up to 20 hours on battery power with a 3 hr re-charge time. ***Requires Charger (FP1-CHR) to charge battery (see item below)***. The optional Power Box will run (10) Titan Tubes on AC power.
Features
- 16 Individually controllable pixels
- Tunable white color range from 1,750K to 20,000K
- Ultra-high color rendering TLCI ≥ 96, CRI ≥ 96, RE ≥ 90
- 2hr Boost Mode 2.8 X the brightness in white for
almost 2hrs (compared with AX1).

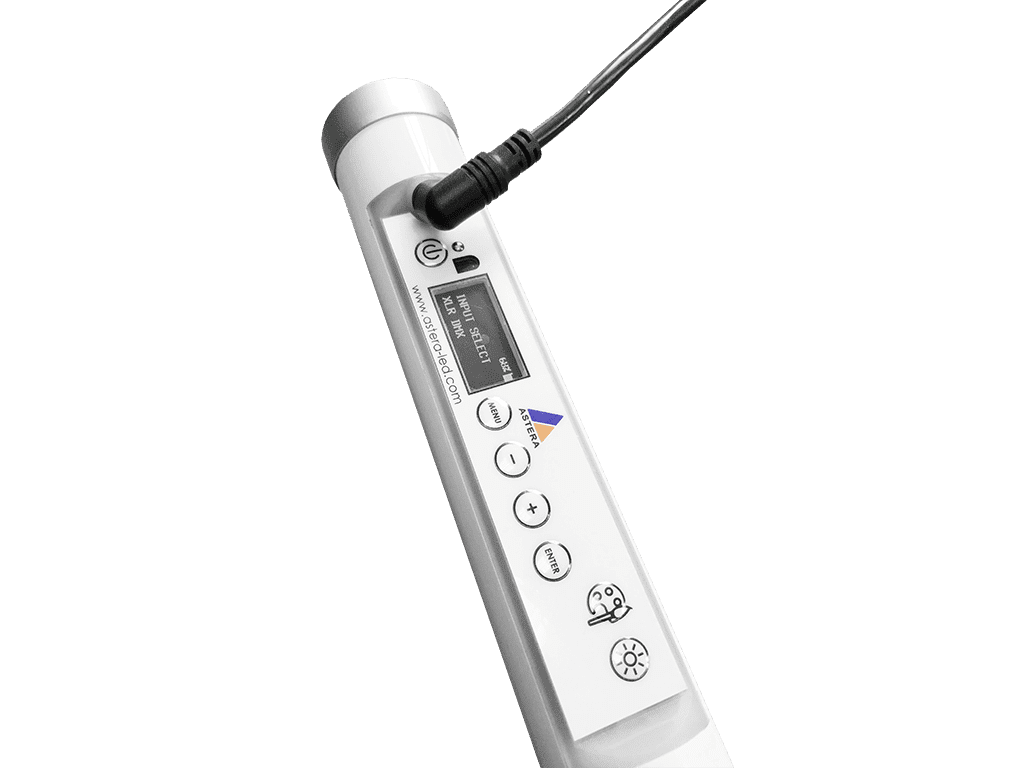

- Onboard Control / Display. Quick access to DMX setup, colors and
hue, saturation, intensity control.
- Wired Data Connection (+Wireless DMX). DMX, Art-Net, sACN and power
can be distributed via the PowerBox
- Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
- Seamless Runtime: Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
- TruColor Calibration:
Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
- Effects: Quickly build programs out of colors and effects, trigger them or make them match a beat.
- Flicker Free
Scrambled PWM technology to avoid flickering when filming.
- Green/Magenta Correction:
Adjust green/magenta during content creation to reduce postproduction work.
- Scheduled StandBy:
Switch lights into power-saving standby and schedule them to wake up when the production starts.
- Dynamic PowerBoost:
This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
- Emergency Lights:
Switches to white light when AC power is cut to keep your event save.
- Anti-Theft:
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
- DJ Feature:
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
- Other Features:
The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
Optical
- Colors: Red, Green, Blue, Mint, Amber
- Total LED power: 72W
- Maximum power draw: 48W
- TLCI: ≥96
- CRI: ≥96
- Luminous flux: 2900Lm
- Emittance @1m: 785Lx
- Strobe: 0-25Hz
- Beam Angle: 120˚
- Field Angle: 180˚
- Pixels: 16
Control
- Backside Display with HSI control
- Infrared
- Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
- Range: 300m | 330 Yards
- DMX: Wired + Wireless (CRMX & W-DMX)
Electrical
- Battery: LG Chem Lithium-ion
- Battery Lifetime: 70% after 300 cycles
- Battery Runtime: Up to 20 hours
- LED Lifetime: 50.000 Hours
- Charging time (nominal): 3 Hours
- Input Voltage : 24V 2A
Construction
- Housing: Polycarbonate, metal endcap
- IP Rating: IP65
- Relative humidity: 0-100%
- Operating Temperature: 0-40 ˚C | 32-104 ˚F
- Weight: 1.35kg |3Lbs
- Dimensions: Ø42 x 1035mm | Ø1.6” x H40.7”
Astera products have a 2 year warranty, but only a 6 month warranty for the batteries in all of their products.
Astera has a 30 day return/replacement warranty.
