PRODUCT DESCRIPTION

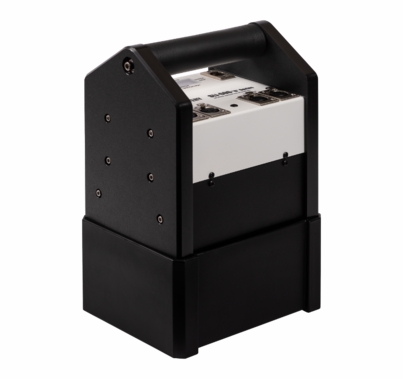

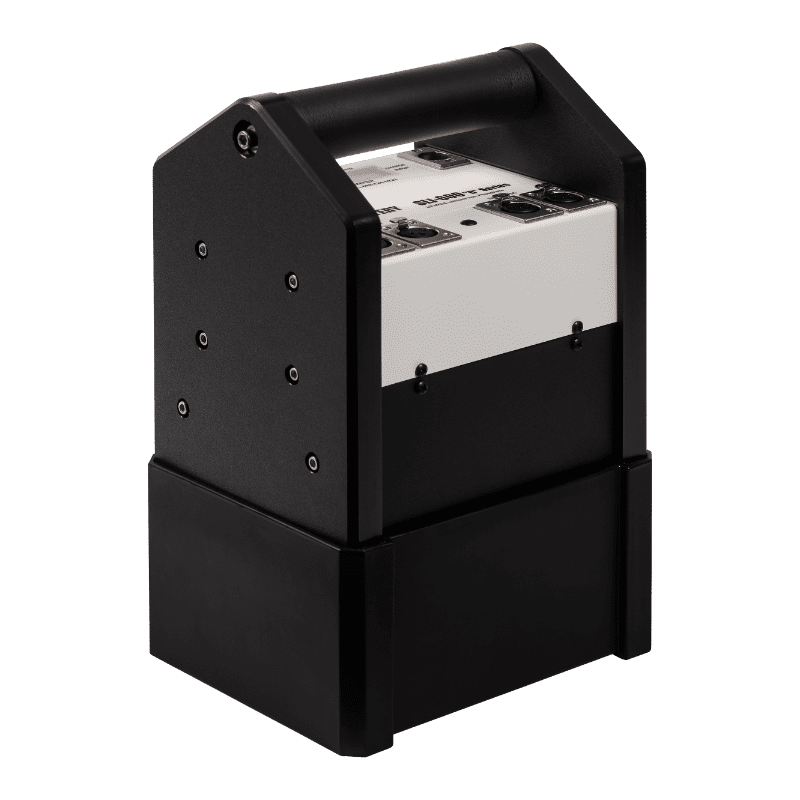

Block Battery SLi-D600 14V / 28V Dual Voltage Smart Lithium Ion 600whr with Charger

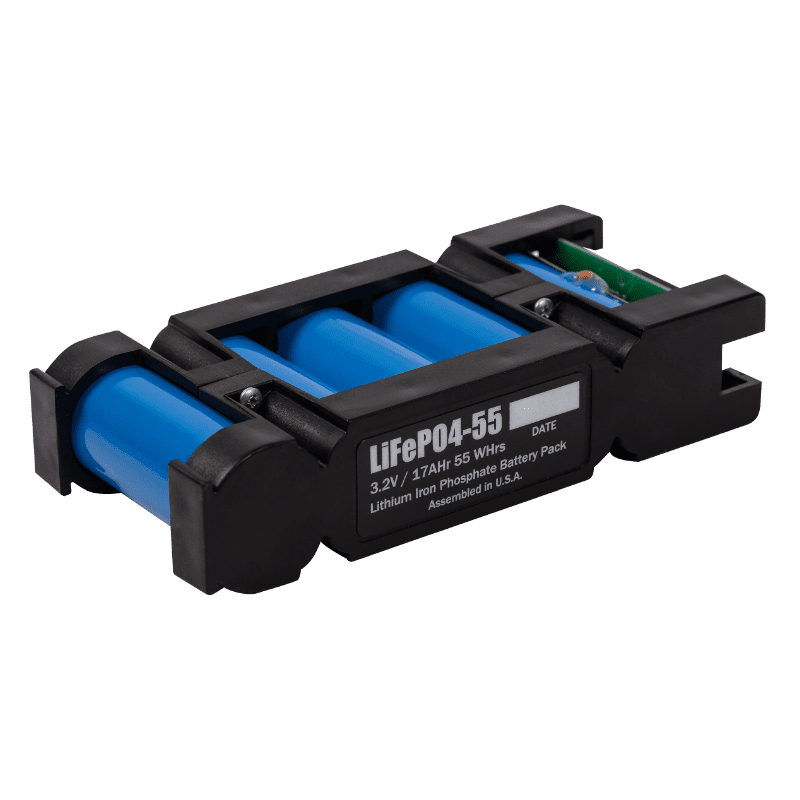

Our Best selling block battery. The SLi-D600 is 608wh and is the lightest, fastest charging block on the market, and can be disassembled for air travel. Based on a Block's unique cartridge system, the battery cartridges can be easily removed to meet travel requirements and makes maintenance re-celling easier. The SLi-D600 has a UPS mode so the battery can charge and be used at the same time. These batteries can also be linked together for increased capacity. The SLi Series Blocks are the most versatile Block Battery designed for cinematic production applications. Utilizing innovative design concepts, the SLi Series provides an advanced feature set including QuickCell modularity and AutoBalance technology, at the same time. The SLi-D6000 comes standard with multiple simultaneous voltage outputs, a nominal 16vdc output and a regulated 28vdc output.
A Fully Assembled (Battery Cartridges Installed), The SLi-D600 Must Be Shipped as Hazardous Material By Qualified Shipping Company. By removing the cartridges, and shipping in the same box as the housing, it can go regular UPS / Fedex Ground with only a UN3481 label.
Voltage Ouputs: Voltage ranges:12.5v ~ 17.25v OR 25v ~35v at the same time.
Designed For:
- 14V & 28V Cameras & accessorie
- 0-250 Watt Loads
Includes
- (1) SLi-D600 block battery

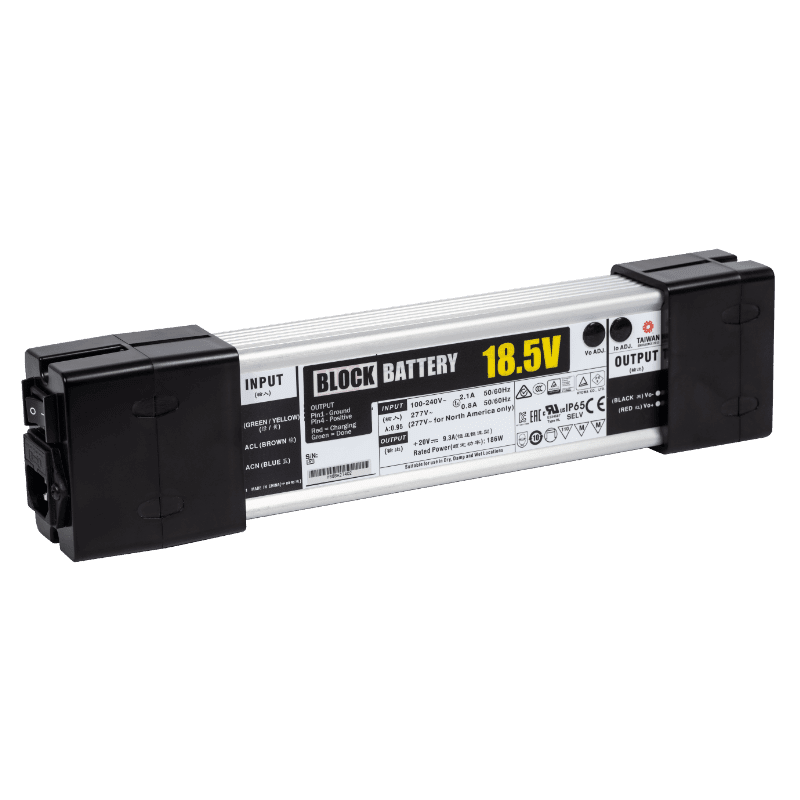

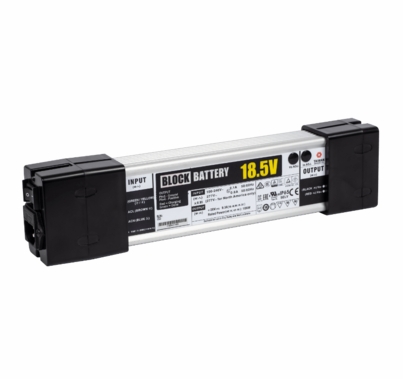

- (1) PSU-185-18.5 charger
- (1) C-44-XLR-3 cable
- AC power cord
Feautures
- Dual Voltage:
28V Regulated. Connector: 3-Pin XLR, Arri Standard (Pin 1 Gnd, Pin 2 Bat +)
12.5V ~ 17.25V. Connector: 4-Pin XLR, (Pin 1 Gnd, Pin 4 Bat +)
- ON/OffON - Push to Start:
Momentary switch to engage output connectors. LCD will light
up when outputs are turned on and battery is not empty. If the
LCD Display does not turn on when the “ON/OFF Enable Switch”
is ON and the “Push to Start” switch is depressed, then the
battery is empty. Start the charging procedure.
Enable: Switch MUST be turned ON first to enable the output power
- Output Fuses:
F2 - 12V~17.25V Fused at 15 amps. Maximum recommended
continuous current draw is 12 amps.
F1 - 25V~34.5V Outputs and the 28V regulated outputs are fused
at 10 amps. Maximum recommended continuous current draw is
8 amps.
- Power Meter:
The Active Discharge screen displays critical
output information about the power supplied from the Block
Battery. Note: Leaving the Block turned on while not in use will
discharge the Block, It is best to turn off the “ON/OFF Enable”
switch when not in use. See reverse side for screen descriptions
- Charge Input:
Use ONLY the PSU -185 Charger and cable from Block Battery.
The block can be charged and continue to power connected
devices if desired. When the charger is connected the Charge
LCD screen will automatically turn on (UPS Mode). See reverse
side for screen description.
Specs
- SLi-D600 Dimensions: 12” (30.5cm) Height x 7.625” (19.3CM) Width x 6.125” (15.5 cm) Depth
- SLi-D600 Weight: SLi-D600 17 lbs (7.71 kg)
- Temperature Recommendations:
Discharge Temperatures -20°C to 50°C (-4°F to 122°F)
Charge Temperatures 0°C to 50°C (32°F to 122°F)
- AmpHours: 17AHrs @ 25V~34.5V or 28V Regulated 34AHrs @ 12.5~17.25V
- WattHours: 550WHrs
