Chauvet DJ Data Stream 4 DMX-512 Optical Splitter

PRODUCT DESCRIPTION

Chauvet DJ Data Stream 4 DMX-512 Optical Splitter

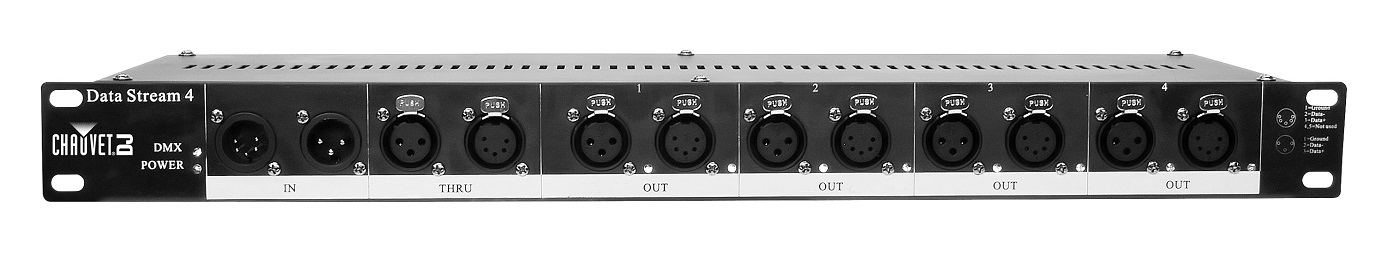

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional thru port.

Features:

• Universal, optical DMX splitter provides 4 outputs from a single input
• Increase flexibility with 3- and 5-pin connections for each input/output
• Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
• Electrical isolation between input and output
• Conveniently mount with a shorter cable run using the single space (1U) mounting rack

Specifications:

• DMX Connectors: 3- and 5-pin
• Rackmount: 1U
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 3W, 0.1A @ 120V 60Hz
• Power and Current: 5W, 0.1A @ 230V 50Hz
• Weight: 5.8lbs (2.6kg)
• Size: 19 x 5.3 x 1.8in (483 x 134 x 46mm)
• Approvals: CE
