PRODUCT DESCRIPTION

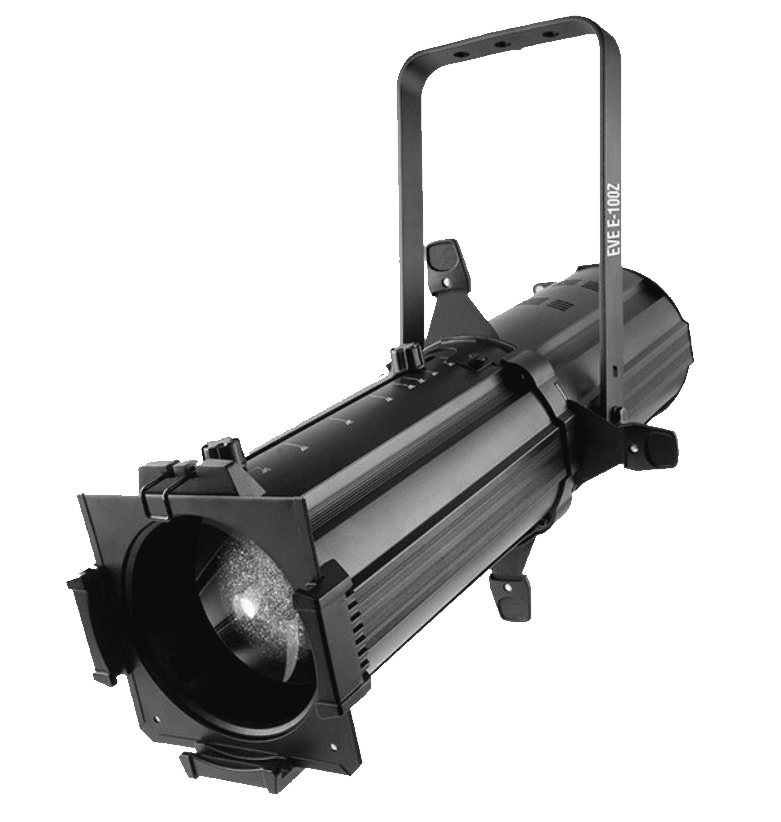

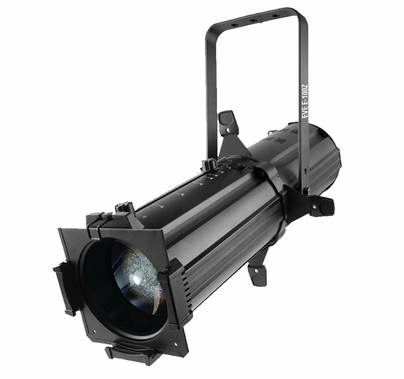

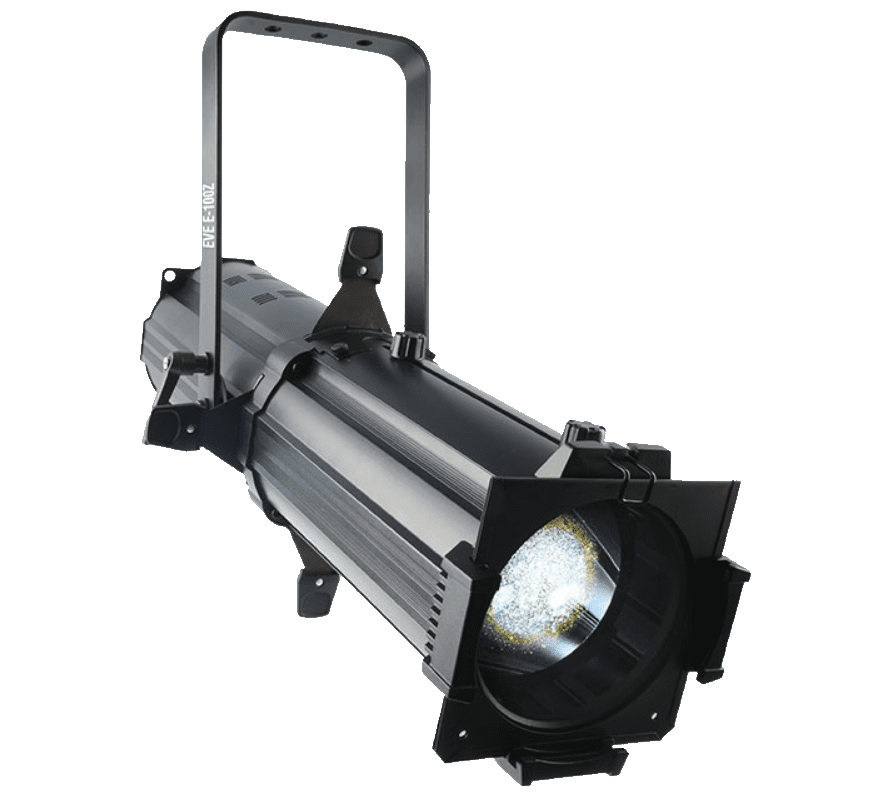

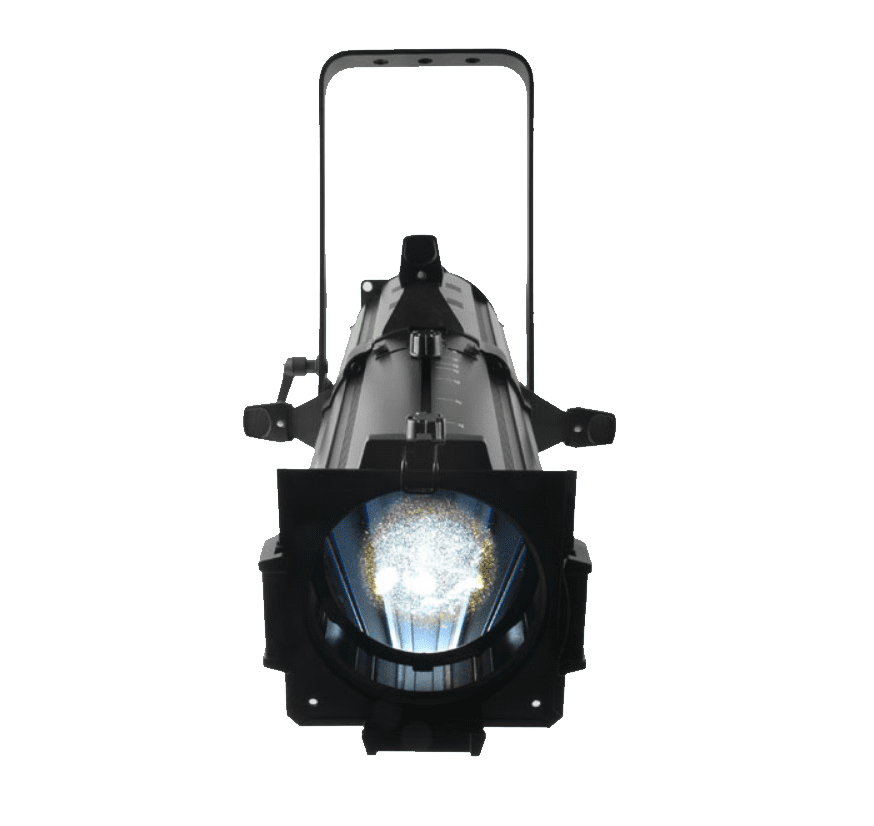

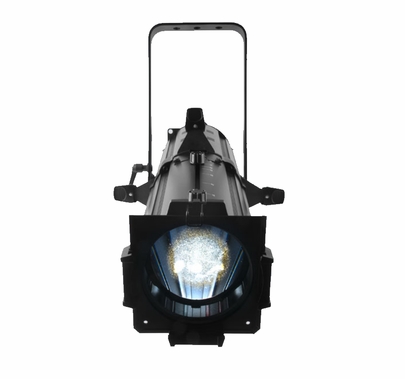

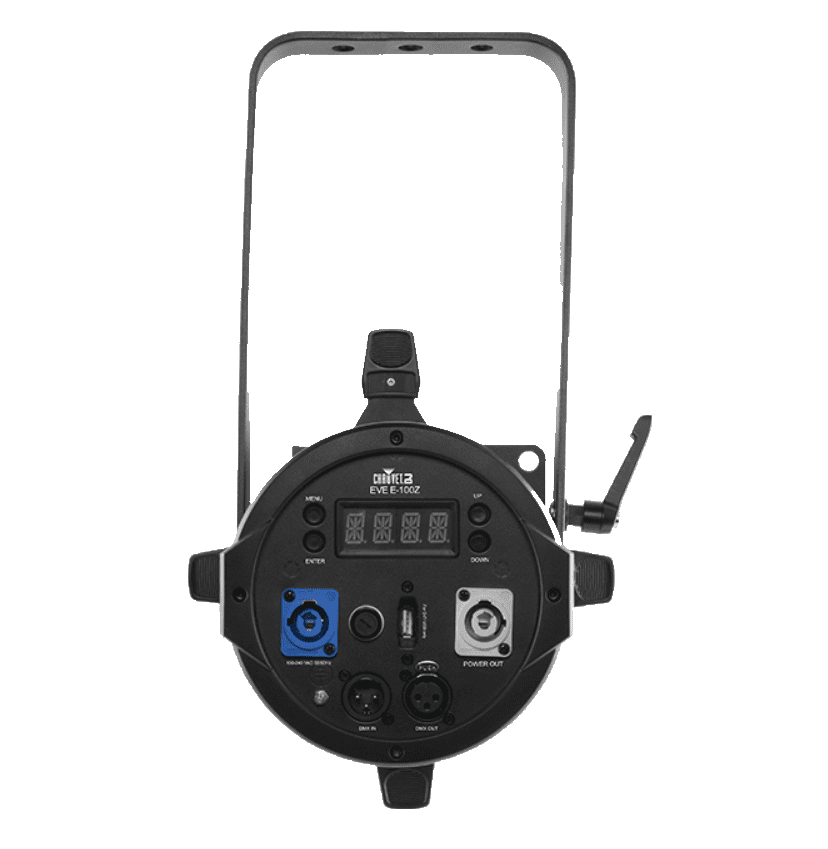

Chauvet DJ EVE E-100Z 100W LED Ellipsoidal with Zoom
EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. It’s designed for mobile and installation applications. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.
Highlights
- LED Ellipsoidal shines a hard-edged, warm white spot in any direction
- Easily highlight areas by altering the projected beam with framing shutters
- Flexibility to project from any distance using the manual zoom
- Flicker-free operation suitable for on-camera use
- Includes holders for glass and steel gobos and a gel frame
- Save time running extension cords by power linking multiple units
- Eliminate the need for DMX control with standalone operation
WHAT'S INCLUDED
- Power cord
- Gel Frame
- Framing Shutters
- Gobo Holders for Glass and Steel Gobos
- Warranty card
Specifications
- DMX Channels: 1 or 3
- DMX Connectors: 3-pin XLR
- Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 30 Hz
- Zoom Angle: (manual):
14° to 30°Illuminance: (14°): 15,100 lux @ 2 m
(30°): 3,800 lux @ 2 m
(14°): 3,238 lux @ 5 m
(30°): 829 lux @ 5 m
- Power Linking: 9 units @ 120 V; 16 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 106 W, 0.9 A @ 120 V, 60 Hz
103 W, 0.5 A @ 230 V, 50 Hz
- Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
- Weight: 12.6 lb (5.7 kg)
- Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
- Approvals: CE, METCRI: 80
- Color Temperature: 3,500 K
- Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)
