PRODUCT DESCRIPTION

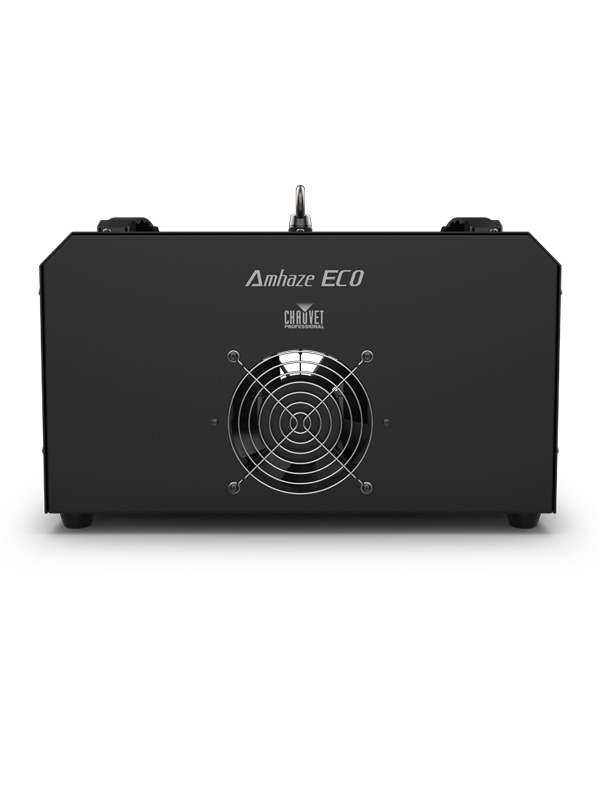

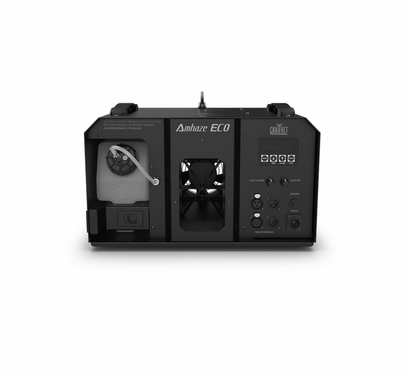

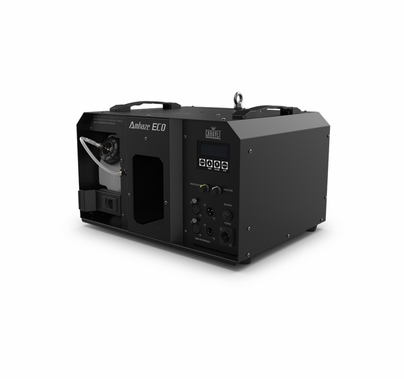

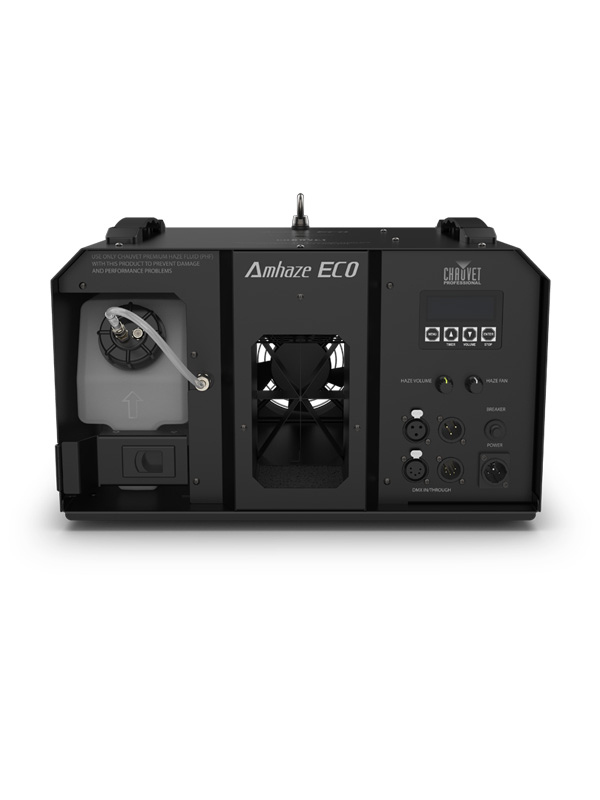

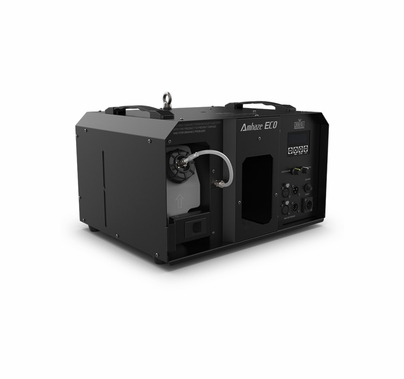

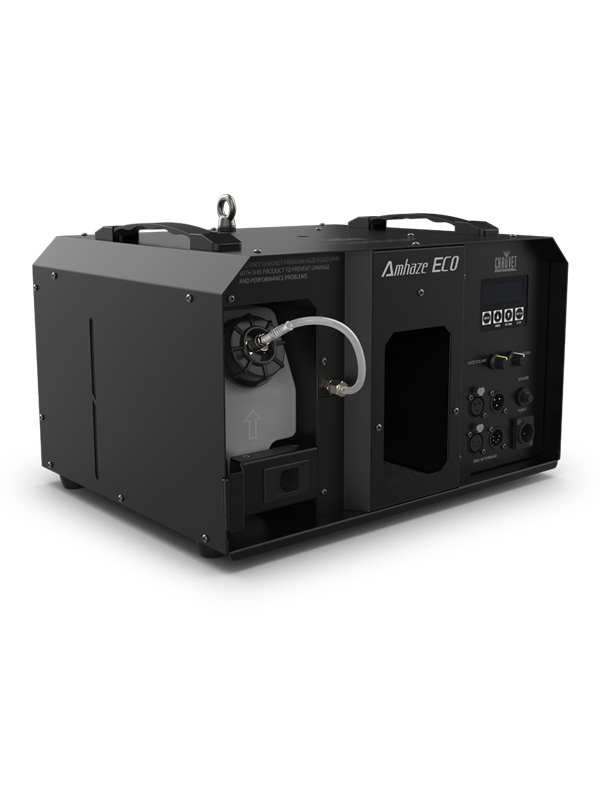

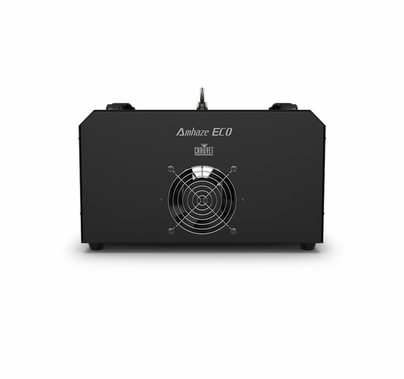

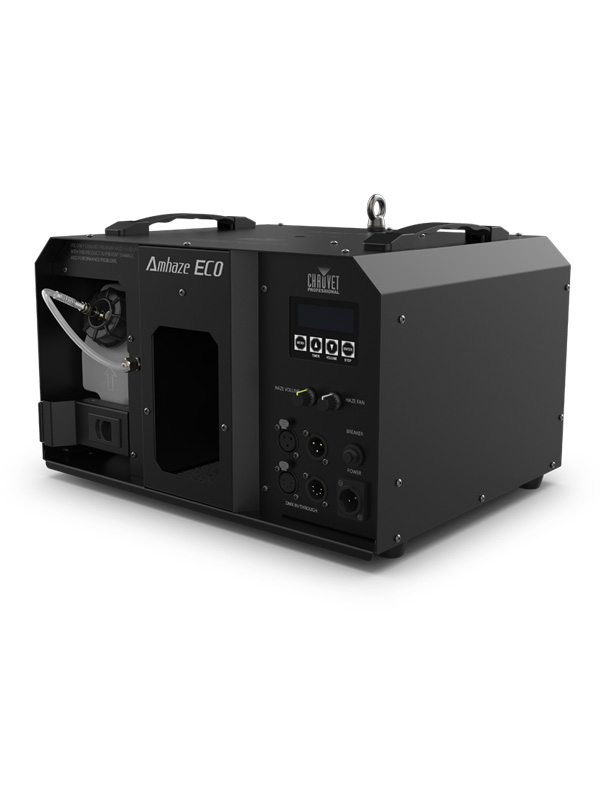

Chauvet Pro AmHaze Eco Hazer
Amhaze Eco is a professional water-based haze machine that delivers high output while utilizing economic fluid consumption. With a rapid 30-second heat up time, and continuous output that doesn’t require any reheating, you can quickly get the maximum output of 120 cfm with a single fluid container lasting you over 8 hours. Easily control the output and fan speed via DMX or on the onboard control knobs. Amhaze Eco comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine. Amhaze Eco combines high output with efficient operation for a complete atmosphere solution for medium to large venues.
WHAT'S INCLUDED
- Amhaze Eco
- Seetronic Powerkon IP65 power cord
AT A GLANCE
- Professional water-based haze machine
- 30-sec heat up time nearly eliminates wait time for operation
- Continuous output with no reheating required
- Tour-ready with an M12 threaded insert for truss clamps
- Efficient fluid consumption lasts more than 8 hours on a single fluid container
- Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs
DYNAMIC EFFECTS
- Fan Speed: 120 cfm
- Low Fluid Shutdown: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
- Dimensions (shipping size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
- Weight: 25 lb (11.4 kg)
- Weight: (shipping weight): 28.8 lb (13.5 kg)
- Threaded Bolt: M12
- Exterior Color: Black
- Tank Capacity: 0.92 gal (3.5L)
- Fluid Consumption: 7.5 ml/min (0.12 gallons/hour)
- Maximum Run time: >7.5 hours @ full volume
- Rest on the floor or mount in the rig with the M12 threaded insert for truss clamps
CONNECTIONS
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 3
- Modes/Personalities: 1 personality
- On-Board Control: Yes
ELECTRICAL
- Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
- Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
- Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
- Heat-up Time: 30 sec
CERTIFICATIONS / QUALIFICATIONS
- MET, CE
- MET Listing Number: E115095
- US Safety: UL 499
- Canadian Safety: CSA C22.2 No. 64-10
- IP Rating: IP20, dry location
- Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
- Maximum exterior surface temperature (Tc): 127 °F (53 ℃)
REQUIRED ACCESSORIES
- Compatible Mounting Options: M12 Bolt/Clamp
- PHF Haze Fluid
OPTIONAL ACCESSORIES
- Clamps
- Neutrik® powerCON® cables
- DMX Cables
