PRODUCT DESCRIPTION

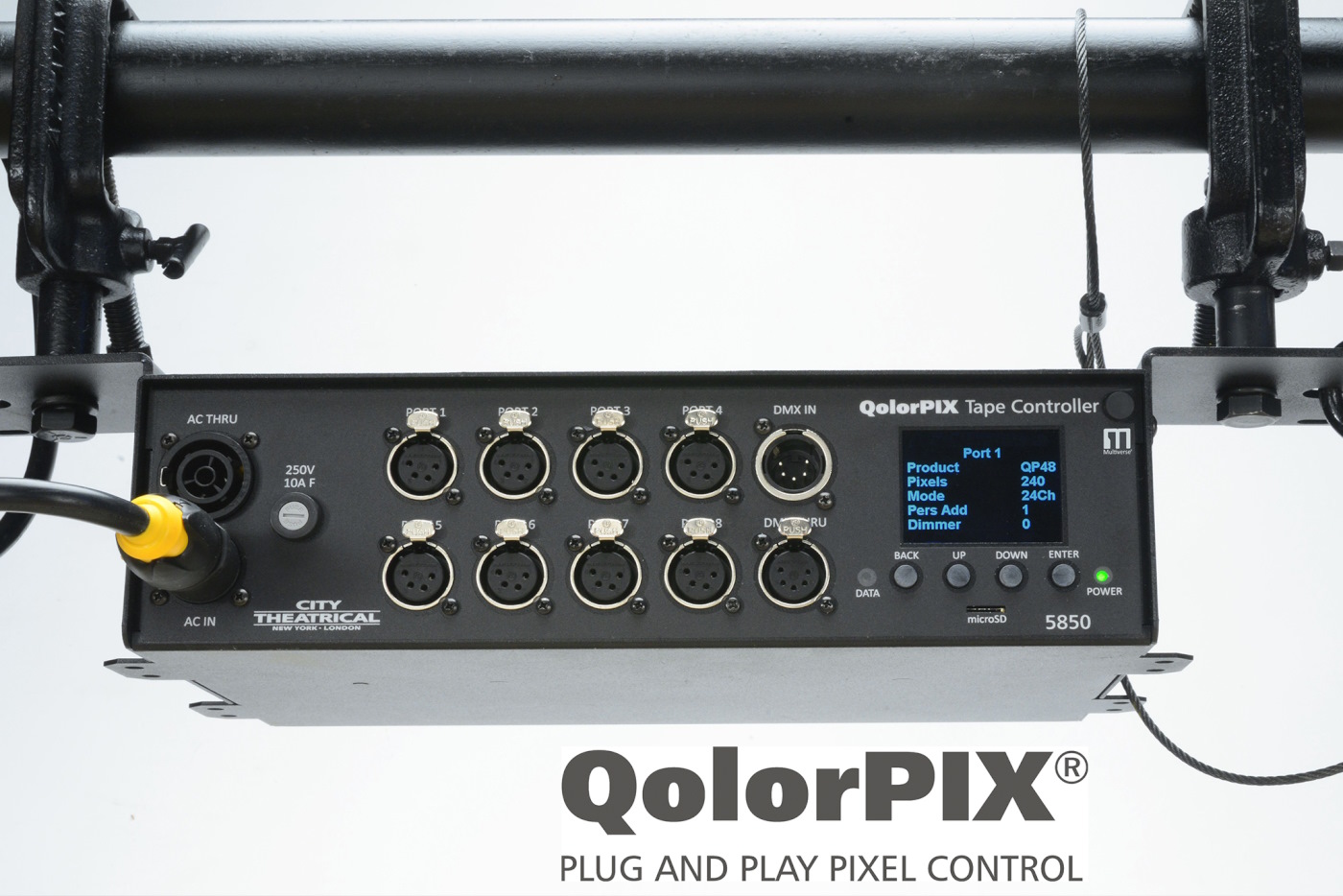

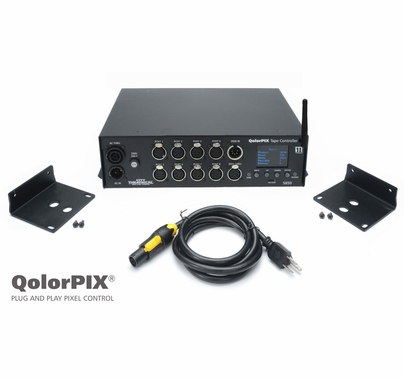

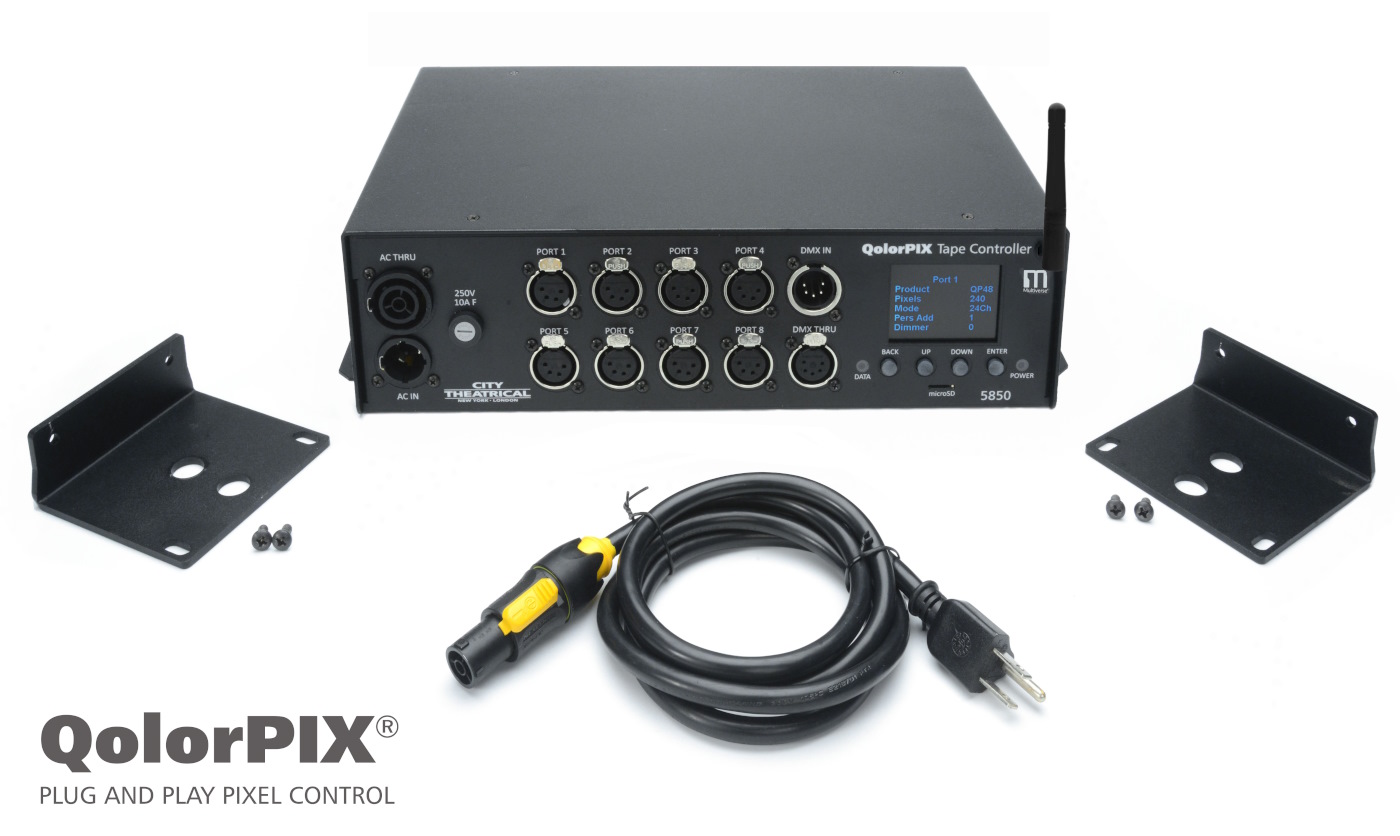

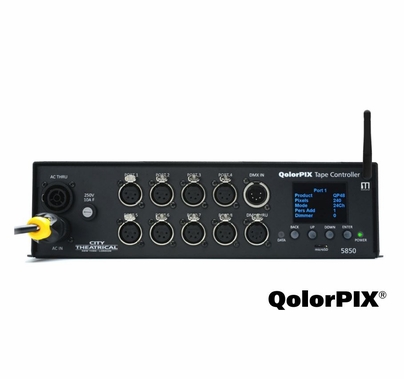

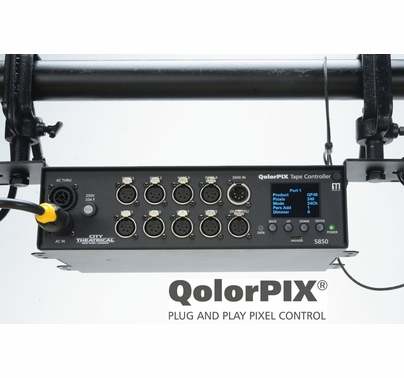

City Theatrical QolorPIX® LED Tape Controller
Discover the QolorPIX® Tape Controller with Eight Outputs (P/N 5850) by City Theatrical. This controller is preconfigured with personality profiles, offering thousands of dynamic effects on QolorPIX Pixel Controlled LED Tape using minimal DMX channels. Create chases, fades, scrolls, bursts, and more in minutes.
Key Features:
- Supports ANSI E1.11 DMX512-A
- Compatible with QolorPIX LED Tape
- Eight output ports for individual pixels
- Firmware is user-updateable through micro-SD card slot
- Controllable via DMX512-A, recordable presets, and test routine
- Integrated power supply, test function, and flicker finder
- Wireless DMX control using Multiverse® technology
- Eight Ports: Accommodates a total of 40 meters of QolorPIX Pixel Controlled LED Tape.
- User-Friendly Interface: Easily change mode, pixel length, dimmer, personality start address, strip type, fixture ID, and direction.
- Integrated Power Supply: Ensures convenient power availability for your LED tape.
- Test Function: Includes a built-in test function for easy functionality checks.
- Flicker Finder: Simplifies troubleshooting by identifying and addressing flickering issues.
- Wireless DMX Control: Utilizes state-of-the-art Multiverse® technology for seamless wireless control.
Physical Specifications:
- Length: 34.6cm (13.6 in)
- Width (including connectors): 20.3cm (8.0 in)
- Height: 8.9cm (3.5 in)
- Weight: 2.61kg (5.75 lbs.)
- Construction: Nema 1 IP 20 steel enclosure
- Number of Outputs: 8
- Output Connectors: 4-Pin XLRF
- Input Power Connection: PowerCON
- DMX Connectors: 5-Pin XLR; Built-in Multiverse wireless DMX receiver
Electrical Specifications:
- Max Pixels per Output: 320
- Voltage: 85-264 VAC
- Max Cable Distance to LED Tape: 10m (32.8 ft)
- Total Output (Watts): 600W
Product Information:
- Use Environment: Indoor
- Compliance: ETL, CE, RoHS, FCC
