PRODUCT DESCRIPTION
Exalux Control One Rental Kit Wireless DMX Controller CRMX Lumen Radio

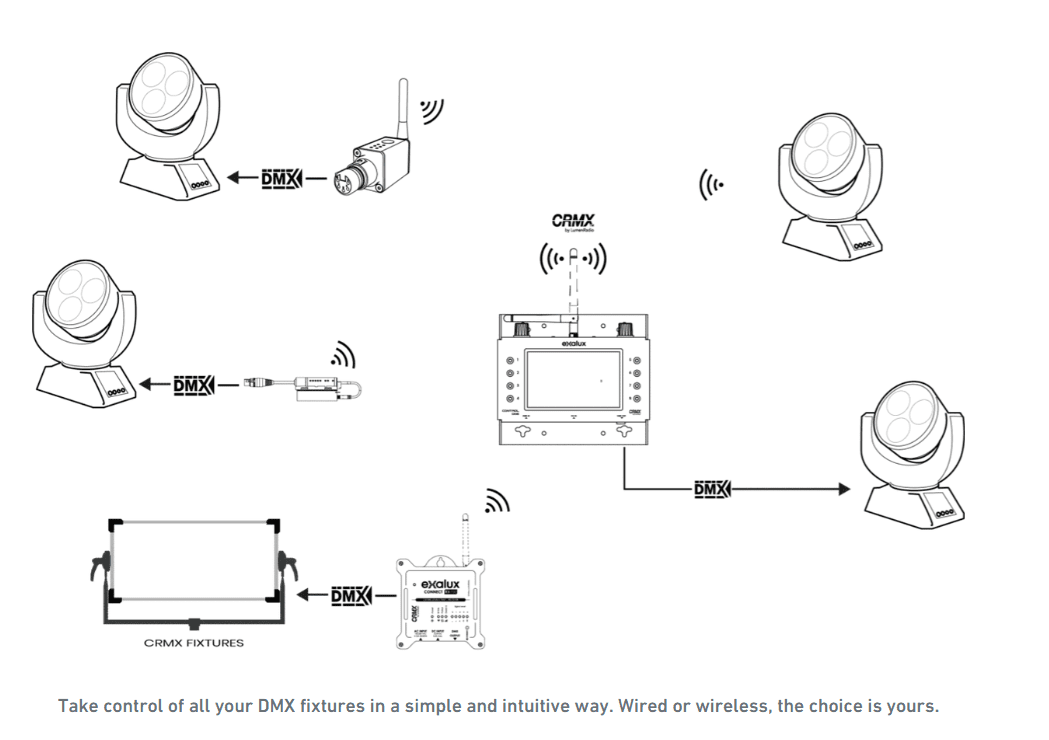

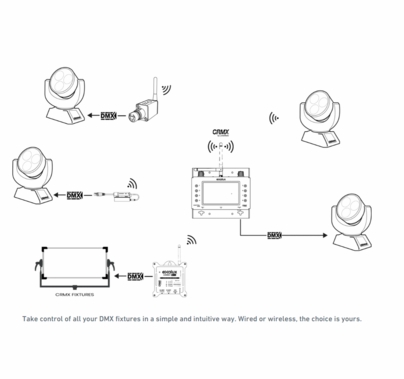

EXALUX™ CONTROL ONE RENTAL is an all-in-one wireless DMX controller making it possible to remotely control the most popular DMX fixtures in a simple and intuitive way.

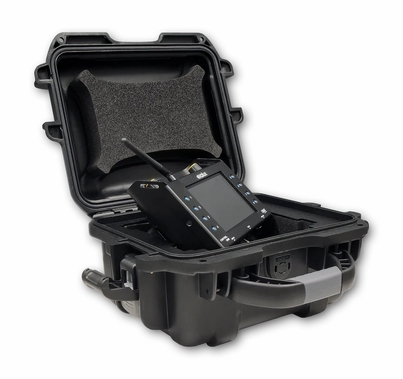

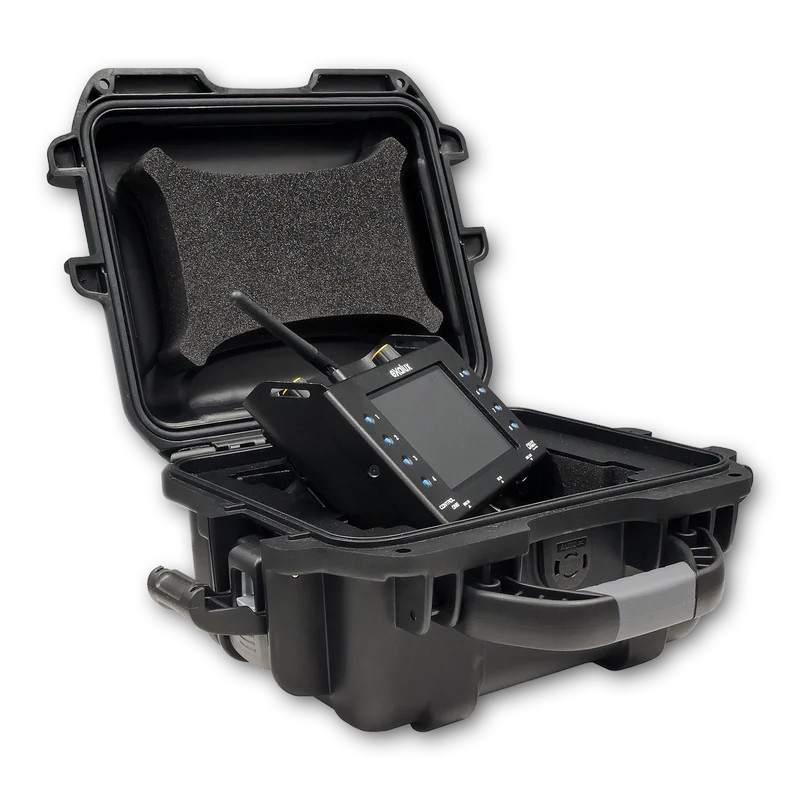

The unit comes with a rugged carrying case, a tripod holder, a protective glass and a Vlock socket to power the unit with a V-lock battery (battery not included).
CONTROL ONE RENTAL is your ideal companion to control all your DMX devices on cinema sets.
Features
- The Swiss army knife of DMX
EXALUX™ CONTROL ONE is the perfect tool for setup days when using DMX controlled elements. The unit features 5 Apps in an elegant and compact enclosure.With CONTROL ONE, all the DMX tools you need are at your fingertips!
- Control in Motion
TOUCH 5 HMI combines efficient tools in an elegant and user-friendly user interface.
- Hybrid controls
Save your settings into the 8 available memories and reload them with a single touch of the screen.
- DMX RECORDER
EXALUX™CONTROL ONE features a small DMX recorder capable of recording sequences of 80 seconds from the DMX input. This makes it possible to record the most useful effects and play them back later on set.
- Wide Range Power Mode
Thanks to its wide supply range (+5 to 28VDC), EXALUX™ CONTROL ONE can be powered from a V-Lock battery, an external PSU or a small PowerBank.
Switching from one power mode to another does not disconnect the DMX devices from the unit.
Technical Specifications

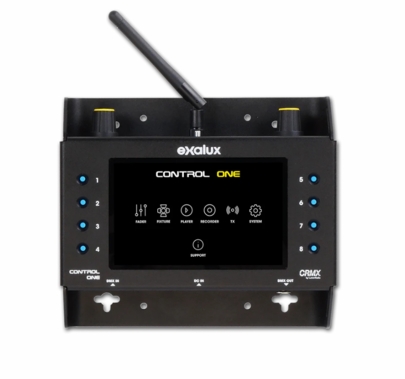

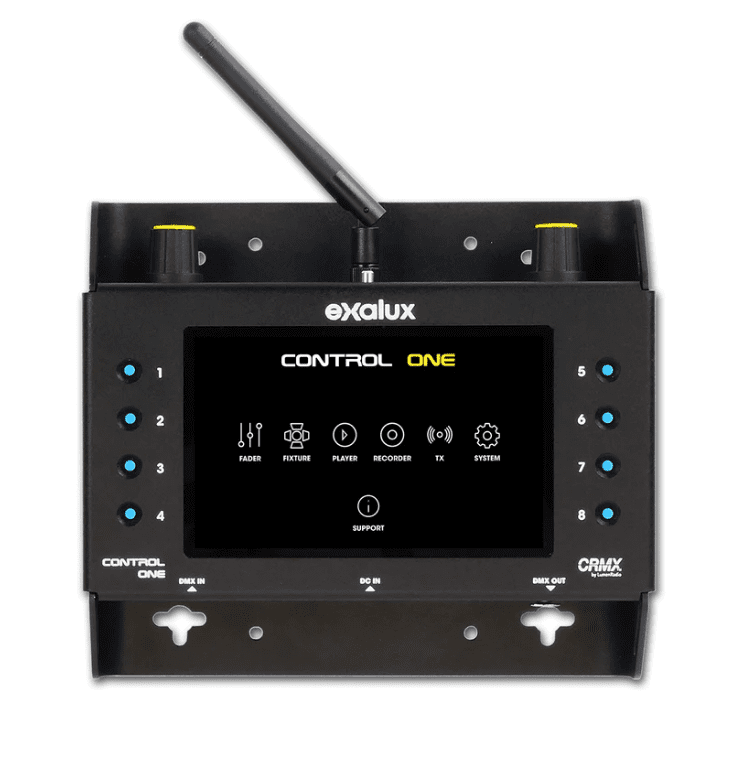

- Interface: TFT 5.0’’, 800x480 pixels, Capacitive Touch, Super bright Master & settings (knobs)Memory store/restore CRMX Link, Black-out, Lock
- Power Consumption: Min: ~2,1W (Screen Off) MAX: ~4,2W (Screen & CRMX On) STANDBY: ~0,025W
- Housing / Mounting: Aluminum, black painting
- IP Rating: IP30
- Certifications: CE, RoHS
- Weight: 700g (without battery)
RADIO INTERFACE
- Standard/technology: CRMX by LumenRadio™
- Frequency: 2,402 ~ 2,480 GHz
- Antenna: Omnidirectional 2.4GHZ 2.0dBi, SMA
- RF output: 20 dBm (100mW)
- RF modulation: GFSK
- Range: Up to 300m (depending on the transmitter and the environment)
DMX INTERFACE
- Protocol: DMX512-A
- Universe support: 1
- DMX frame rate: 0,8-830Hz
- End to end latency: < 5ms
- DMX Input: Neutrik XLR 5 pins Female
- DMX Output: Neutrik XLR 5 pins Male
OPERATING CONDITIONS
- Storage T°: Min: -30°C | Typ : 25°C | Max: +80°C
- Operating T°: Min: -20°C | Typ : 25°C | Max: +60°C
Includes
- Wireless Dmx Console Dmx 512 | 1 Universe
- Screen Protection
- V-lock Socket
- Spigot Tripod Holder
*** Vlock Battery And Power Supply Not Included
