PRODUCT DESCRIPTION

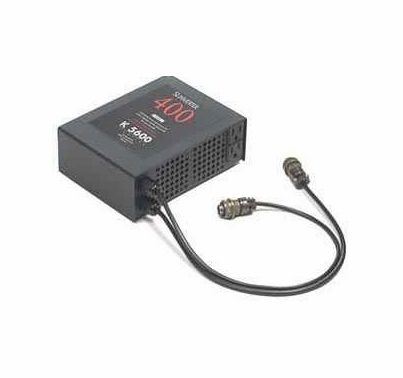

K5600 Joker 400 Slimverter 400w 30V DC A0400SL
Connect (2) 30V battery belts to the Slimverter and run a 400W HMI on Battery Power. Just plug your Joker 400W 120V AC Ballast into the Slimverter.
Input: (2) 30V Amphenol Connectors
Output: (1) 120V Edison Connector
SLIMVERTER 400This is a larger version of the preceding product designed to operate on
30 Volt batteries for TV and Motion Picture applications. The Slimverter
400 offers the very unique possibility to operate larger than 200 Watt
loads pulling on two batteries, an economical and reliable alternative
to DC electronic ballasts for the Joker 400. For a fraction of the cost
of an electronic DC ballast, the Slimverter provides our AC power
supply a square wave output tuned specifically for maximum efficiency
on limited energy sources such as NiCad batteries.
The Slimverter 400
will operate one Joker 400 HMI system for 45 minutes on two 7 Amp/hour belt or pack.
Specifications
- Input: 2 x 28-30 Volt, 2 Amphenol 2 pin (A-/B+)
- Output: K5600 Ballast (170 Volt Square Wave 60 Hz) for electronic
ballasts only, no inductive load (magnetic ballasts).
- Power: 400 Watt
- Finish: Black epoxy powder coated.
- Weight: 3.0 lbs
