PRODUCT DESCRIPTION

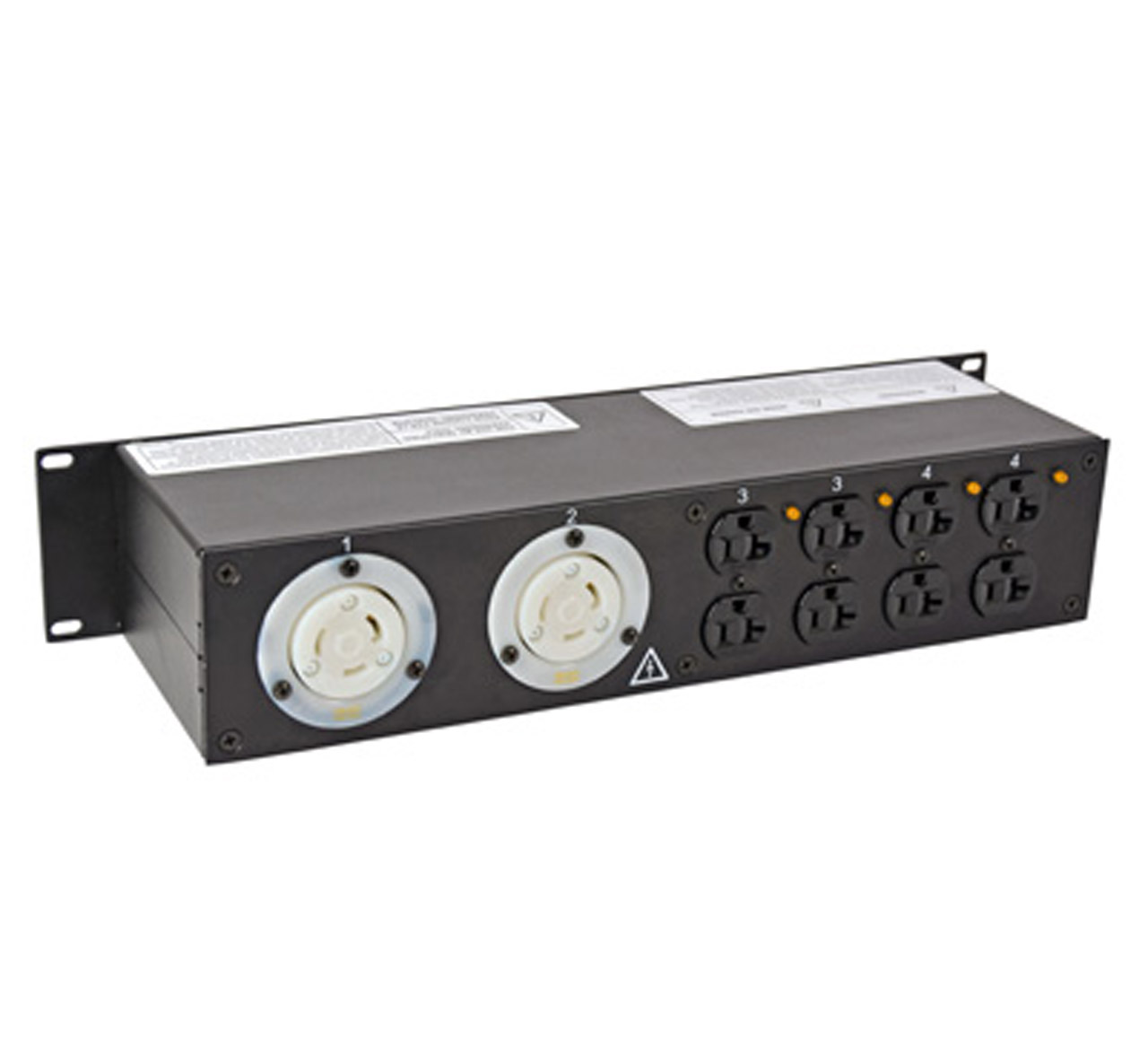

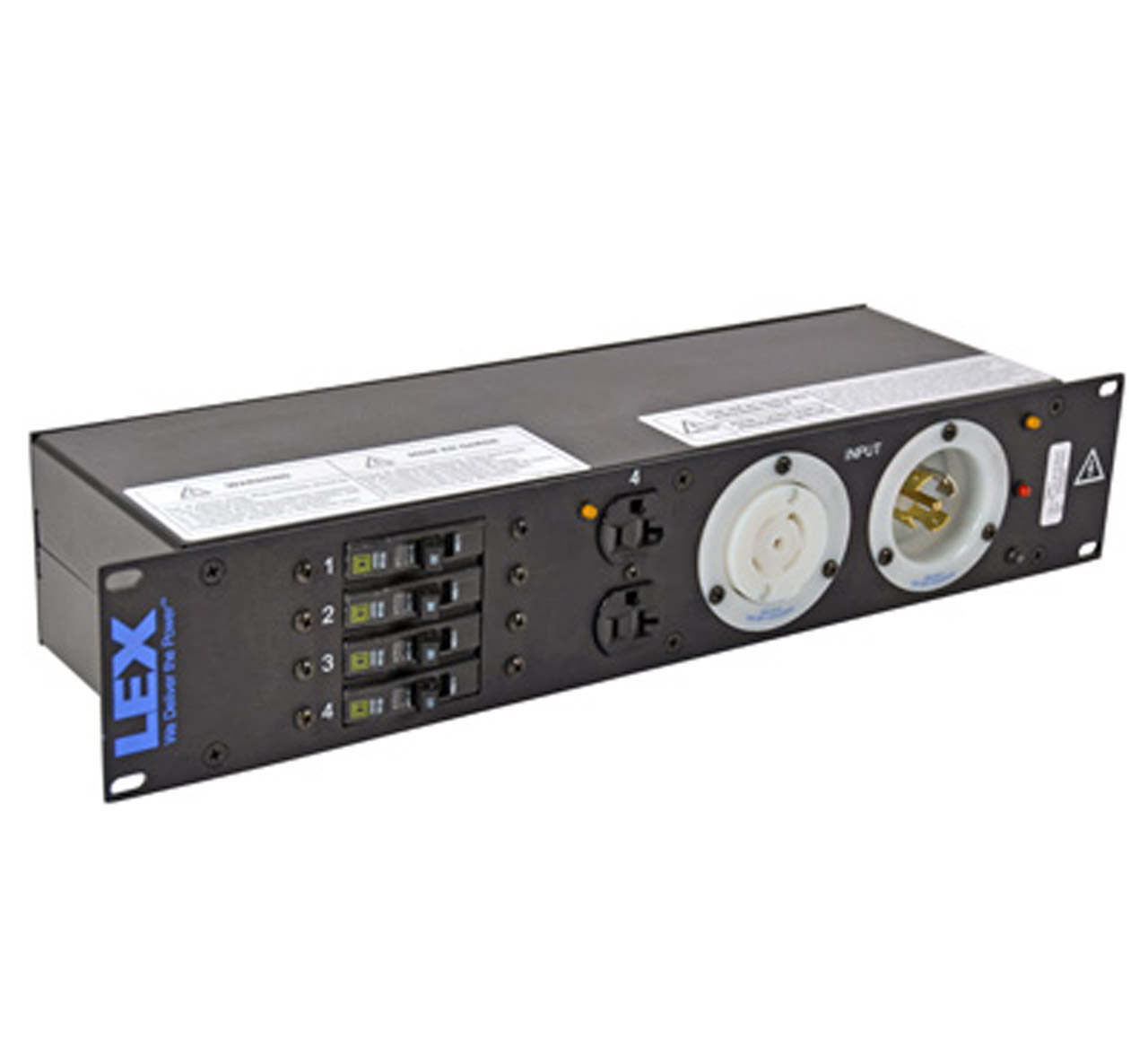

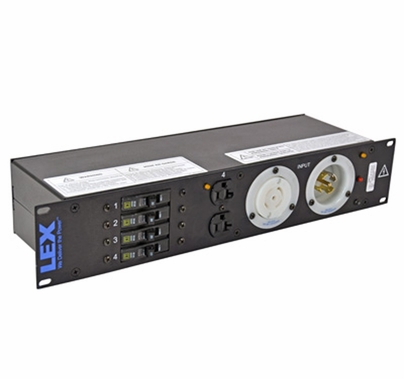

Lex 2RU Rack Mount Power Distro L21-30 In/Thru to (2) L5-30 and Duplexes PRM2IN-5CC2DC
Description
30A 120/208Y VAC, (1) NEMA L21-30 Locking Male (Inlet) to (2) NEMA L5-30 Locking Receptacles (Outlets) and (5) NEMA 5-20 (Edison) Straight Blade Duplex Receptacles (Outlets), Feed Thru, Rack Mount Box.
Specs
- Markets: Entertainment
- Rating: Indoor
- Enclosure: Rack
- Input: NEMA
- Output: NEMA
- Amperage: 30A
Features & Benefits
- Modules mount in standard 19" permanent and rolling racks
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
Markets Served
- Audio, Concerts, Live Events, Motion Picture and Television Production, Theatrical
Technical Information
- Rating: 30 Amp, Three Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC, 60Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (2) NEMA L5-30, 30 Amp, 2-Pole, 3-Wire, 125 VAC locking receptacles, panel mount; (5) NEMA 5-20 (Edison),
- 20 Amp, 2-Pole, 3-Wire, 125 VAC, straight blade duplex receptacles, panel mount
- Overcurrent Protection: (2) 30 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers; (2) 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
- Enclosure Type: Rack Mount Box
- Dimensions: 5.50"L x 19.00"W x 3.50"H
- Weight: 8.0 lbs
Agency Approval: cETLus Listed
