PRODUCT DESCRIPTION

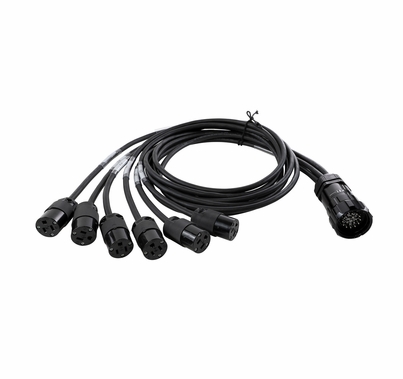

Break-Out, Male LSC19 to Female Edison, 6ft
15A 125 VAC, (1) LSC19 19-Pin Male (Plug) to (6) NEMA 5-15 Females (Connectors), #12/3 Type SJOOW Cord, Adapter.
Features & Benefits<,/h3>
- Break-out converts a 6-circuit multi-cable to (6) Edison 5-15 female connector bodies so that equipment can be plugged in
- Cables feature Lex Products’ exclusive LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
- Helps eliminate broken conductors and loose or damaged ground rings
- Prevents misalignment of male and female circuit conductors
- Machined aluminum LSC19 housing with hard black anodized finish provides enhanced durability
- Silver plated brass contacts for high conductivity
- Jr. Hard service cord is flexible and compact
- All black construction blends into scenery and is ideal for stage or studio lighting applications
Markets Served
Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Technical Information>
- Rating: 15 Amp, 125 VAC, Single-phase, 2-Pole, 3-Wire
- NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
- Male Plug: (1) 20A 19-Pin Male (Plug), Black
- Cable/Cord: (6) #12/3 Type SJOOW, Black
- Female Connector: (6) 15A NEMA 5-15 Female (Connector), Black
