Lex Products 100-250 Amp Adjustable Breaker Disconnect Box Bull Switch

PRODUCT DESCRIPTION

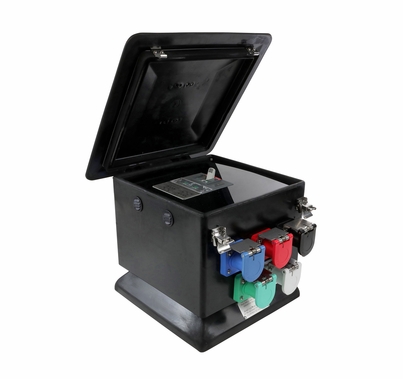

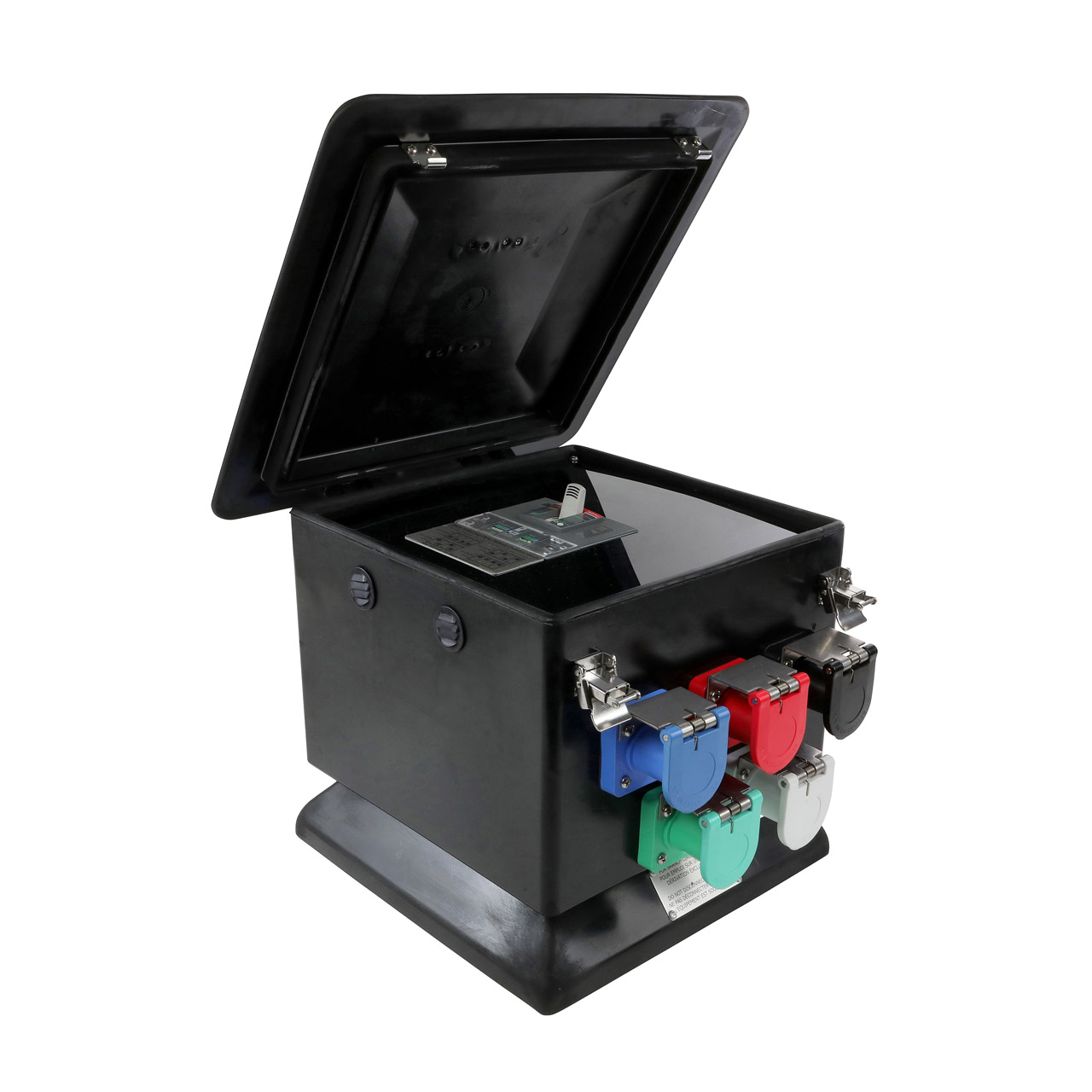

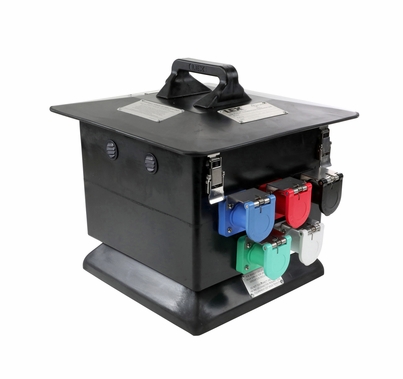

Lex 100-250 Amp Adjustable Breaker Disconnect Box Bull Switch

***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.***

Product Line: PowerHOUSE Portable Distribution Boxes

Description: 100-250 Amp Cam Input and Feed Thru Adjustable Main Circuit Breaker Box.

Also available in 160-400 A version.

Catalog Number: DB250LP-AW-S3

Markets Served: Live Events, Concert Touring, Motion Picture Filming, Industrial, Military, Shipyards

Application: Provides a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes.

Features & Benefits:

• Breaker is adjustable from 100 -250 Amp, reducing the number of inventory items needed. Can protect a variety of cable sizes.
• Breaker is electronic with no thermal element. Unit will not trip due to ambient temperature.
• Extremely compact for convenient portability.
• 20 A circuit breaker protected 125 VAC duplex convenience receptacle to power your choice of devices.
• Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
• Breakers mounted under hinged lid for protection.

  Specifications:


• Input: (5) 16 Series Cam-type male panel mount with Covers 250A
• Feed Thru: None
• Output: (5) 16 Series Cam-type 250-100A male panel mount with Covers Three Phase 600Vac
• Overcurrent Protection:
  • (1) 100 A - 250 A electronic main breaker with adjustable setting
  • (1) 20 A, 1-pole branch rated circuit breaker
• Rating: 250A, Three Phase, 600Vac
• Overall Dimensions: 14" L x 14" W x 13" H
• Weight: 38 lbs


• Agency Approvals: Yes
• Enclosure Type: Heavy Duty Molded Rubber
