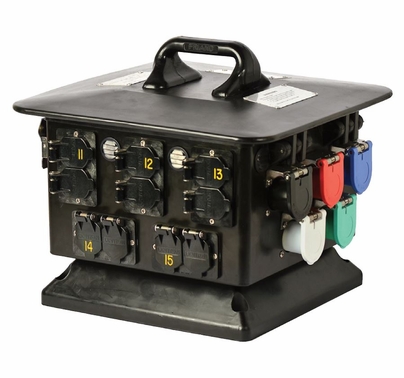

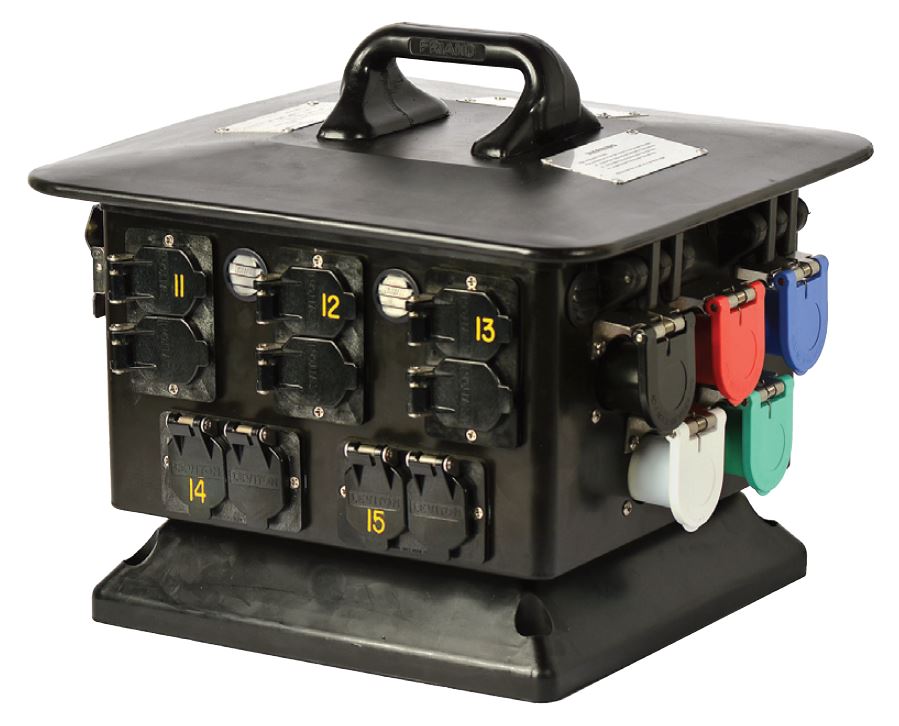

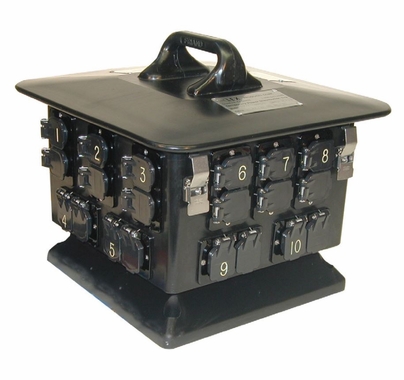

Lex Producs Distribution Box Outdoor Pagoda 100A / 3 Phase (15) 20A Duplex Weatherproof

PRODUCT DESCRIPTION

Lex Products Electrical Power Distribution Box, Outdoor, Pagoda, 100A / 3 Phase to (15) 20A Duplex, Weatherproof

***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.***

**Please choose the direction of how you would like your cam connectors installed**

Product Line: 100 Amp Portable Distribution Boxes

Description: 100 A, 3 Ø Pagoda (A40) to (15) NEMA 5-20 Duplex Receptacles NEMA 3R

Catalog Number: DB100NP-ABB-S3

Markets Served: Live Events, Concert Touring, Convention Centers, Motion Picture Filming, Industrial, Military

Application: The most versatile PowerHouse. Fed from a generator or panel, this box can accept up to 30 NEMA 5-15 Edison cords in an extremely compact package.

Features & Benefits

• Heavy duty molded rubber enclosure is fully insulated, resistant to shock impact, corrosion and weather.
• Convenient two circuit distribution for events.
• Extremely compact for portability.
• Breakers mounted under a hinged lid for enhanced safety and protection.

Specifications

Rating: 100 A, 3 Phase, 120/208 VAC

Output: (15) NEMA 5-20, 20 A, 2P3W, 125 VAC duplex receptacles

Overcurrent Protection: (15) 20 A, 1-Pole Branch Circuit Rated Breakers

Overall Dimensions: 14-1/2"L x 14-1/2" W x 14" H

Weight: 32 lbs

Agency Approvals: Yes

Enclosure Type: Heavy Duty Molded Rubber
