Lex-Loc Male 20A Edison Plug Perpendicular Blades, Black, Cable Mount

PRODUCT DESCRIPTION

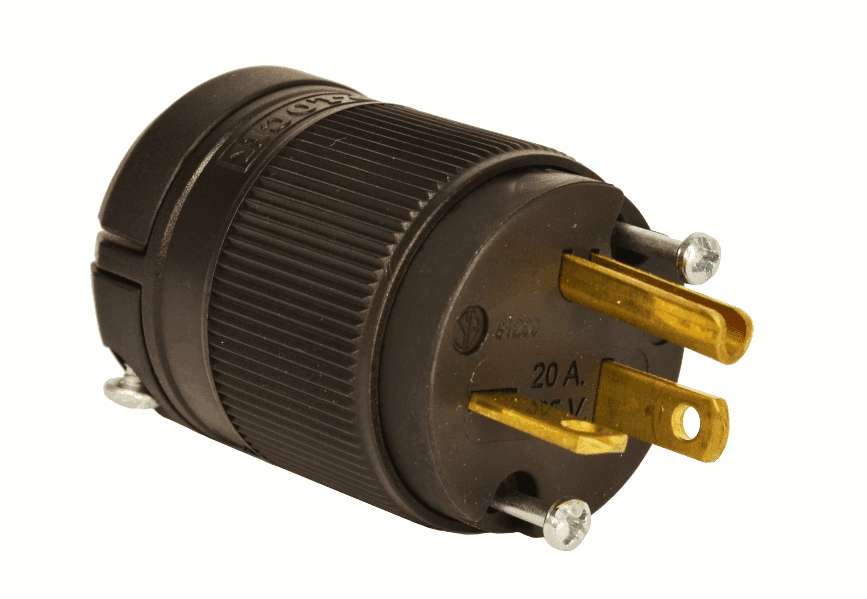

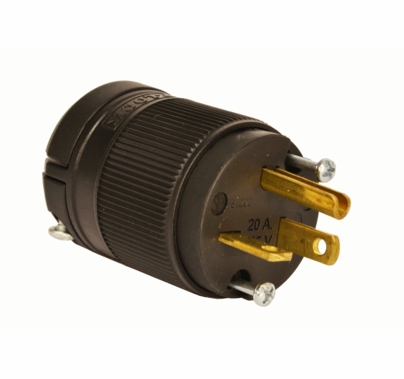

Lex-Loc Male 20A Edison Plug Perpendicular Blades, All Black, Cable Mount for Extension Cords

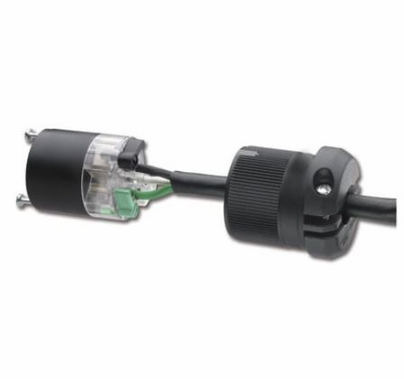

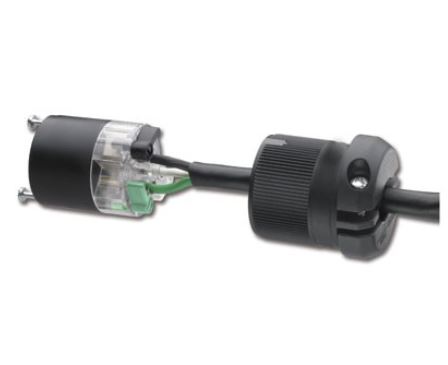

The Lex-Loc requires no tools to install wires into plug. A simple lever actuated cage clamp provides a more secure connection than old fashion screw terminals and cannot loosen. Springs inside provide constant pressure so wires always stay connected. Simply strip wire, insert into connector, and lower the cam lever by hand... Fast and Easy!

Description

20 Amp, 125 VAC, 2 Pole, 3 Wire, NEMA 5-20 LexLoc Edison Plug.

Catalog Number: X520P

Markets Served

Theatrical, Motion Picture, Live Events, Industrial, Military Application

Extension cords; New or replacement appliance, lamp and luminaire plugs.

Features & Benefits

• Cage clamp terminations cannot loosen, eliminating the main cause of device failure
• Does not require tools; simply finger-open and close the terminals
• Two fast-travel assembly screws save labor.
• All-black color blends into scenery.
• External cord clamp provides enhanced strain relief for a wide range of cord sizes.

Specifications:

Rating: 20 Amp, 125 VAC

Agency Approvals: UL Listed

DESIGNED FOR DURABILITY

Lex-Loc? devices meet or exceed Hospital Grade U.S. tests. Devices conform to U.S. Standards for hospital equipment, #498 and #544, including:

• Abrupt plug removal (parallel to wall) test
• Ground contact temperature test
• Ground resistance test
• Grounding contact overstress test
• Assembly security test
• Mold stress relief test
• Crush test
• Cord grip strain relief tests
• Static cord pull test
• Rotary cord pull test
• Impact resistance test
• Mechanical drop test

CONSTRUCTION

Housing and Body: Nylon ? Tough and resistant to a wide range of chemicals. UL Recognized for 125?C continuous use. UL 94V-2 Flammability Index. Beveled design to resist snagging. Blades and Contacts: Solid brass for excellent conductivity Terminal Cover: Clear polycarbonate ? terminals visible Assembly Screws: Two U-drive combination slot/crosshead

MECHANICAL


Accommodates 18/3 SJ through 10/3 S cable
Cord Accommodation (with inserts): .300''- .430''
Cord Accommodation (inserts removed): >.430''- .655''

ELECTRICAL


Dielectric Withstand Voltage: >3,000V
Heat Rise: Maximum 30?C after 100 cycles at 150% of rated current
Current Interrupting: Yes

U.L.Listed File E57672

C.S.A.Cer tified File LR81290

Lex-Loc Male 20A Edison Plug Perpendicular Blades, Black, Cable Mount
