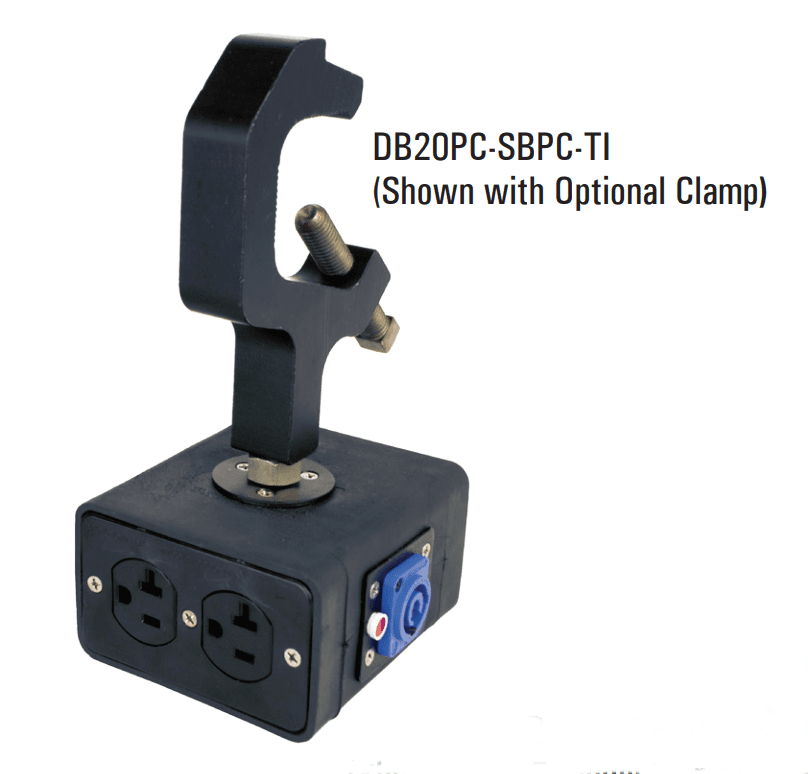

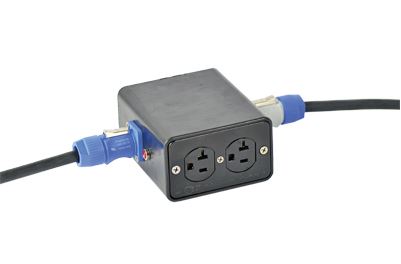

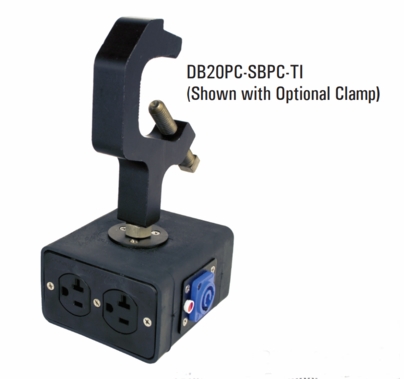

Lex Products 20A Quad Box with PowerCon to Edison w/ Threaded Insert

PRODUCT DESCRIPTION

Lex Products 20A Quad Box with PowerCon to Edisons with Feed Thru and Threaded Insert

Description:

20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, Quad Box Enclosure, PowerCON inlet to (2) NEMA 5-20, 20 Amp duplex receptacles. Feed Thru. NEMA 1 Indoor.

Application:

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. The box enables the user to create receptacle stringers using extensions of various lengths. Features a threaded insert for use with optional "Get a Grip Clamp" when hanging from lighting grid or truss.

Features & Benefits:

• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
• Compact and convenient way to place 20 Amp duplex receptacles where they are needed
• Feed thru option allows multiple boxes to be placed along the same feed

Specifications:

• Rating: 20 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, PowerCON inlet
• Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
• Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, PowerCON outlet
• Dimensions: 4.7in L x 2.5in W x 4.2in H
• Approximate Weight: 1.5 lbs
