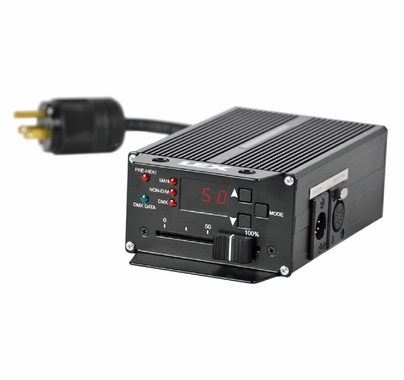

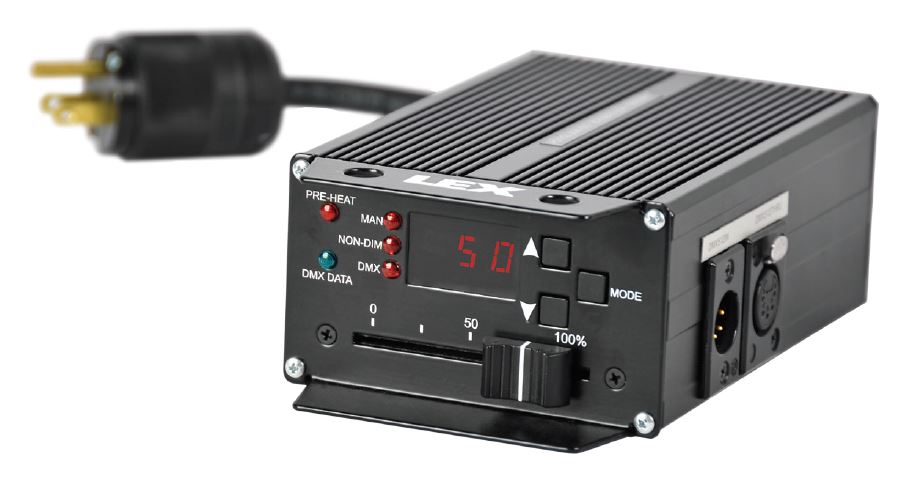

Lex Products Slim Dimmer Plus 1.8kw Portable Single Channel w/DMX

PRODUCT DESCRIPTION

Lex Products Slim Dimmer Plus 1800W Portable Single Channel with DMX LDP1.8K

The Slim Dimmer Plus can be used in similar applications to the Slim Dimmer, namely as a intensity balancing tool for location lighting kits, to dim individual entertainment lighting fixtures or for retail lighting. The addition of DMX control means that the Slim Dimmer Plus has the capability of being controlled from a lighting console as a part of a larger or more sophisticated lighting system.

Product Line: Portable Dimmers

Description:

Slim Dimmer Plus is a compact, full featured 1800W dimmer. It can be used in situations where one dimmer or one more dimmer is needed.

Catalog Number: LDP1.8K

Markets Served: Entertainment, Motion Picture and Television Production

Application:

Use one or more Slim Dimmer Plus to balance location lighting or to dim entertainment lighting. Can also be used in situations where "one more dimmer" is needed.

Typical Uses:

The Slim dimmer Plus can be used as a part of a location lighting kit, to balance the lighting from several sources, controlled locally. It can be used to augment an entertainment lighting system, and be controlled from a lighting console.

Features & Benefit:

Controllable using both DMX512 and a front panel fader for maximum versatility

Large display showing dimmer level and DMX address for easy setup

Durable, compact construction for long life and relaibility

Easily hangable with a variety of hanging options

Specifications:

Rating: 15A, 120VAC, 60 Hz, 2P, 3W

Input: 5-15 Edison on an 18" 12/3 SO cable

Output: Single 5-15 outlet

Maximum Load: 1800W

Minimum Load: 60W

DMX Connectors: (1) DMX 5 Pin Input, (1) DMX 5 Pin Output

Overcurrent Protection: 15A push to reset breaker

Overall Dimensions: 7.3" L x 4.15" W x 2.5" H

Weight: 2.1 lbs.

Agency Approvals: cULus Listed - Approved for use in the U.S. and Canada

Rating: 15A, 120VAC, 60 Hz, 2P, 3W

Enclosure Type: Metal
