PRODUCT DESCRIPTION

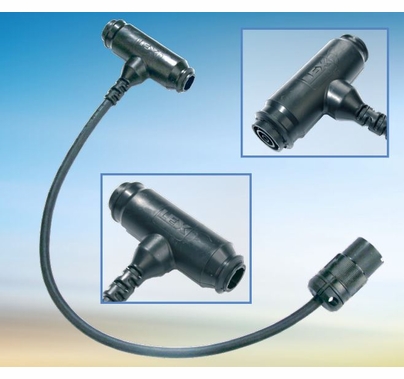

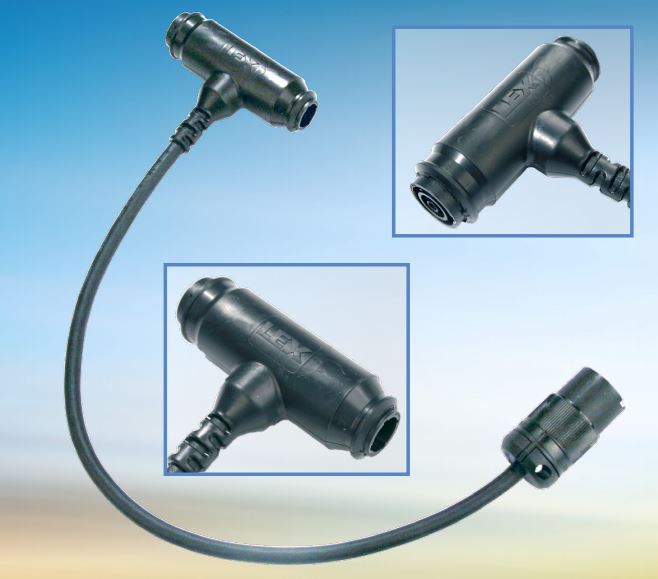

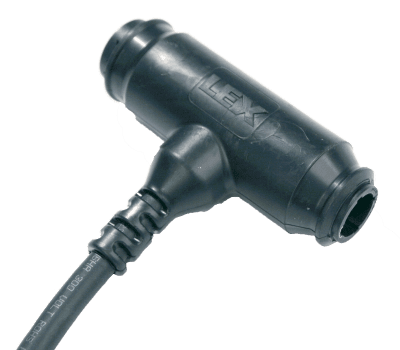

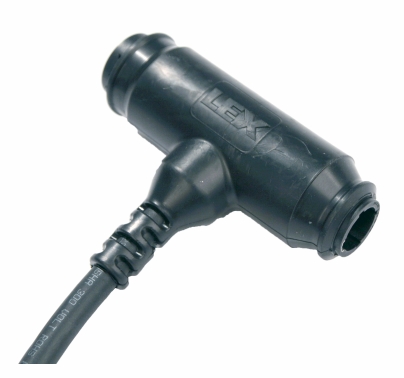

Lex TRUE1 Tee 18" Neutrik TRUE1 Inlet/Feed Thru to Edison 20A Connector
Typical Application
Provides a single power circuit for convenient connection
points in a portable configuration. The ‘plug-and-play’ topology
eliminates the hard-wiring of boxes on fixed distances
between devices. Power distribution layouts are configurable
at the customer site. Ideal for placement on suspended pipes
over the stage and on catwalks over the audience. Devices
are configurable through the selection of cable length and
connectors used.
Markets Served
Theatrical, Concert, Touring, Live Event - Designed for where
portable devices are used
Features & Benefits
- A 'plug-and-play' system with building block modularity
provides adaptability and flexibility to construct thousands
of unique system variations using a few basic components,
greatly reducing installation time and cost
- Molded, non-conductive material construction creates a fully
insulated assembly, resistant to shock, impact and corrosion
ensuring years of trouble-free service
- Finished solution is compact and lightweight
- Power inlet and feed-thru use industry-standard Neutrik®
powerCON TRUE1 connections ensuring compatibility with
existing equipment
- #12/3 AWG SJOOW cable with a rating of 20 Amps
- Feed-thru design allows for multiple devices to be supplied
from a single source
- Numerous connector types are available to suit most
applications
Specs
- Rating: 20 Amp, 120 VAC Maximum
- Enviromental Rating: NEMA 1 Indoor
- Input: Neutrik powerCON TRUE1 120 VAC,
plug (male)
- Output: Edison Female 20A Lex Loc
- Feed Thru: Neutrik® powerCON TRUE1 120 VAC,
connector (female)
- Cable Specification: #12/3 AWG SJOOW cable
- Length: 18” Pigtail
- Overcurrent Protection: None
- Dimensions 22.00” H x 4.63” W x 1.50” D (55.88 cm H x 11.76 cm W x 3.81 cm D)
- Weight 9.50 oz. 269.32 gm
