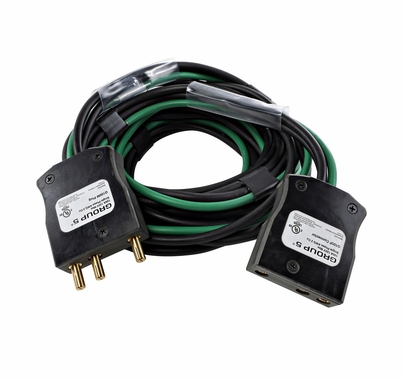

Lex 100A Bates 50ft Stage Pin Extension Cable BEH206L-50

PRODUCT DESCRIPTION

Lex 100A 125V Bates 50ft Stage Pin Extension Cable BE206L-50

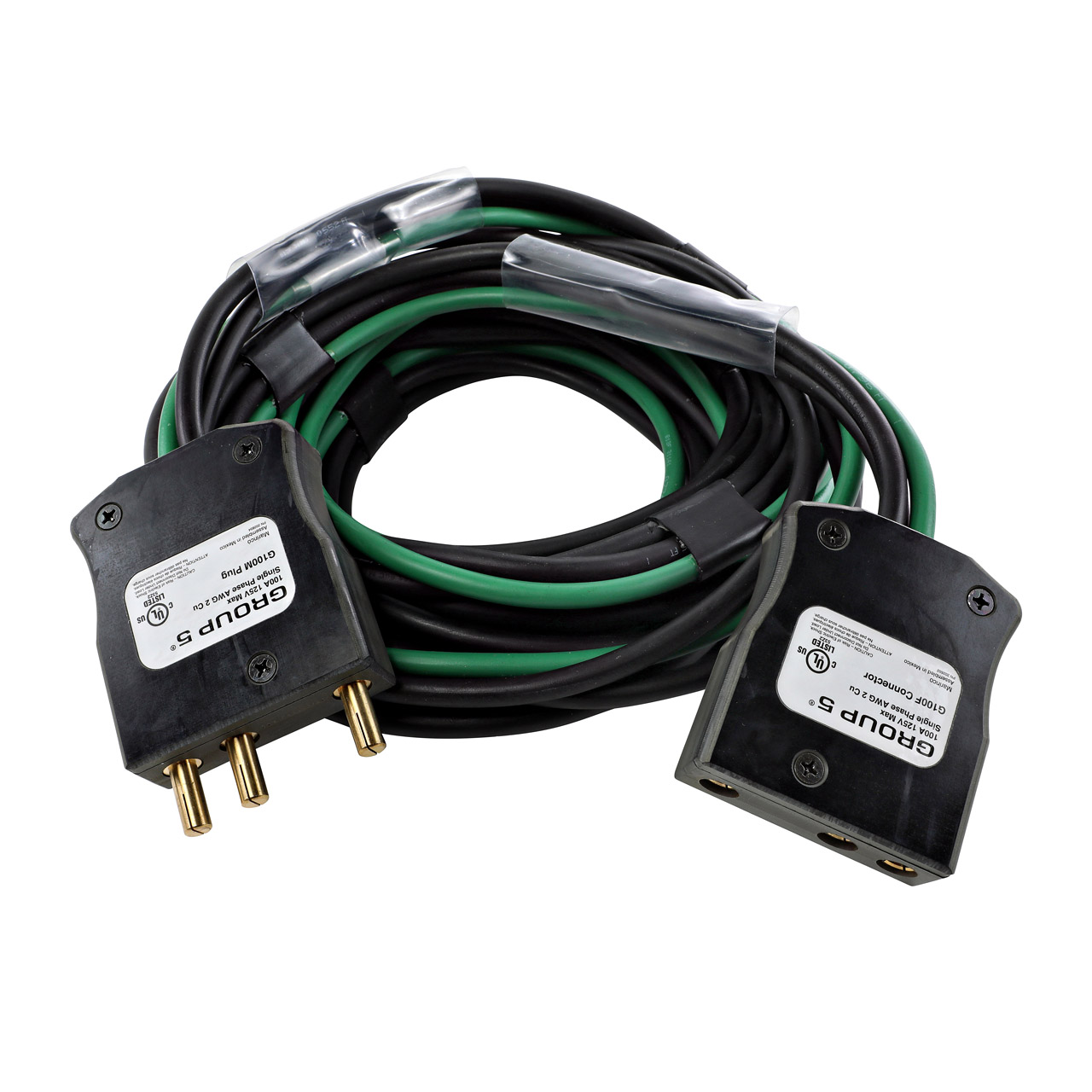

100 Amp Studio Pin Extensions are made with single conductor Entertainment Cable (Type SC) banded every 2 feet with heavy duty sealant type heat shrink tubing.

This extension cable from Lex is designed for high-performance applications in the entertainment industry. It features the following specifications:

• Amperage: 100A
• Voltage: 125V
• Connector Type:100A Stage Pin Bates
• Length: 50ft
• Connector Model: BE206L-50

The cable includes 2x #4AWG and 1x #6AWG Green Type S.C. Entertainment, with both male and female connectors being Lex 100A 125V 2P3W Studio Pin (Bates).

100 Amp and 60 Amp Extensions are available with green #6 S.C. as the ground conductor.

This extension cable meets the high standards required for professional studio and production applications.

Power Distribution Extensions - Features & Benefits

• Extensions are made with single conductor Type SC cable and are banded every 2 feet with heavy-duty type heat shrink tubing.
• Extensions feature stage pin connectors made from Super-Tough Nylon.
• Double set screw terminals for secure terminations.
• Stage pin connectors are UL Listed.
• These extensions are used to feed 100 Amp distribution boxes commonly found on set.

Markets Served - Motion Picture and Television Production Technical Information

Rating: 100 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz

Male Plug: (1) Hubbell 100A Stage Pin (Bates) Male (Plug), Black

Cable/Cord: (2) #4 Type SC Black and (1) #6 Type SC Green Cables, Banded

Length: 50'
