Socapex Tester Lex LSC 6 Circuit Live Tester LT-19P

PRODUCT DESCRIPTION

Socapex Tester Lex LSC 6 Circuit 19 Pin Live Tester LT-19P

Socapex Tester Tests LIVE 19-Pin six-circuit, extensions and dimmer outputs.

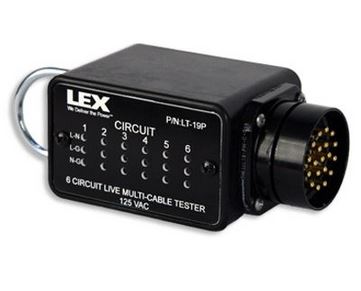

The LSC 6 Circuit Live Multi-Cable Tester is the first portable 19-pin tester that tests and diagnoses cabling problems while the cable is still installed. Unlike conventional 19-pin testers which require cables to be tested from both ends, the tester plugs directly into the end of any energized, dimmed or undimmed six-circuit cable.

Typical Applications: Tests live 19-Pin six-circuit, extensions, and dimmer outputs used in theaters, live events, concert touring, motion picture filming, wherever six-circuit cable is used.

Dimensions: 5.5" L (with connector) x 2.47"W x 2.95"H

Rating: 120 VAC

Features & Benefits:

• Tests LIVE 120 VAC 19 Pin cables and connectors
• Verifies power on each of the circuits
• Diagnoses both broken and swapped wires and pins
• Provides 3 diagnostic LEDs for each circuit, similar to popular electrician's single-circuit testers
• Ultrabright LEDs can be used as a temporary worklight in tight and dark spaces above and around stages
• Extremely convenient, compact and easy to use
• Durable rubber construction...a great addition to any tech tool kit

  Specifications:
• Specifically designed for LIVE circuit testing 1
• May be used with any standard 19-Pin six-circuit power source
• Six independent testers, each providing three diagnostic LEDs
• LSC 19 Pin Male Connector

  *** The Lex LSC 6 Circuit Live Multi-Cable Tester is a diagnostic tool to be used for troubleshooting purposes and should be used by qualified personnel only.
