LiteGear LiteDimmer Plus 200W DC200V DC Unit | V-Mount

PRODUCT DESCRIPTION

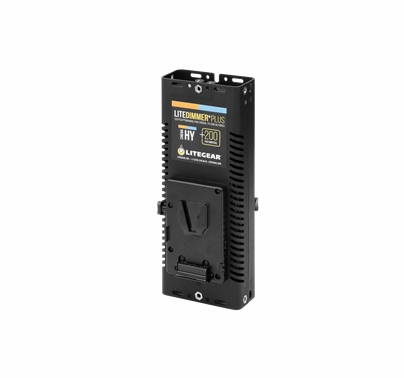

LiteGear LiteDimmer Plus 200W DC200V DC Unit | V-Mount - LD1.00112

LiteDimmer PLUS DC200V is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 200w unit can be powered using typical V-Mount-compatible batteries. LiteDimmer PLUS DC200V is compatible with LiteMat+ Plus 1, 2, 2L, 3, 4, and LiteTile+ Plus 4. Optionally, an external AC powered, 12volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ plus rugged housing includes several mounting options including four 1/4-20 threads for attaching clamps or brackets.

Specs

• POWER RATING: 200W
• VOLTAGE INPUT(BATTERY): 14.4VDC Nominal (10~16VDC) V-Mount
• VOLTAGE INPUT (EXTERNAL): 10~18VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
• VOLTAGE OUTPUT: 24VDC Constant Voltage, PWM (PL7 Connector)
• TRIGGER JACK: 2.5mm TRS
• DIMMING RANGE: 0% to 100% Continuous, Flicker-Free
• CONTROLS: On-Board “ON-OFF” Switch, Manual Kelvin Dial. Manual Dimming Dial
• SOFTWARE INTERFACE: Proprietary Connector, Service Center Upgradeable
• MOUNTING: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots, Paracord Lanyard
• AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
• IP RATING: IP20
