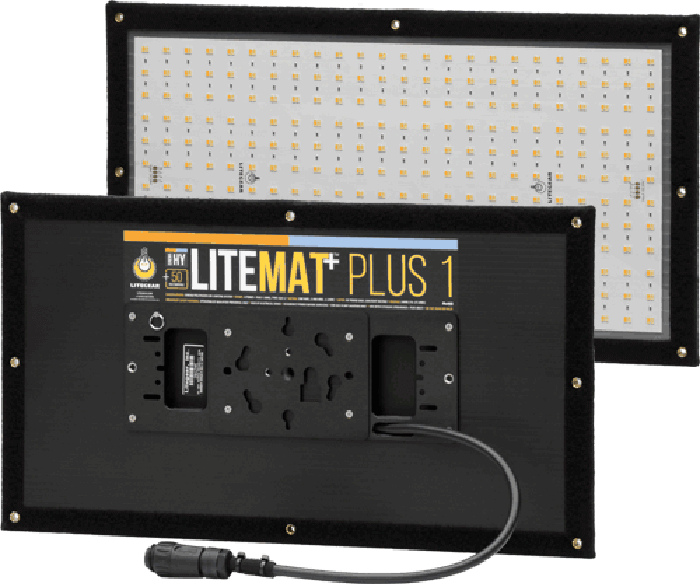

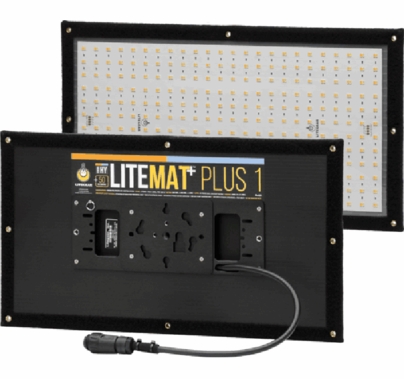

LiteGear LiteMat Plus 1 Hybrid LED Light Kit Gold Mount

PRODUCT DESCRIPTION

LiteGear LiteMat Plus 1 Hybrid LED Light Kit w/ Gold Mount Battery Plate | LM3.00145

The LiteGear LiteMat Plus 1 Hybrid LED Light Kit Gold Mount features a new combo power supply / dimmer / with built in Gold Mount battery Plate. In addition, the LiteMat Plus uses a round head cable with locking connector. The LiteGear LiteMat Plus Hybrid LED Ligh provides a soft, controllable LED BiColor light source. Featuring 576 new Cinemitter LEDs. At less than 1 inch thick and weighing 2.5 lbs, the LiteMat Plus 1 is a versatile lighting tool. Use it as a keylight for interviews, a soft top-light fill or a wrapping back light. The perimeter is covered with Velcro for easy attachment of accessories or even attaching to a wall or ceiling. A convenient Kino Flo type twist on mounting plate for use on a baby stand, c-stand or clamp. You will be impressed with the Cinemitter LEDs which are 40% brighter than our VHO Pro emitters. Plus a high CRI of 95+ while providing a color temperature range from 2600K to 6200K.

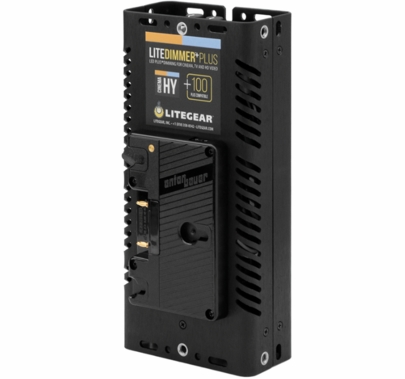

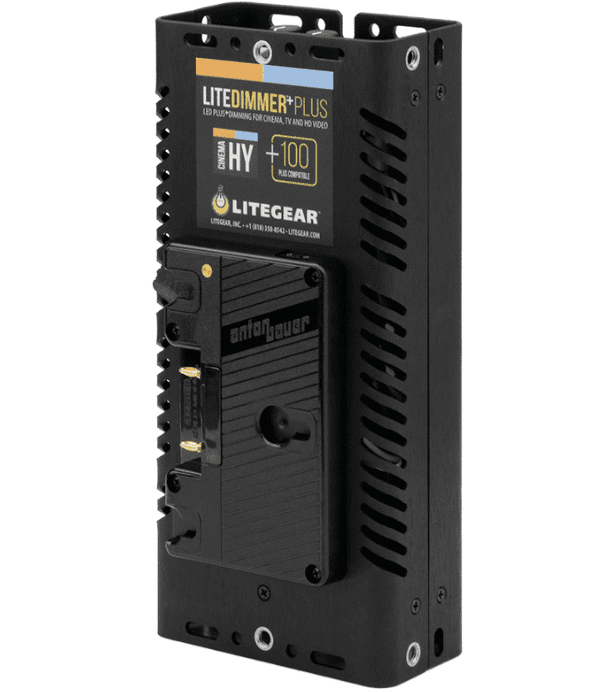

The Kit includes the LiteDimmer Plus which is a AC/DC power supply and dimmer combined into one unit with a Gold Mount battery plate. LiteDimmer+ Plus DC100G is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 100W unit can be powered using typical Anton/Bauer- or Gold Mount compatible batteries. Optionally, an external AC powered, 12 volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ Plus' rugged housing includes several different mounting options.

Kit Includes:

• LiteMat PLUS ONE
• LiteDimmer PLUS DC100G w/180W Power Supply
• Power Mounting Plate
• IEC,12' PL7 Extension
• PolySkirt
• 3pc Diffusion Set
• Louver
• LiteMount
• Kit Bag

LiteDimmer Plus 100w Specs (IMPERIAL/METRIC)

• POWER RATING ................................ 100W
• VOLTAGE INPUT*(BATTERY)......... 14.4VDC Nominal (9~40VDC) (Gold Mount)
• VOLTAGE INPUT† (EXTERNAL) .... 9~40VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
• VOLTAGE OUTPUT........................... 24VDC Constant Voltage, PWM (PL7 Connector)
• TRIGGER JACK ................................... 2.5 mm TRS
• DIMMING RANGE............................. 0% to 100% Continuous, Flicker-Free
• CONTROLS .........................................
  On-Board “ON-OFF” Switch
  Manual Kelvin Dial
  Manual Dimming Dial
• SOFTWARE INTERFACE .................. Proprietary Connector, Service Center Upgradeable
• MOUNTING ........................................
  (4) 1/4-20 Threaded Inserts
  Drywall Screw Holes
  Velcro®/Cable Tie Slots
  Paracord Lanyard
• AMBIENT TEMP. OPERATION........ –10° to +50° C (14° to 122° F)
• IP RATING............................................ IP20
