PRODUCT DESCRIPTION
It?s time to believe?A LED Studio Fresnel with real 2K equivalent output, and performance you can actually use.
A single source, behind a glass Fresnel equals beautiful, familiar optics. Combine that with unparalleled color quality, and you have a fixture that can?t be beat.
Specs
- Head: Type 8861 Tungsten
- Rating: 90-250 Volts AC, 50-60Hz, 400 Watts,
4 Amps Max.
- DMX Standby Draw: <.20 Amps Max.

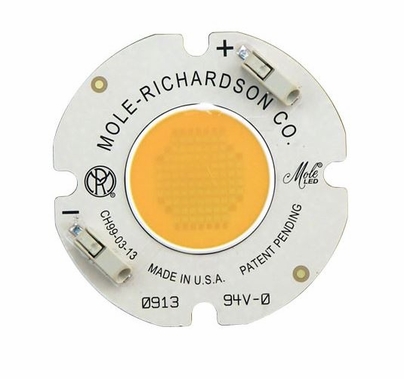

- Light Source: (1) - 400 Watt Mole-Richardson Quantum Dot LED
3200K 95 CRI Tungsten
- Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor,
#18 AWG with NEMA 5-15 Edison
(Other plugs and wire lengths available upon request)
- Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
- Fuse: 4 Amp Slow-Blow. Fuseholder in Trough

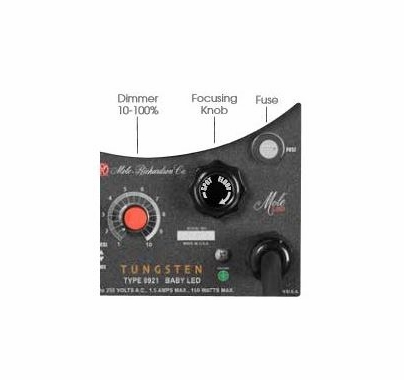

- Dimming: Flicker Free, Direct DC Dimming
On-Board Dimmer 100% -10%
(Minimal Color Shift)
- Condenser: 10
in (254mm) Borosilicate Glass Fresnel
- Beam Angle: 10 to 55 degree Variable Spot to Flood
(Includes Field)
- Focusing: Rotating Knob on Front and Back
- Cooling: Passive-Forced Air
- Construction: Aluminum and Steel with Interlocking Channels
- Yoke:Cast Aluminum w/Standard 1 1/8in (29mm) Pin
- Compliance: RoHS. CE, UL, CSA Pending
- IP Rating: 30
- Finish: Textured Black Powder Epoxy Coat.
(Other Colors Available)
- Size: 17 in/432mm(d) x 17 in/432mm(w) x 21 1/2 in/546mm(h)
- Head Weight: 24lbs/11.11kg (Head Only) 27.5lbs/12.25kg
(Head with 25ft/7.6m cable

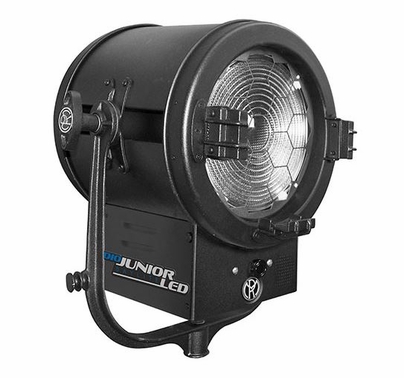

Mole Junior LED 10" 400W LED Tungsten Fresnel Light Non DMX
