PRODUCT DESCRIPTION

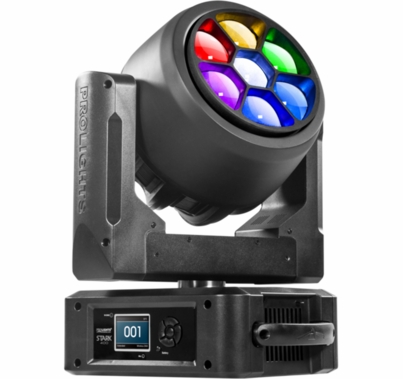

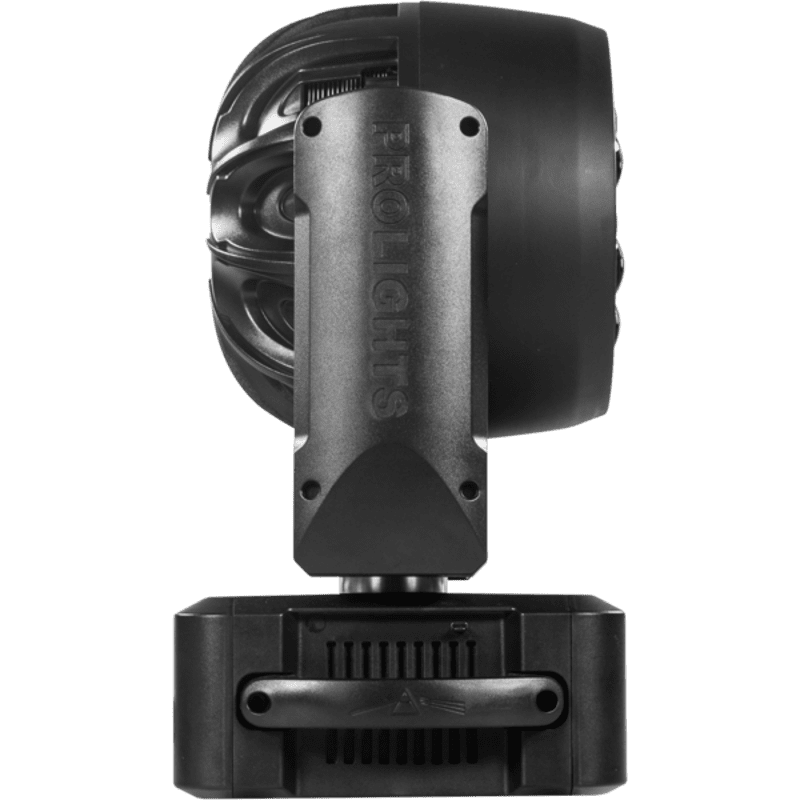

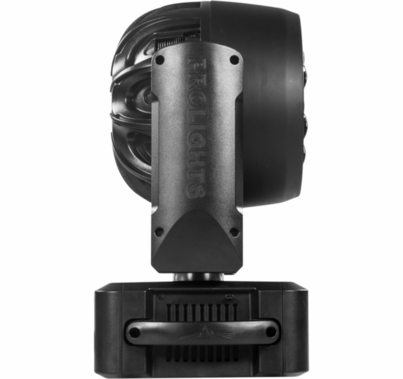

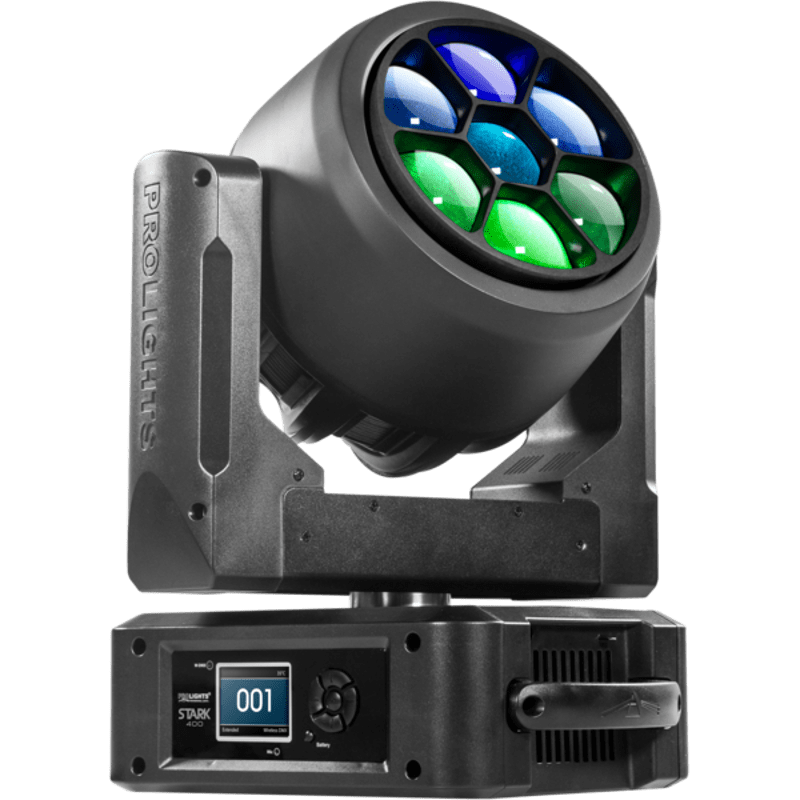

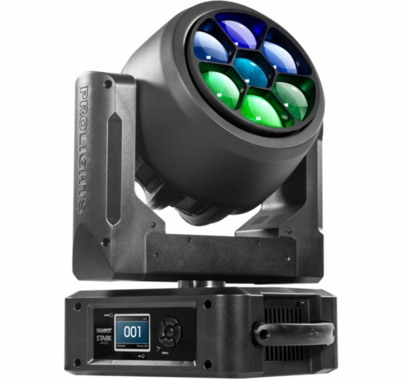

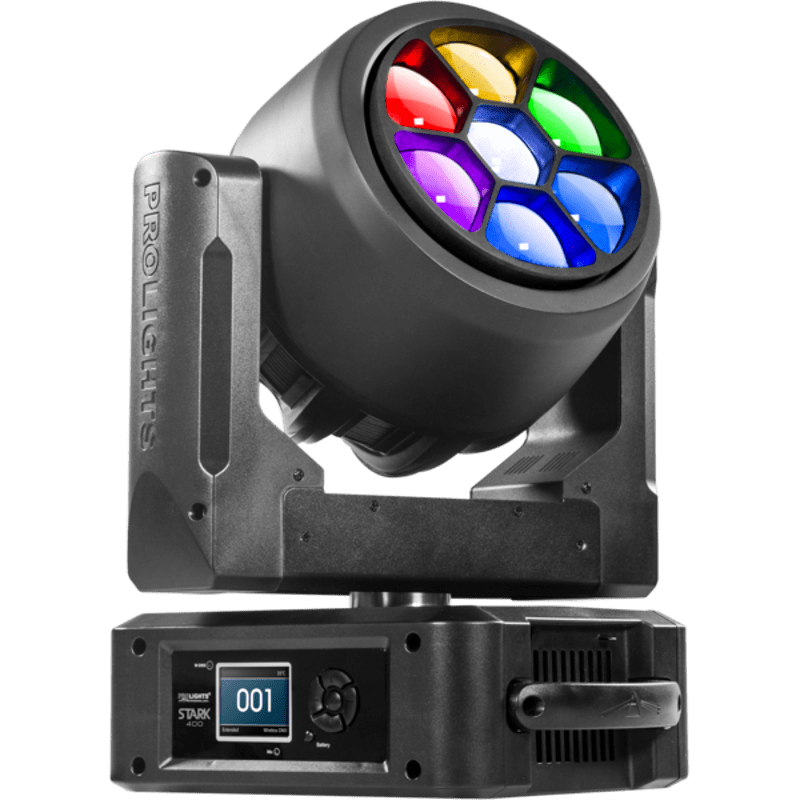

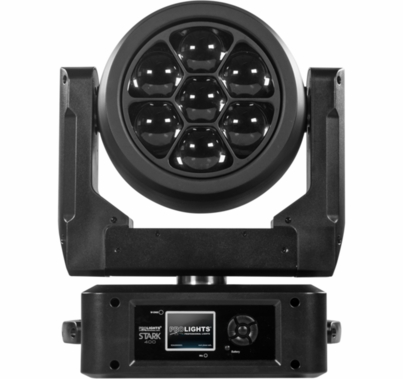

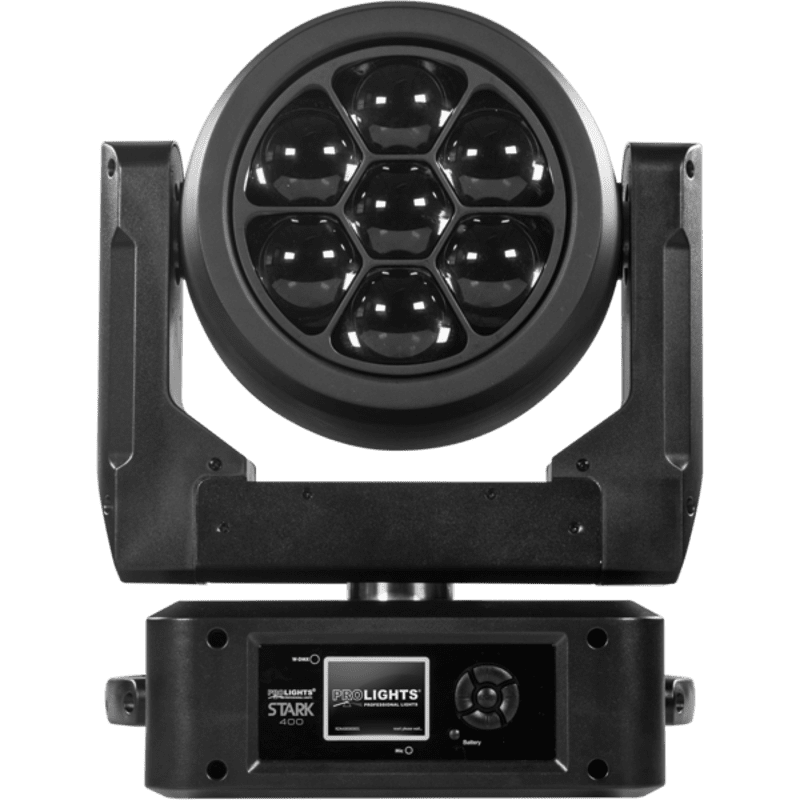

ProLights Stark 400 LED Moving Wash, OSRAM LED RGBW w/LumenRadio, TRUE1 In/Out, 5-pin In/Out
STARK400 is a new generation, high-output LED wash light designed to bring the workhorse LED wash light right up-to-date. Featuring 7 of Osrams new 40W RGBW Ostar LEDs it delivers a massive output for its size with a huge colour range and an extensive toolkit of effects.
Features:
- Massive 4° to 45° linear zoom range from beam to wash
- Individual control of calibrated pixels with on-board FX generator for fast and precise effects
- Liquid cooling system for efficient cooling with virtually no noise
Light Source
- Source: 7x40W RGBW Osram Ostar LEDs
- CT: Tunable 2000K~10000K
- Luminous flux: (3°) 1971 lm, (45°) 2209lm
- Lux: (3°) 38890 lux, (45°) 2180lux @3m full
- Lux: (3°) 14000 lux, (45°) 785lux @5m full
- Source life expectancy: >50.000 h
Optics
- Zoom: 3°-45° motorised linear zoom
- Lens type: high-quality glass lens optics
Colour System
- Colour mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- White presets: 2000~10000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build pixel macros with adjustable speed
Dynamic Effects
- Pixel patterns: pre-programmed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
Body
- Pan angle: 540/630°
- Tilt angle: 233°
- Pan/Tilt resolution: 16bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with hi-resistance polycarbonate cover
- Body colour: black
Control
- Protocols: DMX512, RDM, Art-Net
- DMX channels: 16/26/50channel
- Pixel control: pixel2pixel control
- W-DMX: included, Lumen Radio TiMo receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
- Hibernation: power safe mode when lost DMX
- Master/Slave: for synchronized operation of more units linked in a chain
Electronics
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves: different dimming curves available
- Strobe / shutter: 1-30 Hz, electronic
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
- Flicker: flicker free operation
Electrical
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 265W
- Power consumption (at 120V): 265W
- Output (at 230V): 8 units on a single power line
- Output (at 120V): 4 units on a single power line
Physical
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: IN Neutrik TRUECON
- IP rating: 20
- Dimensions (WxHxD): 338x452x235mm / 13.31''x17.8''x9.25''
- Weight: 11,3kg / 24.91lbs
