PRODUCT DESCRIPTION

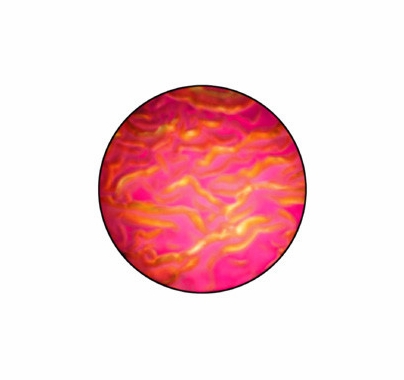

Rosco Magenta Ripple Color Wave Glass Gobo Pattern B Size 33103
Combine the deep textures of Image Glass and the vibrant saturated colors of Permacolor filters, and the result is
ColorWaves. Taking advantage of the unique color shifting properties of dichroic coatings,
ColorWaves project the deep patterns of ImageGlass and add colors that change and swell as the angle of the texture alters. Use
ColorWaves in Gobo Rotators for dramatic eye-catching effects.
Sharp Focus: Vibrant colors and sharp patterns mixing colors together for aggressive, dominant effects.
Soft Focus: Run the barrel from sharp to focus and as the patterns softens the colors shift hues and orientation to softly blended multicolor projections
SpecificationsSizes Available: 86mm Std B Size
Moving Light Sizes available by special order (minimum size, 37.5mm)
Thickness: 2.5 - 4.5mm (depends on specific pattern)
Glass Base: Tempered Soda Lime
Coating: Dichroic color (TiO2/SiO2)
Resolution: Not applicable
Installation Pattern Holder: Requires Iris Slot Holder
Orientation: Coating (textured side) towards the lamp
Handling: Avoid fingerprints. Clean with a soft lint free cloth.
Max Wattage: 575w continuous; 750w short term (less than 20 minutes)
Usage Notes:
- Prismatics must be used with an Iris Slot Gobo Holder in the Iris slot of ellipsoidal luminaires.
- When combined with steel gobos, install the steel pattern farthest from the lamp in order to project the steel design in sharp focus.
