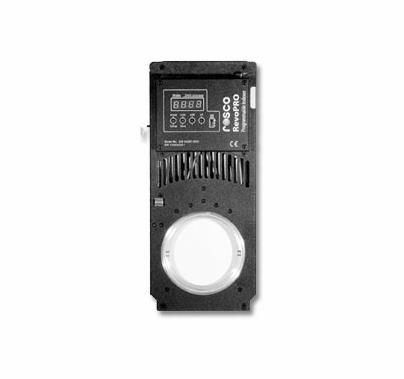

Rosco Revo Pro Dual Programmable Gobo Rotator 100V-240V

PRODUCT DESCRIPTION

Rosco Revo Pro Dual Programmable Gobo Rotator

Reflected water, flickering fire, gentle rain, blowing clouds, swaying trees, rippling waves, shimmering light, exploding fireworks, spiraling tornadoes, twinkling stars, morphing textures, spinning logos, eye-catching signage. This is just part of an endless list if effects that lighting designers will create using the RevoPRO™ dual programmable rotator and Rosco steel and glass gobos.

Features and benefits of the RevoPRO

* Hi temperature silicon belt drive for silent operation

* 100-240v auto sensing internal power supply for global installation

* Onboard 5-pin DMX input and pass thru for quick installation anywhere in the DMX chain

* Dual, independent stepper motors allow for any combination of speed and direction between gobos

* Precise and reliable stepper driver provides constant torque to prevent stalls even at slow speeds

* 8- or 16bit indexing control on both gobos allows a designer to create effects without limits

* 7 modes of DMX control for maximum flexibility at the console

* 99 preset effects library for stand-alone (no DMX) operation

* 1 stored effect location to customize speed and direction without no DMX needed

* Gobo installs using a unique threaded collar to prevent slipping with gobos from 0.1 -3.5mm thick

* Innovative "Friction Lock" for secure installation

Any Markets, Any Geography

RevoPro works anywhere. Dual independent motors, high and low resolution indexing, and flexible operations modes make RevoPRO perfect for the most sophisticated lighting rigs in theatre, theme parks and live events. The auto sensing, auto switching internal power supply means RevoPRO works anywhere you have mains power available. No DMX at the far front of house, or in the museum atrium? Dial in speed and direction on the RevoPRO LCD display and store to the memory buffer. Power-up to recall that program, power down at the end of the day. Your cue, your design, no dmx needed. Anywhere.

No Experience Required

Need every possible feature? RevoPRO. Using an advanced ML console with profiles, palettes and GUI? RevoPRO. Helping out an inexperienced student or high school who has a 2-scene preset board? RevoPRO in 2 CH mode. Facilities manager in a retail store or atrium? RevoPRO in Stand-Alone. Any user, no experience required.

Specifications:

• Part No: 205 64250 0000
• Power: 100-240vAC 50/60hz 1A max
• Connector Type: IEC C13 on Mains power cable
• Data Connection: 5-Pin XLR Input and Pass Thru for DMX
• Fixture Compatibility: ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, Strand SL, Altman Shakepseare
• Gobo Type: Metal, Glass, Effects Glass
• Gobo Size: OD Max 86mm (3.39in), OD Min 80mm (3.15in), IA Max 75mm (2.95), Thickness Max: 3.5mm (0.14in)
• Speed: 0.5rpm - 24rpm
• Precision: 370-degree, 8-Bit Indexing - 370-degree (1.45-degree steps); 370-degree, 16-Bit Indexing - 370-degree (0.005-degree steps)
• Control: DMX512 - 7 operation modes using 2, 4, or 6 channels of DMX. 99 Preset Effects Library 1 Stored Address for custom speed / direction configuration
• Physical: 4.67in x 10.875in x 0.53/2.4in 119mm x 276.2mm x 13.5/62mm
• Weight: 31 oz (880g)
