Sachtler System Ace XL MS AL

PRODUCT DESCRIPTION

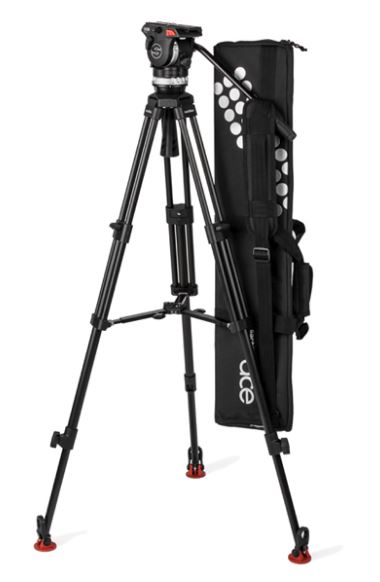

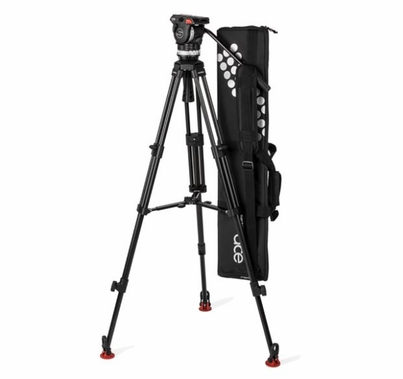

Sachtler System Ace XL MS AL

The Sachtler System Ace XL MS AL offer the benefits of their carbon-fiber counterparts in a lower-cost package. The Ace XL 75mm fluid head supports an extended payload range of two to eight kilograms and is ideally suited for digital cine-style cameras including the Blackmagic URSA Mini Pro, Canon C200 and C300 Mark 2, Panasonic GH5, Sony FS7, A7S and the new Panasonic EVA1.

Tech Specs

• Fluid head: ACE XL
• Spreader: Mid-level spreader
• Weight: 4.5 kg
• Payload: 2 – 8 kg
• Height range: 79 – 170 cm
• Head fitting: 75 mm
• Transport length: 86 cm

Features and Benefits:

• Fiberglass-reinforced composite construction that is both lightweight and strong
• A counterbalance system with eight stepped settings for up to 17.6 pounds of counterbalance
• Sachtler's Synchronized Actuated Drag (SA-drag) fluid drag system for both pan and tilt
• The SA-drag system provides three drag grades, plus a zero setting for no drag
• A panning range of 360°, and tilt range of +90 to - 75° + The ACE 5.5" long camera balance plate that allows 4.1" of sliding balance adjustment
• A 75 mm ball for fast leveling, and an illuminated bubble level built into the head + One mounting point for the pan bar on the right side of the head
• One mounting point for the pan bar on the right side of the head
