Sturdy AadynTech Punch Variable Cinema

PRODUCT DESCRIPTION

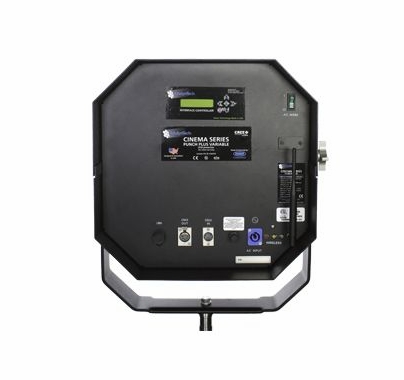

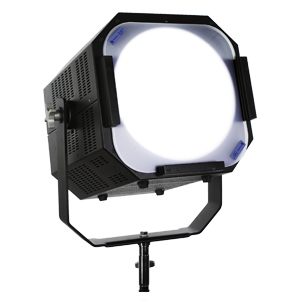

Sturdy AadynTech Punch Variable Cinema

The AadynTech Punch Variable Cinema The new Punch Variable Cinema has an adjustable color temperature range of 2,800°K to 6,000°K and develops an output of 3,532 fc @ 10 feet and is now coupled with high CRI (92+) performance in the Punch Variable Cinema. Like the Punch Variable Cinema draws only 4.78 amps of power at full output. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

When any of our lenses are used, optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loop-thru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided. When your production requires precise color temperature control and powerful, reliable even lighting; the Punch variable by AAdynTech has no peer.

Includes

• Aadyntech Punch Variable Cinema LED fixture
• 4 Lenses
• Scrim Bag
• Yoke & Pin
• User Manual

Features

• 3,532 foot candle output @ 10 feet
• 5600K CCT
• Draws only 4.8 amps at full output
• Auto range voltage – 100/277 VAC – 50/60Hz
• Up to 90% energy savings
• Precise brightness control w/ variable dimming curve
• Single light source eliminates multiple shadows
• Flicker-free up to 12,000 fps
• No heat generation – operates cool to the touch
• Douse button (momentary off)
• Included 5°, 15°, 30°, 55° lenses to vary beam angle
• No head cables, ballast or spare lamps

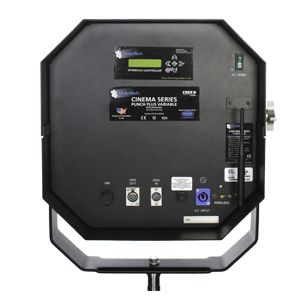

• Built-in digital User Interface Module (UIM) control
• Recalibration countdown hour ‘smart’ meter
• Full DMX control w/ DMX loop-thru
• 5-pin XLR DMX In/Out & PowerCon AC Cable
• Programmable multiple lightning and strobe effects
• Multiple user memory storage with recall
• 2 year warranty on fixture
• Operating temperature at -20c to +50c
• Certified UL, ETL, CSA, CE & RoHS compliant
• Wireless DMX/RDM control

Specifications

• Control: UIM, Wired & Wireless DMX/RDM
• Source: LED, 2,800K to 6,000K
• Cooling: Passive/Active
• Mounting: Junior Pin/28mm Spigot
• Certifications: ETL, UL, CSA, CE and RoHS Compliant

Dimensions

• Length: 431.4 mm / 17.0 in.
• Width: 468.9 mm / 18.5 in.
• Height: 515.5 mm / 20.3 in.
• Weight: 22 kg / 48.4 lbs

Power

• Input Voltage: 100-277 Vac
• Input Freq: 50/60 Hz
• Input Current: 4.87 Amp @ 120V 584.4 W @ full
• Connection: PowerCon Twist, Lock connector

Highlights

• RoHS Compliant
• Up to 3,532 foot candles @ 10 feet
• Variable color temperature at 2,800k to 6,000k
• Dimmable with no color shift
• Draws 4.8 amps at max output
