Arri Caster 8X Power Supply for Broadcaster

PRODUCT DESCRIPTION

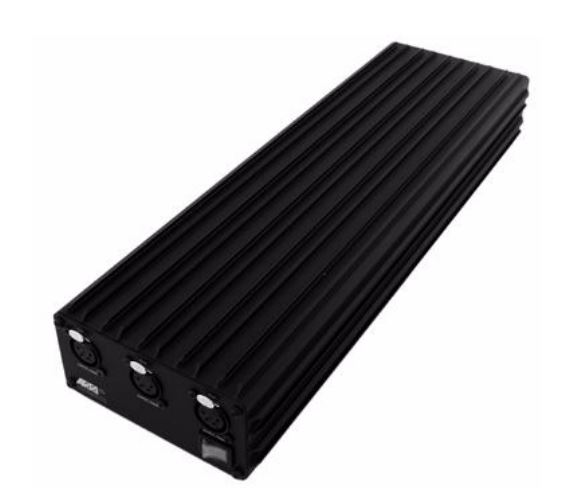

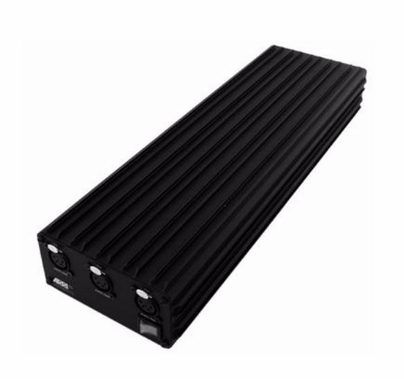

Arri Caster 8X Power Supply for Broadcaster

The BroadCaster 2 Plus power supply features three PowerDMX outputs. Each output can deliver a maximum of 100 W of power. Do not overload the output. Doing so will damge the output. PowerDMX distributes both power and DMX data through a single 4-pin cable, enabling each BroadCaster 2 Plus panel to operate through a single cable connection.

Specs

• Use the product only in dry environments. XLR-4 PowerDMX pin-out
• Input voltage 100 - 240 V~, 50 / 60 Hz
• Output voltage 24 V=, 6 A max
• Protection class IP 20 *
• Electrical safety III (SELV)
• Dimensions (l x w x h) 16.1 x 5.5 x 2.76 in
• Weight 6.6 lbs

XLR-4 PowerDMX pin-out

Pin Assignment
• Pin 1: 0 V
• Pin 2: DMX Data -
• Pin 3: DMX Data +
• Pin 4: 4 11 - 36 V=

* IP 20: The product is not protected against ingress of water.
