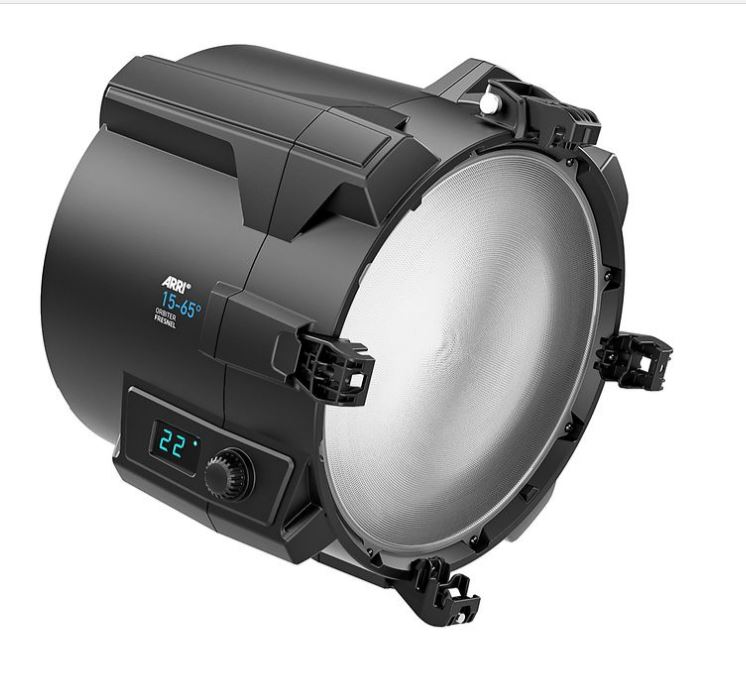

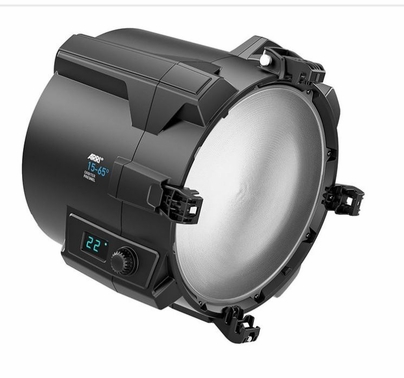

Arri Orbiter Fresnel Lens 15-65 Degree

PRODUCT DESCRIPTION

Arri Orbiter Fresnel Lens 15-65 Degree L2.0039436

The light output of the Orbiter with the Fresnel lens is comparable to the ARRI L-Series L10 and True Blue ST2/3 with 2000 W Tungsten bulb.

Features:

• Large and fully motorized zoom range of 15-65°
• Zoom range can be controlled locally or remotely
• A status LED display shows the current zoom angle
• 4 and 8-leaf barndoors can be added
• Effortless mounting thanks to Orbiters’ QLM system
• Can be attached to any Orbiter color version

Tech Specs

The Fresnel lighting character works best with a large aperture and a wide zoom range. Despite its large aperture, the Orbiter Fresnel lens housing is compact (approx. 340 mm x 380 mm x 370 mm / 13.4 in x 15 in x 14.6 in) and lightweight (~ 4.5 kg / 9.5 lbs). Its lens diameter of 285 mm / 11.2 in equals that of the True Blue ST2/3 and T5. The large zoom range of 15 to 65° is fully motorized and can be precisely positioned while being controlled locally via Orbiter’s Control Panel or remotely by DMX/RDM or IP based (ArtNet or SACN). The Orbiter Fresnel lens will be available in black.
