PRODUCT DESCRIPTION

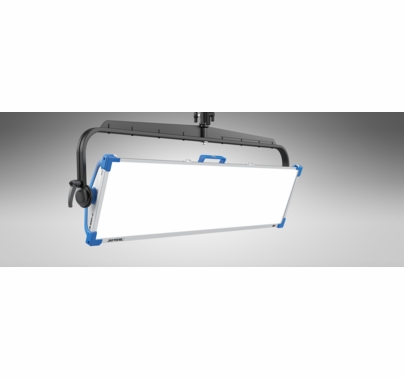

Arri SkyPanel S120-C LED Yoke Mount Blue / Silver L0.0012956
The Arri SkyPanel S120-C LED Light Yoke Mount w/Edison L0.0012956 If you love your SkyPanel S60-C you will love the SkyPanel S120-C. The larger front aperture provides an even softer light while weighing nearly the same as it's little brother. It is just slightly brighter than the S60-C and requires just 400 watts to power generating nearly 90 lumens per watt. The front light aperture measures 50.8" x 11.8" similar in size to a 4x4 Kino Flo. Color temperature is adjustable from tungsten 2,800K to daylight, as high as 10,000K. Best of all, you can create virtually any color with RGB+W control, utilized thru the easy to use, onboard, control panel. Fully dimmable with DMX in and out connectors, as well as ethercon port for network connectivity. The slim profile and lightweight design features an external power supply. SkyPanel puts out a tremendous amount of
light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S120 has more
than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of
illumination and color gives users an unprecedented amount of control.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient
materials and assembled by hand with great care.
Includes
- Arri SkyPanel S120-C Yoke Mount LED Fixture
- 3ft DC Cable
- S60/S120 Power Supply Unit
- Standard Diffusion Panel
- Edison PowerCon Cable
Specs
- Lamphead S120-C
- Optical System: Soft Diffusion Panel
- Light Aperture: 1290 x 300 mm / (50.8 x 11.8 inches)
- Beam Angle: 110° (Half Peak Angle)
- Weight: Mount: 14 kg (30.9 lbs)
- Mounting:28 mm Spigot (Junior Pin)
- Tilt Angle: +/- 90º
- Lamphead Voltage Input: 48 V =
- Power Consumption: 400 W Nominal, 430 W Maximum
- Lamphead Power Connection: Male 3-Pin XLR to 15 amp (Pin 1: Negative / Pin 2: Positive)
- Battery Connector: Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
- Battery DC Voltage Range: 23 - 36 V =
- Battery Mode Light Output: 50% of Total Output
- White Light: 2,800K to 10,000 K continuously variable Correlated Color Temperature
- Colored Light: Full RBG+W color gamut with Hue and Saturation control
- Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
- Color Rendition: CRI Average > 95
- TLCI Average: > 90
- Green-Magenta Adjustment: continuously adjustable (Full Minusgreen to Full Plusgreen)
- Dimming: 0 - 100% continuous
- Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
- Remote Device Management: (RDM*): *RDM Available in Future Firmware DMX Setup, Hour Counter and Standard RDM commands
- Software Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac
USB-A: Software Upgrade via flash drive
- Housing Color: Blue/Silver, Black
- Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
- Protection Class: IP 20
- Estimated LED Lifetime: (L70) 50,000 hours
- Estimated Color Shift Over Liftetime: +/- 5%
- Certifications: CE, FCC; ENEC, cNRTLus, CB
Power Supply Unit S60/S120 PSU
- Power Supply Input Range: 110 to 240 V ~, 50/60 Hz
- Power Supply Output Range: 48 V =
- Power Input Connection: powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)
- Power Output Connection: Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
- Weight: 3.5 kg (7.7 lbs.)
- Dimension: 383 x 192 x 90 mm (15 x 7.6 x 3.5 inch)
- Control: On-Board On/Off Switch
- Mounting: Super Clamp Attachement / SkyPanel PSU Rail Mount
