PRODUCT DESCRIPTION

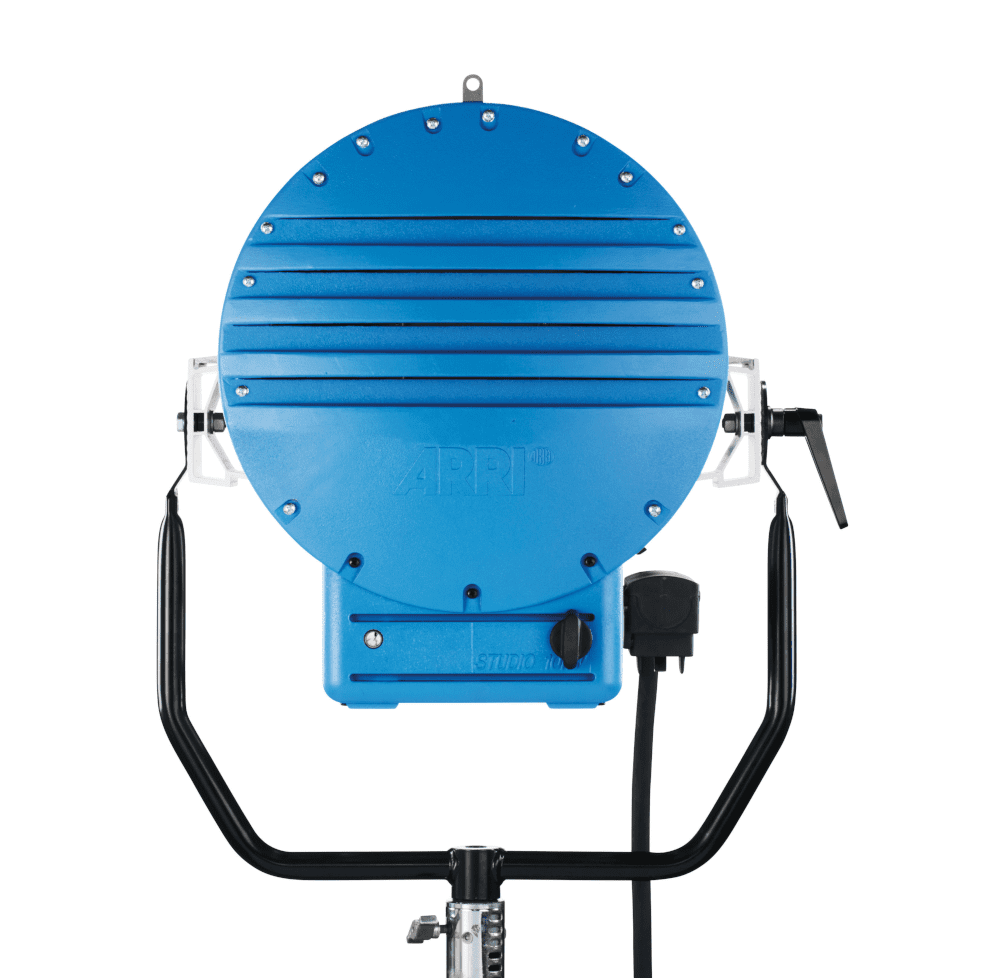

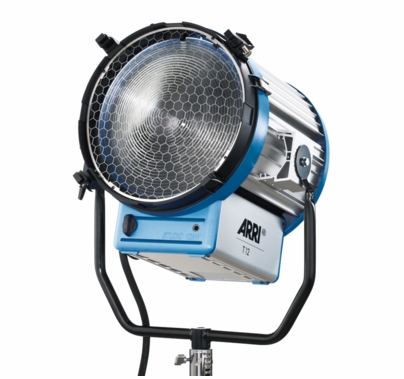

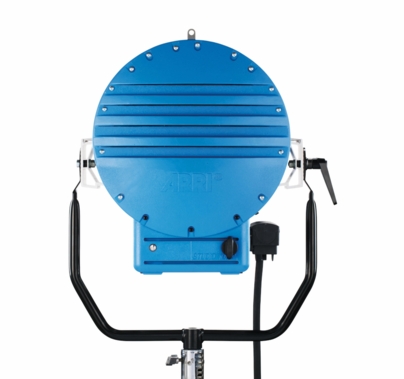

Arri T12 12000W Fresnel, Stand Model, 120V, 16.5" Lens
STUDIO:
The ARRI Studio Fresnel series is the ideal choice for TV and Film studios Where tungsten lampheads are required. The large short focal length lens sizes provide optimum even light output. Arri Studio Fresnels are available in both manual and Pole Operated version.
Features
- High efficiency wide-angle lenses
- Corrosion-resistant aluminium construction
- Extremely even light distribution
- Focus knob on front and rear
- Easy service access
- Wide range of accessories
Technical Data
- Lamphead Type: Fresnel, 12000 W
- Reflector Type: Spherical specular high purity aluminum
- Lamp Type: 12000 W / 120 V monoplane; CP83 10000 W / 120 V monoplane
- Power Consumption: 12000 W, 10000 W
- Voltage Range: 120 V
- Lamp Base: G38
- Dimmability: Yes, 0 - 100 % via Optional external dimming system
- Cable Terminates: bare ends (electrical connector not included)
- Correlated Color Temperature: 3200 K
- Beam Angle: 13 - 63 degrees
- Product Weight: 25,0 kg / 55.1 lbs.
- Shipping Weight: 31,5 kg / 69.5 lbs. (incl. pallet)
- Product Size (HxWxL): 748 x 682 x 562 mm / 29.45" x 26.85" x 22.13"
- Shipping Size (HxWxL): 695 x 725 x 780 mm / 27.36" x 28.54 x 30.71"
- Lens Diameter: 420 mm / 16.54"
- Accessory Diameter: 495 mm / 19.49" (Scrim)
- Barndoor Size: 510 mm / 20.08"
- Mounting: Spigot 28 mm / 1 1/8" (1.1")
- Protection Class: I/IP 20
- Certifications: CE, CB, GS, cNRTL
Bulb and Barndoors (shown in photo) Not Included.***Fixture Requires Electrical Connector. Please See Related Items Tab***
