Azden 310LT UHF Diversity Wireless Mic System

PRODUCT DESCRIPTION

Azden 310LT UHF Diversity Wireless Mic System

The Azden 310LT UHF Diversity Wireless Mic System includes 310UDR with 35BT and EX-503L. Pro quality and priced right the on-camera body pack system features the EX-503L omni directional lav mic. Utilizing 188 selectable frequencies, the Azden 310LT will always provide clear, crisp sound. Easy to ready digital display for added confidence. The receiver includes a camera shoe mount which is removable and a headphone out jack. Both units operate on readily available AA batteries.

Includes

• 310UDR receiver
• Shoe mount
• Mounting strips
• MX-1 XLR output cable 24"
• 3.5mm mini-jack output cable
• 35BT body-pack transmitter
• EX-503L omni-directional lapel microphone
• Manual

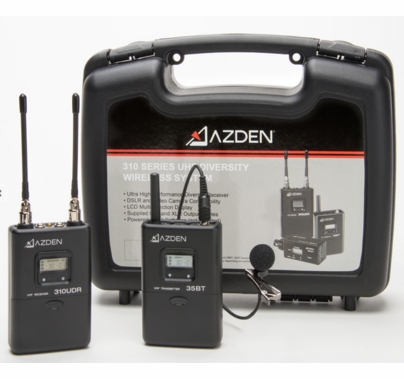

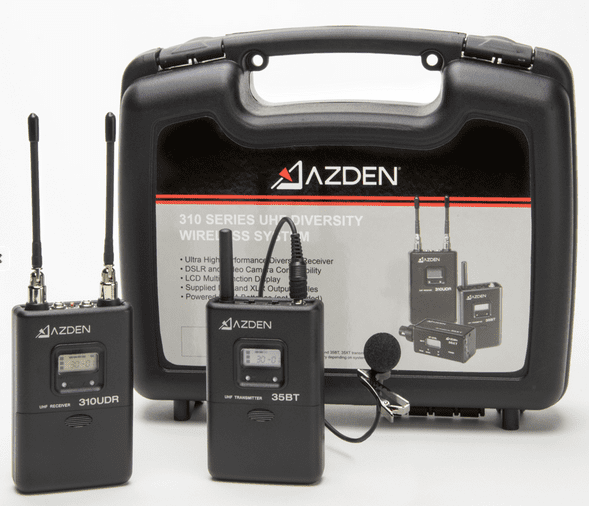

• Hard shell carrying case

Specs 310UDR Receiver

• Freq. Range: UHF 188 Frequencies (566.125-589.875MHz)
• Type of Reception: FM
• Oscillator: PLL Synthesized
• RF Squelch Level: -95dBm
• Frequency Response: 50Hz – 15kHz
• S/N Ratio: >84dB 100% Dev.
• Output Impedance: 1k Ohms
• Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack -28 dBm – 100% deviation
• Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime 2 “AA” rechargeable Ni-MH (2 x 1.2V)
• Dimen.: 2.48″W x 3.86″H x 1.12″D (63 x 98 x 28.5 mm)
• Weight: Approx. 6.7oz (190g) w/batteries
