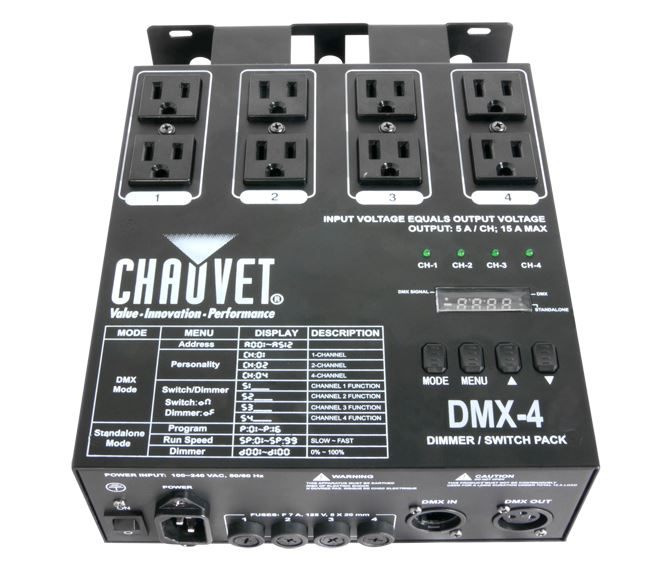

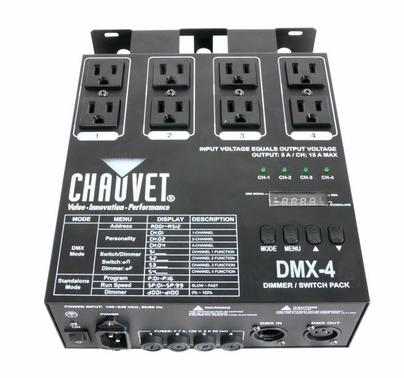

Chauvet DJ DMX 4 Channel Dimmer / Relay Pack

PRODUCT DESCRIPTION

Chauvet DJ DMX 4 Channel Dimmer / Relay Pack

It's a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.

Features:

• 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)
• Provides DMX control for on/off or dimming to non-DMX fixtures
• Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
• Custom looks at your fingertips with 16 built-in, configurable chases,
• Easy control using standalone mode or DMX control
• Increase flexibility by setting each channel as a dimmer or switch
• Control up to eight units simultaneously with four duplex outlets
• Monitor the status of each channel with separate LED indicators
• Generate a synchronized show using easily accessible automated programs, built-in automated programs
• Great control without DMX using automated programs with adjustable speeds and dimmer levels

Specifications:

• DMX Channels: 1, 2, or 4
• DMX Connectors: 3-pin
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Weight: 5lbs (2.2kg)
• Size: 8.3 x 7.7 x 2.8in (210 x 194 x 70mm)
• Approvals: CE
