PRODUCT DESCRIPTION

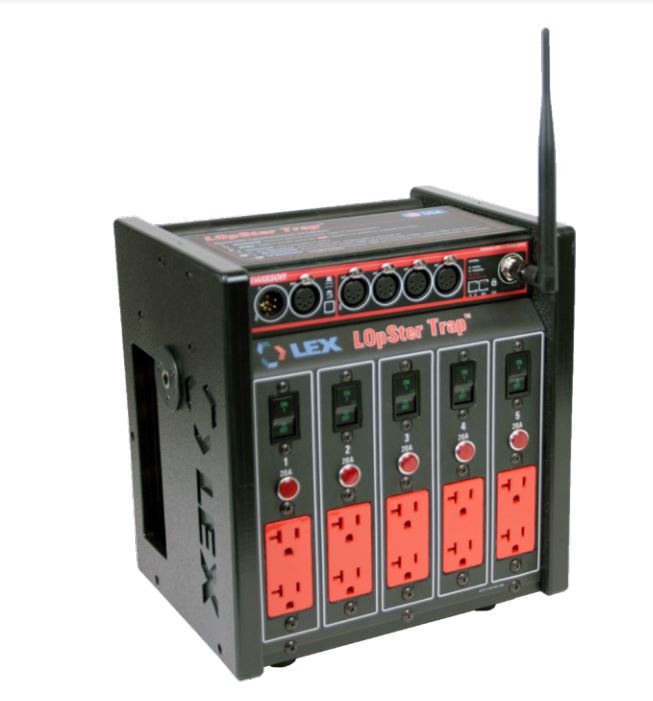

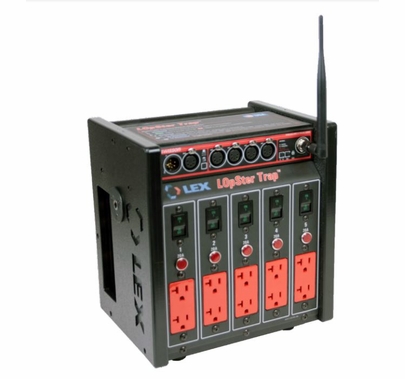

Lex 100 Amp LOpSter Lunchbox w/ Wireless DMX Opto-Splitter
LOpSter Enclosure, 100A 120 VAC Panel Mount Stage Pin Inlet with Feed Thru, (5) 5-20 Edison Duplex Receptacles, 5-Pin DMX Receptacles, Wireless DMX, (1) In (1) Thru (4) Outs, (4) USB Type A Receptacles, NEMA Type 1.
Features & Benefits
- The LOpSter TrapTM combines the function of electrical power “lunch boxes” with the data distribution of an “opto-splitter”, both of which are typically found in studios and on locations
- One box to inventory, transport, set up and strike as opposed to two
- The DMX512 Splitter/Repeater may act as either a transmitter or receiver with the touch of a button and utilizes CRMX or W-DMX for reliable wireless DMX transmission
- 4.2A 4-Port USB Type-A Outlet Charger Receptacle for convenient powering of electronics
- Hydraulic magnetic breakers will not nuisance trip at higher temperatures and are mounted flush for easy access and circuit identification
- Brightly colored receptacles increase visibility in low-light situations

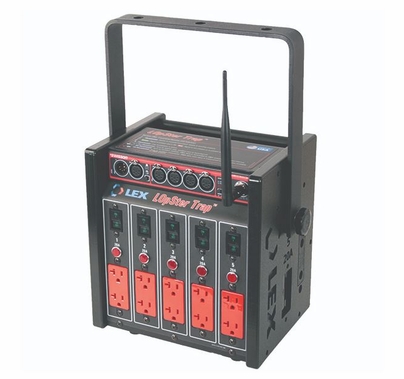

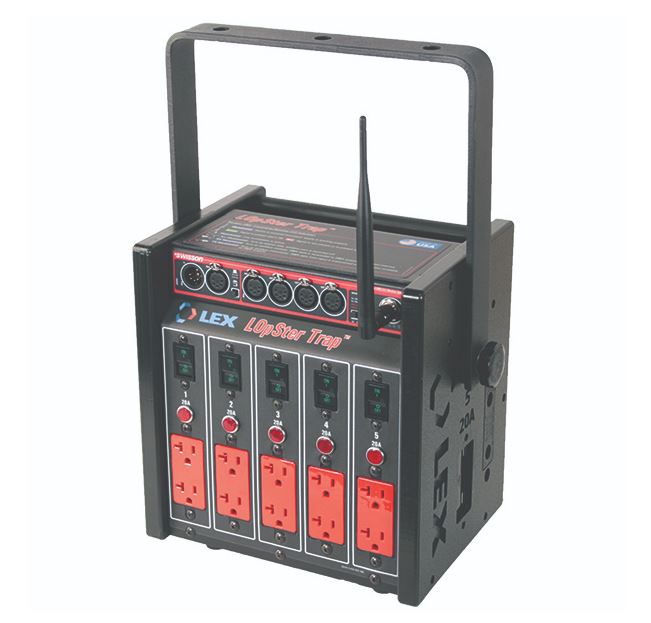

- Threaded inserts for brackets provide easy mounting of C-Clamps
Markets Served
- Theatrical, Motion Picture, Television Production
Technical Information
- Rating: 100 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) Stage Pin (Bates), 100 Amp, 2-pole, 3-wire, 125 VAC inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (5) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount; (4) USB Type A, 4.2 Amp, 2-pole, 3-wire, 125 VAC 4-port receptacles, panel mount
- Overcurrent Protection: (5) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers

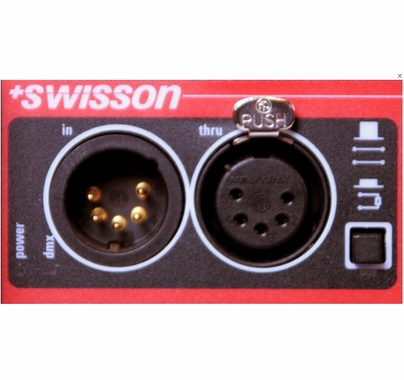

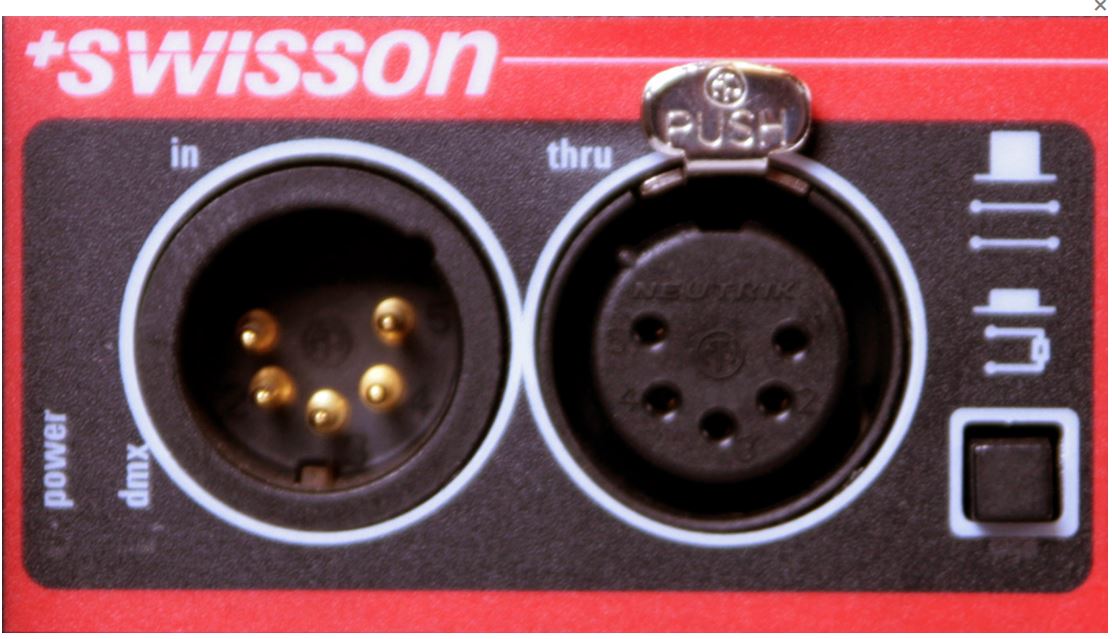

- Data Input: Wireless DMX (CRMX) or Wired 5-Pin XLR Inlet, DMX512
- Data Feed Thru: Yes
- Data Output: (4) Optically Isolated 5-Pin XLR Receptacles
- Enclosure Type: LOpSter™
- Dimensions: 10.25”W x 11.50”H x 8.00”D
- Weight: 13.5 lbs
