PRODUCT DESCRIPTION

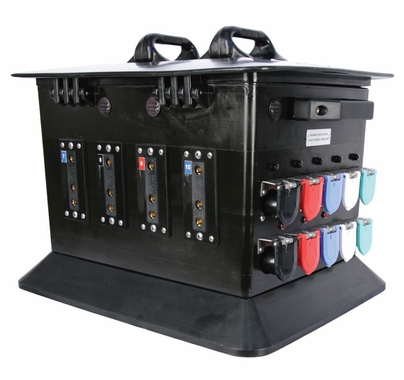

Lex 400A 3 Phase Motion Picture Box Stage Pin Feed Thru
Application
Distributes power to large 120 VAC and 220 VAC lighting fixtures on sets or on location shoots. A duplex receptacle is provided for convenience use.
Specifications
- Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
- Output: (3) 100 Amp, 2 Pole, 3 Wire, 220 VAC stage pin receptacles
- (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
- (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire duplex receptacle
- Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount outlets
- Overcurrent protection: (3) 100 Amp, Single Pole branch-rated circuit breakers
- (6) 100 Amp, 2 Pole branch-rated circuit breakers
- (1) 20 Amp, Single Pole branch-rated circuit breaker
- Overall Dimensions: 27.5" L X 18.5" W X 18" H
- Approximate Weight 90 lbs.
Features & Benefits
- Provides a variety of stage pin receptacles for powering multiple lights
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Breakers are mounted under the hinged lid for enhanced safety
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Markets Served
- Motion Picture & Television Production
