PRODUCT DESCRIPTION

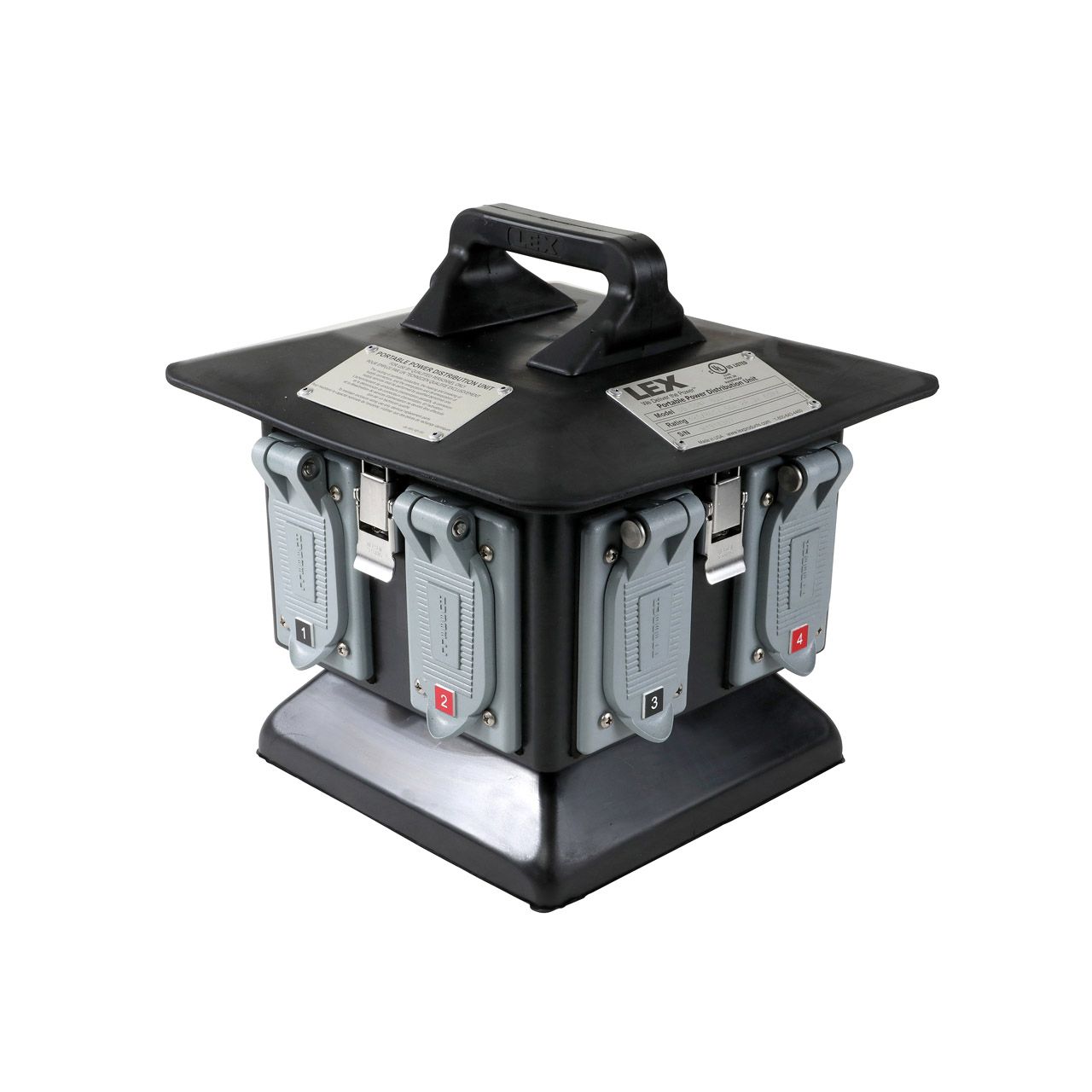

Lex 50 Amp Pagoda Jr to Edison Duplex Receptacles Weather Resistant DB-50NQ-BBB-S3
50A 125/250 VAC, (1) California Style CS63 Male (Inlet) to (6) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Pagoda Jr.™
Features & Benefits
- This box can be fed directly from a generator or from a larger box and is able to provide temporary power in disaster relief situations
- Applications include powering lights, pumps, fans and tools.Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Breakers are mounted under hinged lid for enhanced safety
- Stackable and compact for easy storage and portability
- Elevated base keeps receptacles above ground level
Markets Served
- Industrial, Emergency/Disaster Relief
Specs
- Rating: 50 Amp, Double-phase (H,H,N,G), 3-pole, 4-wire, 125/250Y VAC, 60 Hz
- Environmental Rating: NEMA Type 3R (Weather Resistant)
- Input: (1) California Style CS63, 50 Amp, 3-pole, 4-wire, 125/250 VAC, locking inlet, cover door, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (6) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
- Overcurrent Protection: (6) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
- Enclosure Type: Pagoda Jr.
- Dimensions: 11.38"L x 11.38"W x 11.32"H
- Weight: 16.0 lbs
- Agency Approval: cULus Listed
***The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.***
