PRODUCT DESCRIPTION

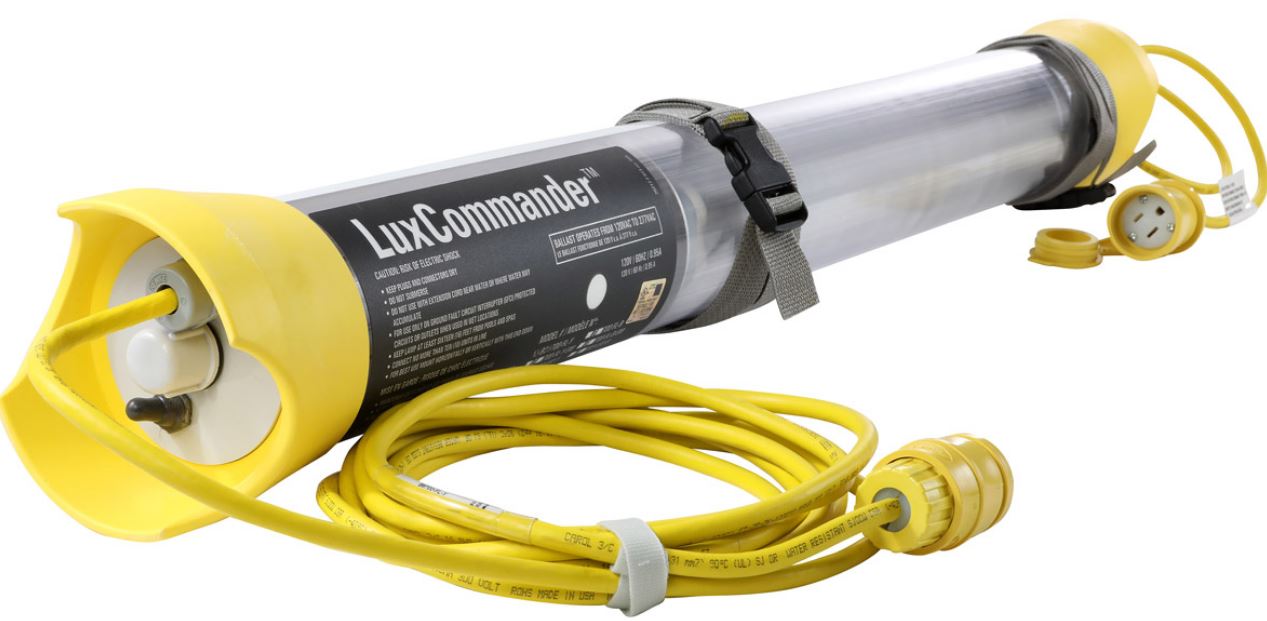

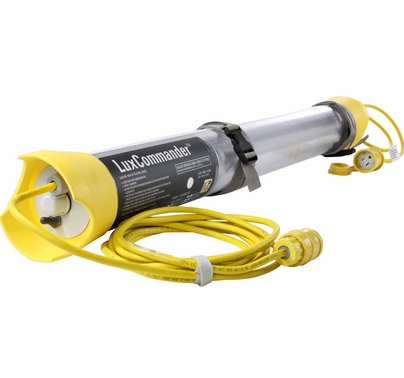

Lex LuxCommander (3) T5 LED Portable Work Light
6,300 Lumens, 16.5W, 120VAC, 3'3" LED Work Light, 5-15 Male (Plug), 15' 12/3 SJOOW cord, 5-15 Female (Connector) Thru
Features
- Provides brighter light output than other LED fixtures for a safer worksite
- Rugged, shock-absorbing aluminum frame, polycarbonate shell, polyurethane caps and lamp holders provide protection against accidental drops and lengthen fixture life
- Environmentally sealed for safe use in damp and wet locations
- Delivers up to 40,000 lamp hours, reducing replacement lamp costs and downtime
- High power factor ballast offers up to twice the energy savings of conventional LED fixtures
- Feed thru wiring for easy daisy-chaining where multiple lights are required
- Lighter in weight and more compact than conventional LED fixtures for convenience
- Hanging straps enable easy suspension
- Also available in 240 and 277 VAC versions
Markets Served
Manufacturing Inspection, Maintenance Applications for Industrial, Aircraft/Aerospace, Marine/Shipyards, Temporary Emergency Shelters, Utility Markets
Specs
- Rating: 20 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 120/208Y VAC
- Lumens: 6,300
- Lamp/Watts: (3) T5, 16.5W
- Input: (1) NEMA 5-15, Weather Resistant, 15 Amp, 2-Pole, 3-Wire, 125 VAC on 15' pigtail, 16/3 Type SJOOW, Yellow

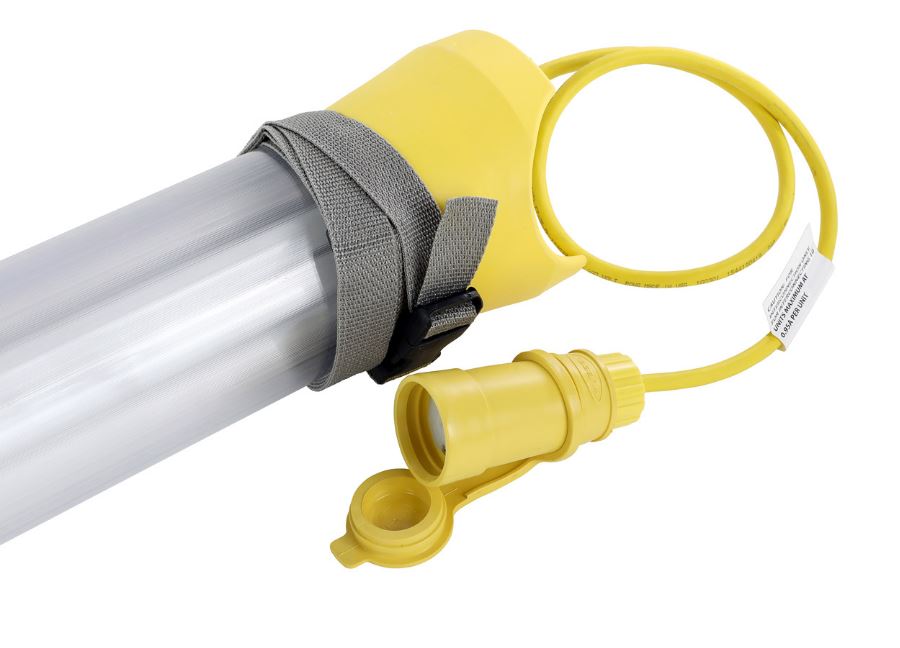

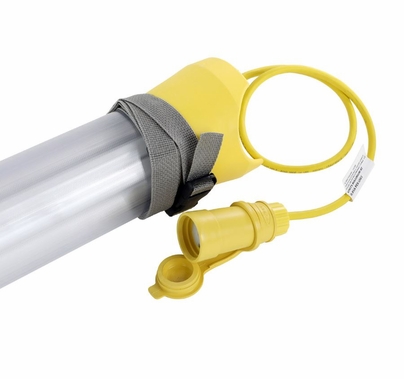

- Outlet: (1) NEMA 5-15, Weather Resistant, 15 Amp, 2-Pole, 3-Wire, 125 VAC on 1' pigtail, 16/3 Type SJOOW, Yellow
- Ballast: Class P, > 20 KHz, 100% Solid state, high power factor (>.99)
- Universal Voltage: 120-277 VAC Max
- Enclosure: Polycarbonate shell, polyurethane end caps
- Backup Battery: No
- Minimum Starting Temperature: 0°F
- Maximum Operating Temperature: 95°F
- Overall Dimensions: 3'3"L x 0'5"Dia.
- Weight: 9.0 lbs
- Agency Approval: cULus Listed
