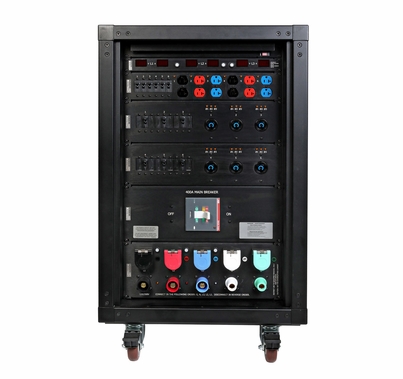

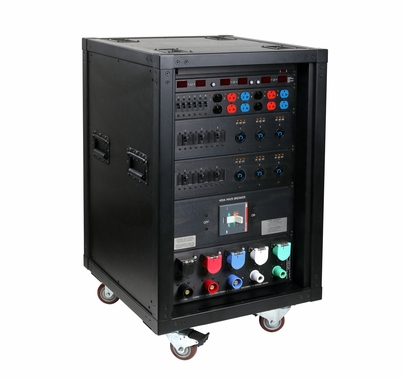

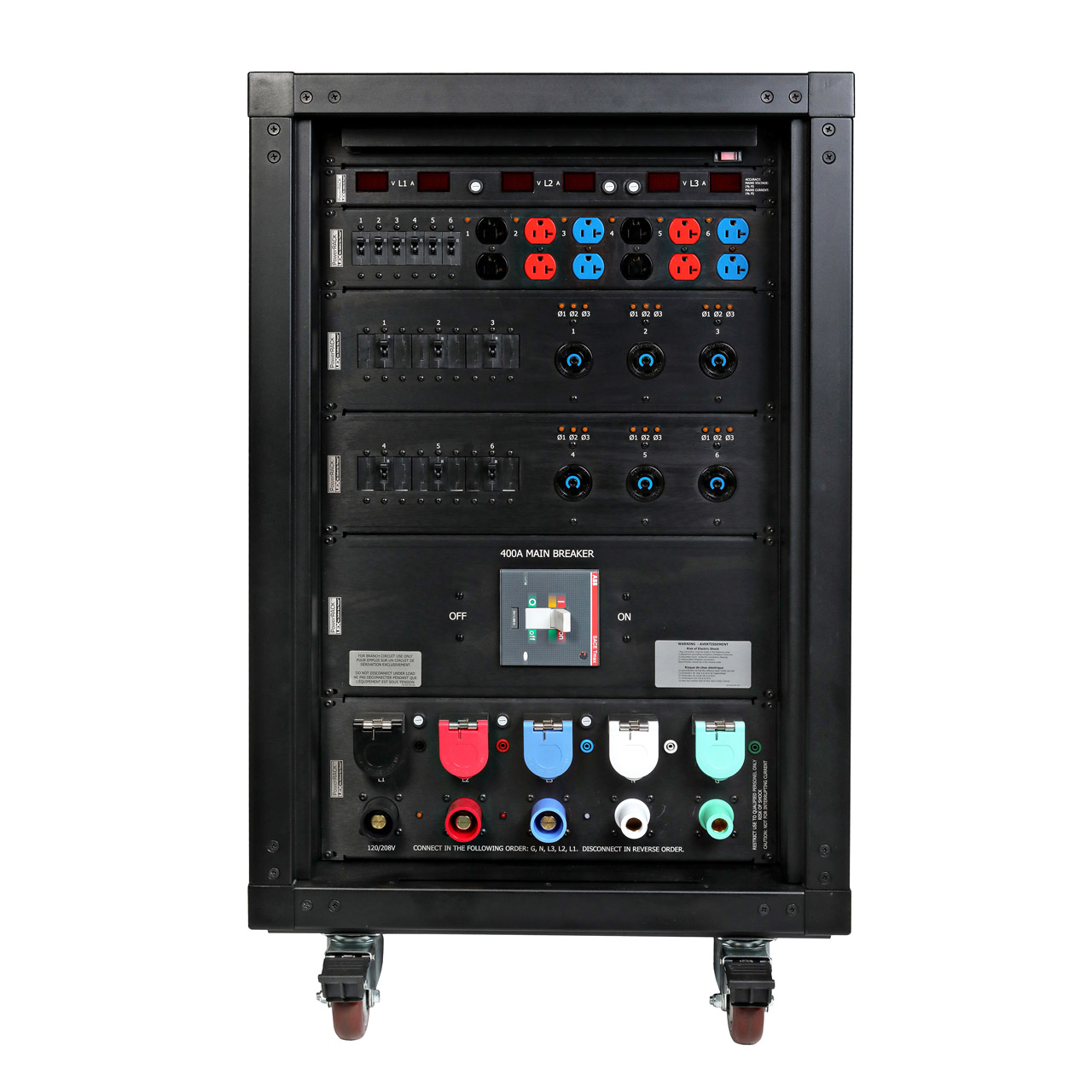

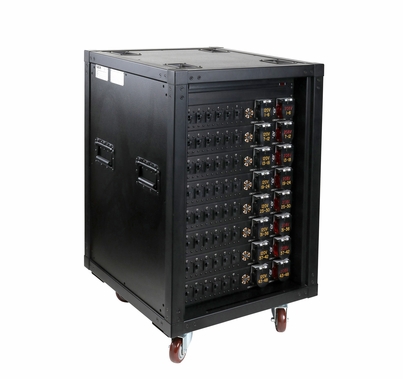

Lex Presidential 400 Amp PowerRack w/ 48 120VAC or 208VAC Circuits | Rocker Circuit Breakers

PRODUCT DESCRIPTION

Lex Presidential 400 Amp PowerRack w/ 48 120VAC or 208VAC Circuits and Metering PRMM18Q-2MR8U-X-LV-RB | Rocker Circuit Breakers

Lex Products Presidential Rack 400 Amp PowerRack Rolling Distribution Racks are ideal for touring applications where durable racks are required. Built on a lightweight, rugged aluminum frame and all hardware is recessed to protect against breakage. Featuring a high impact, high density, polymer top, bottom and sides. Recessed cups on top panel for easy stacking. Lex Products builds simple and safe portable electrical distribution products. Anywhere portable power is required check out the Lex PowerRacks for film, video, stage and live event entertainment.

Application

(48) circuits of either 120 VAC or 208 VAC make an ideal distribution for entertainment lighting.

Specifications

• Input: (5) 16 Series Cam-type panel mount Male devices, straight
• Thru: (5) 16 Series Cam-type panel mount Female devices with protective covers, straight
• Main Breaker: 400 Amp
• Output: (8) 6-circuit, 120V LSC19 receptacles and (8) 6-circuit, 208V LSC19 receptacles (parallel)
• (6) NEMA L21-30, 30 Amp locking receptacles
• (6) NEMA 5-20, 20 Amp duplex receptacles
• Overcurrent Protection: (48) 20 Amp, 2 Pole branch rated circuit breakers
• (6) 30 Amp, 3 Pole branch rated circuit breakers
• (6) 20 Amp, Single Pole branch rated circuit breakers
• Dimensions: 26" L x 24" W x 39-1/2" H

Features & Benefits

• Extruded aluminum frames combined with high density polyethylene (HDPE) enclosure panels create lightweight yet remarkably strong and extremely durable rack enclosures
• Front and back rack doors have "snap-in" latches for ease of access
• All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
• All 19" rack panels are laser engraved for clear and concise identification
• 100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
• LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification

Markets Served

• Live Event
• Motion Picture
• Theatre
• TV/Film Production
• Worship Venues
• Convention Centers
• Rentals
