PRODUCT DESCRIPTION

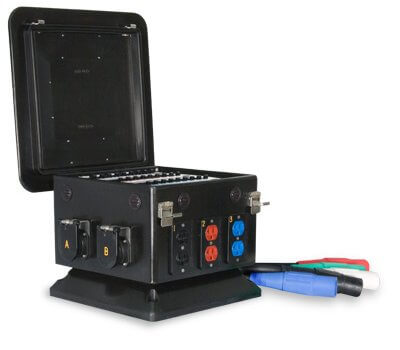

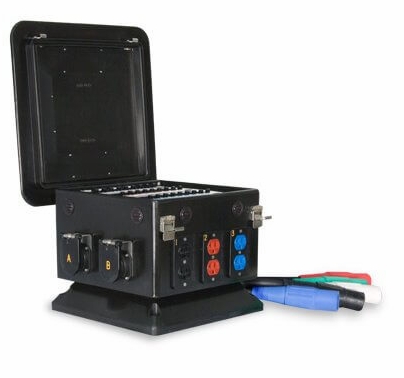

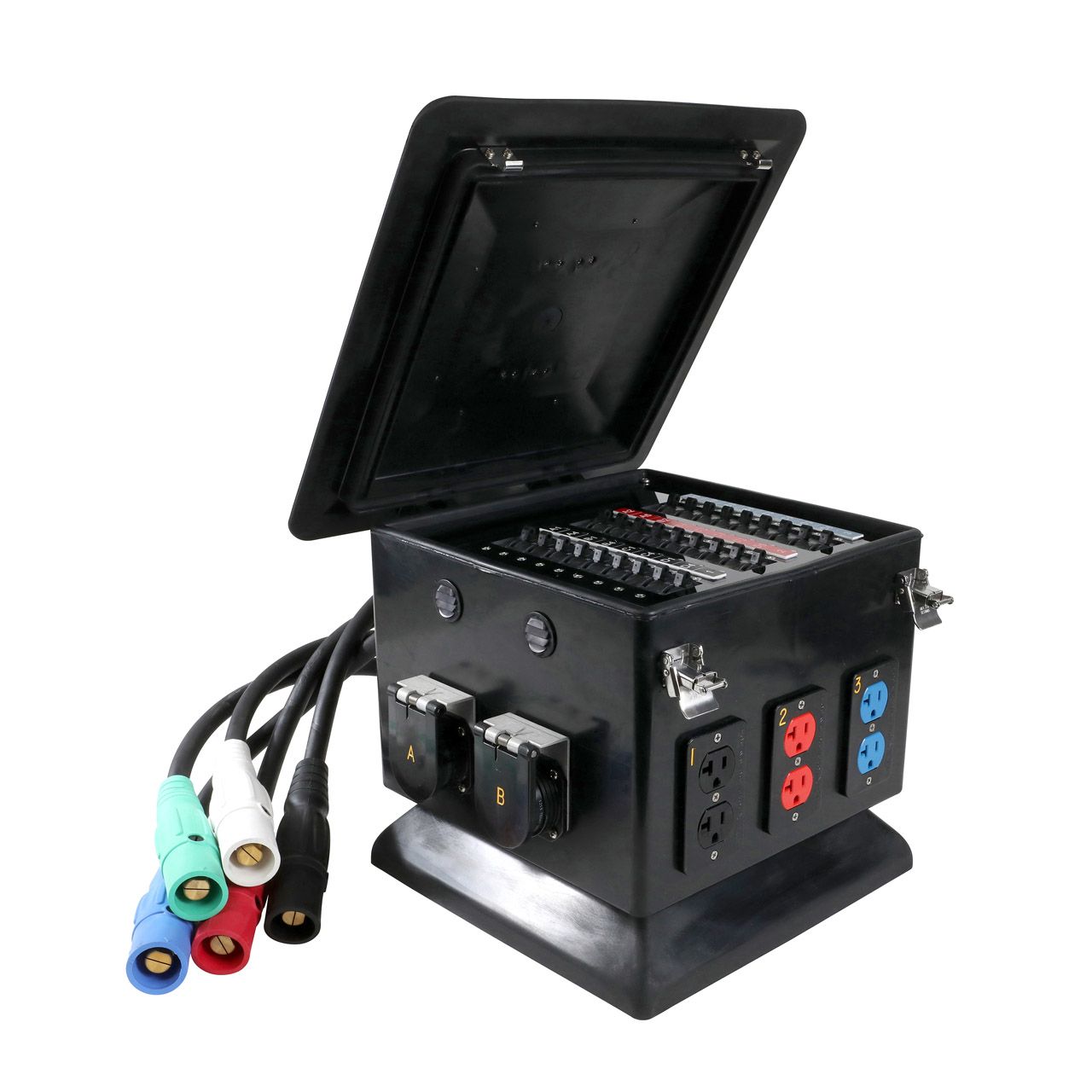

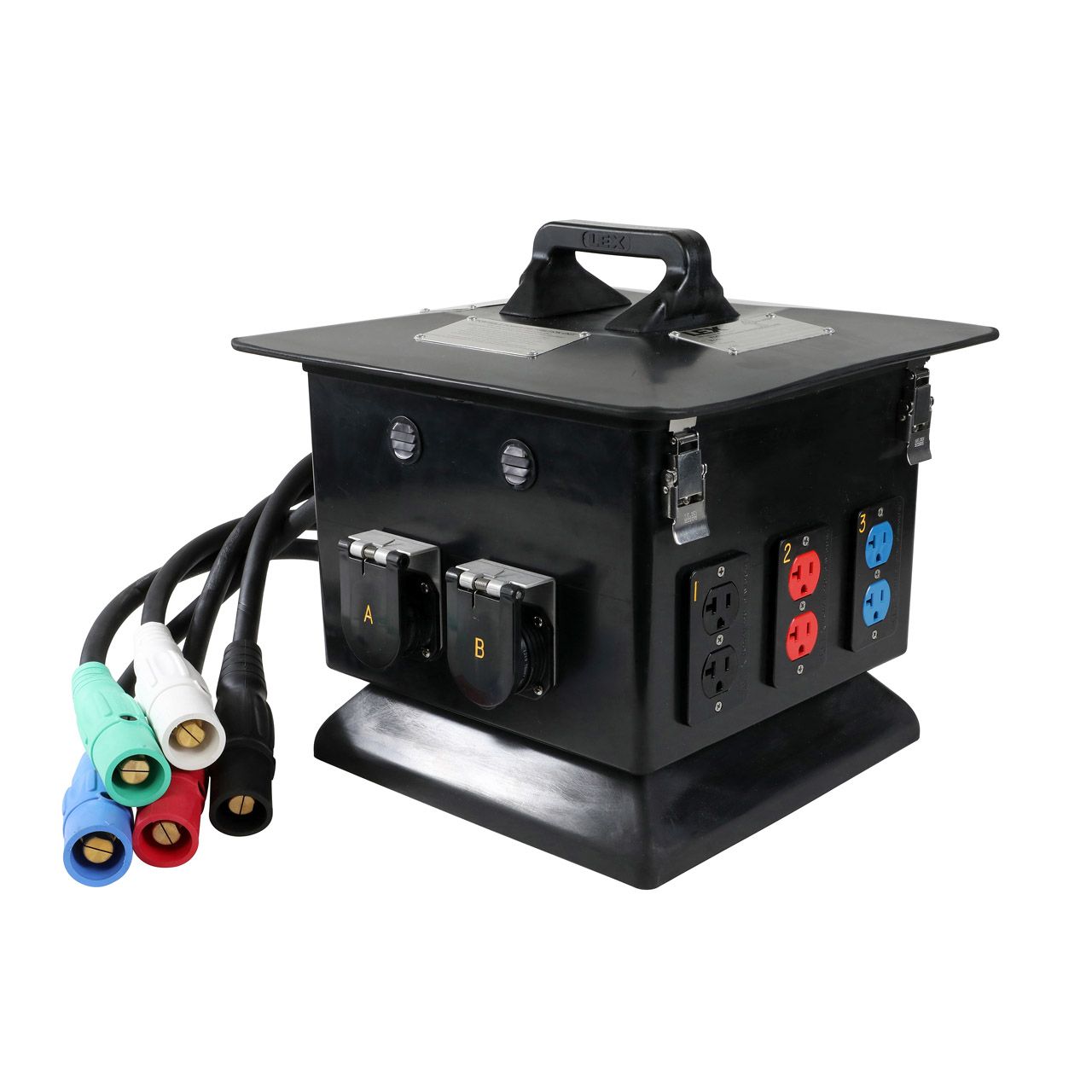

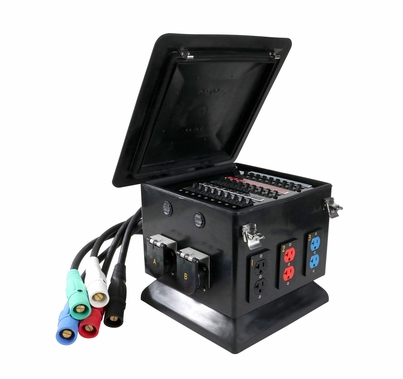

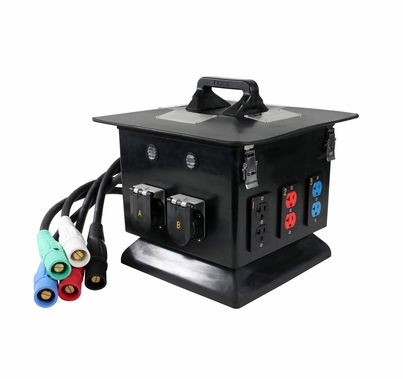

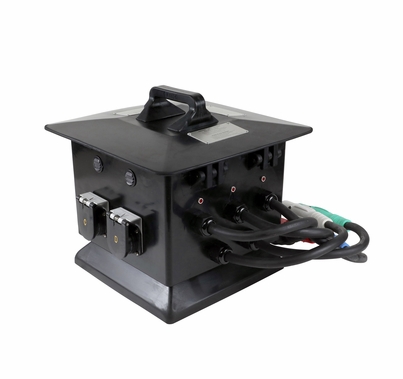

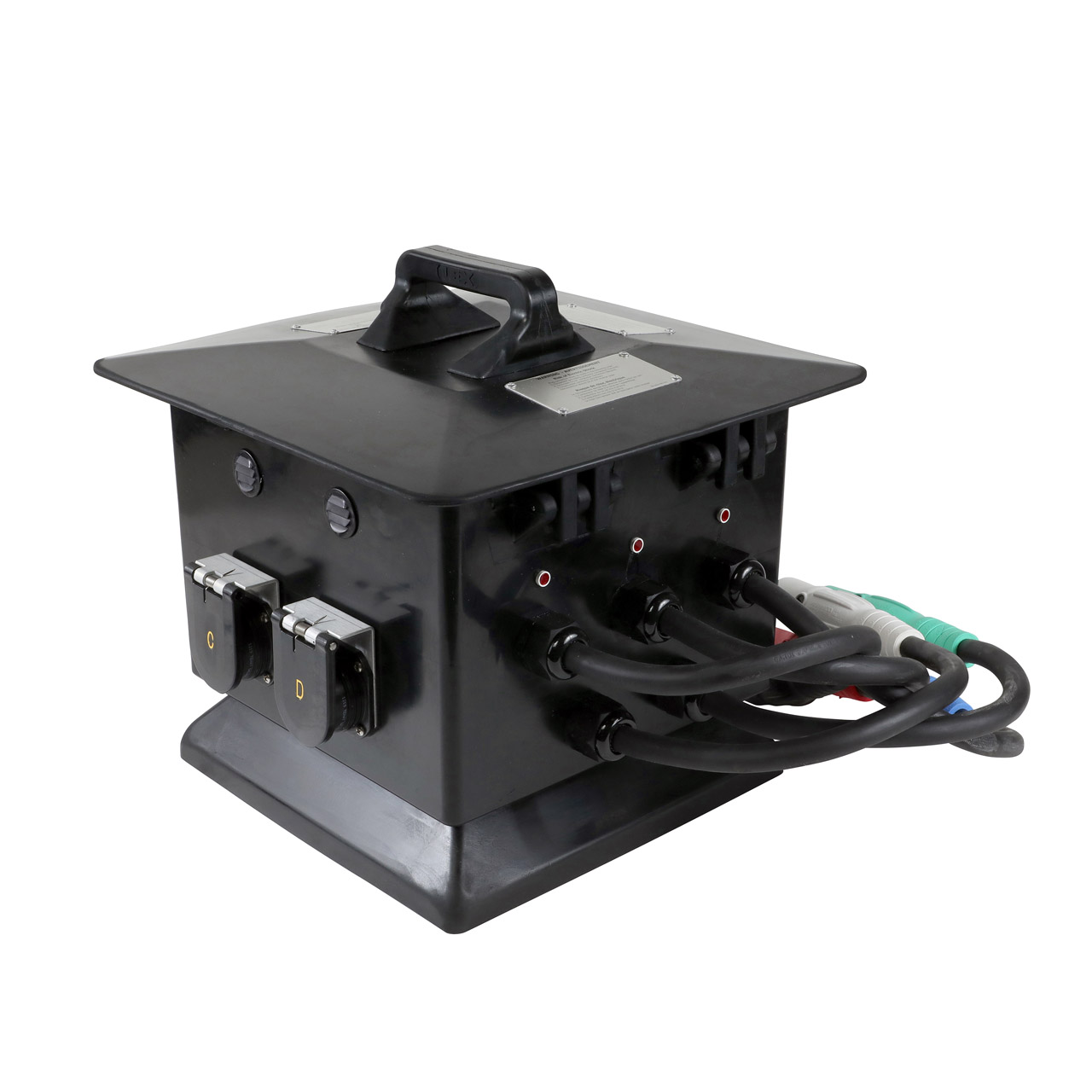

Lex Products 200 Amp Pagoda w/ Tail to LSC19 Receptacles
The Lex Products 200 Amp Pagoda w/ Tail to LSC19 Receptacles is an electrical distribution power box used in temporary locations including movie sets, stage productions, concerts and live events. Provides non-dimmed power to 19 pin multi cables.
Application
Fed from a panel or generator, this box provides overcurrent protected power for four multi-cable connections. This box is typically used with multiple non-dimmed circuits.
Specifications
- Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) set of (5) 16 Series Cam-type color-coded plugs on 18 inch #1 AWG type SC tails
- Output: (4) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 female panel mount receptacles
- (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
- Overcurrent Protection: (27) 20 Amp, Single Pole branch-rated circuit breakers
- Enclosure: Pagoda
- Overall Dimensions: 11.5"L x 11.5"W x 14"H
- Approximate Weight: 39 lbs
Features & Benefits
- Provides four outputs for industry standard 6-circuit lighting multi-cable in addition to three duplex receptacles for convenience power
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted under hinged lid for enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
- Reverse neutral and ground option helps prevent mis-mating for enhanced safety
