PRODUCT DESCRIPTION

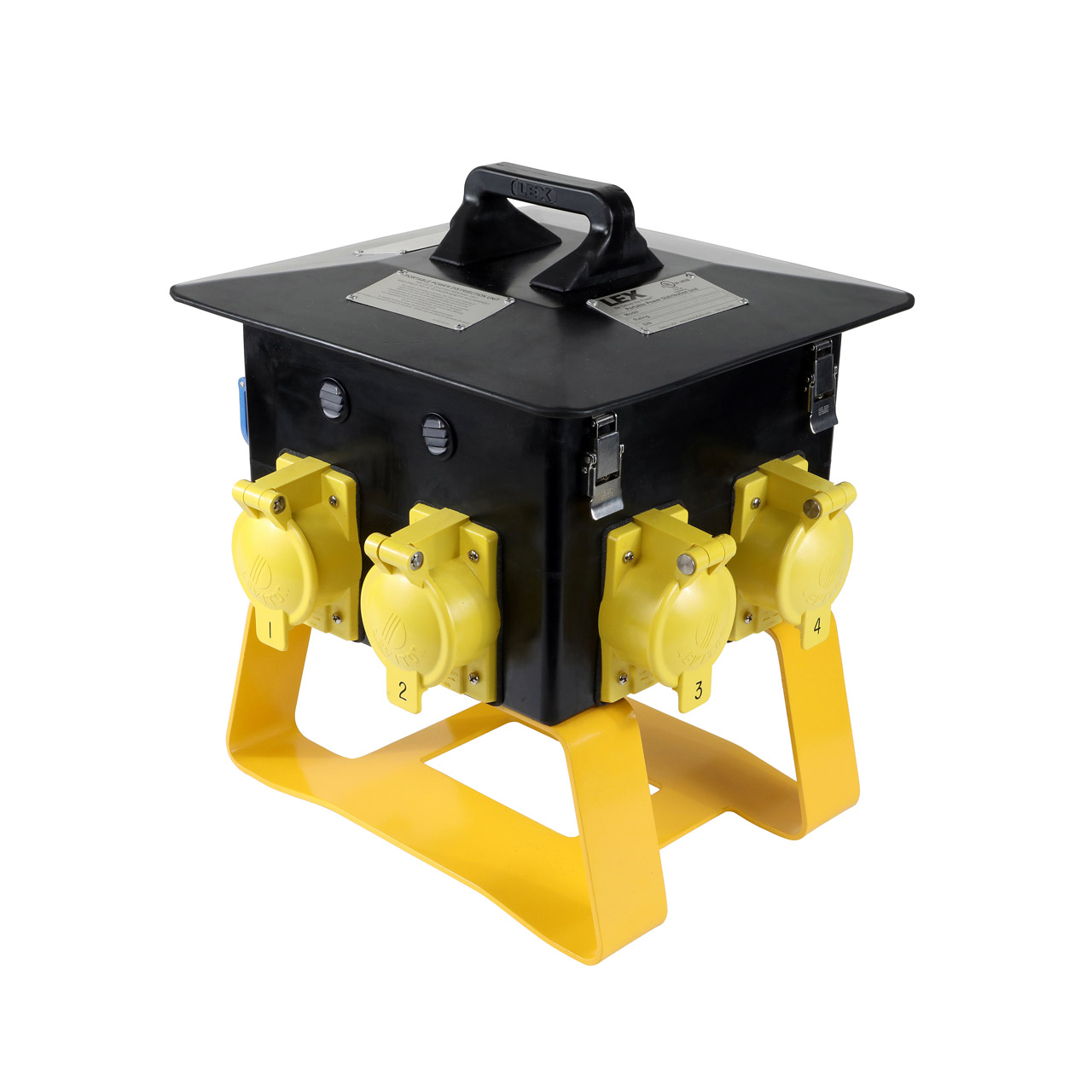

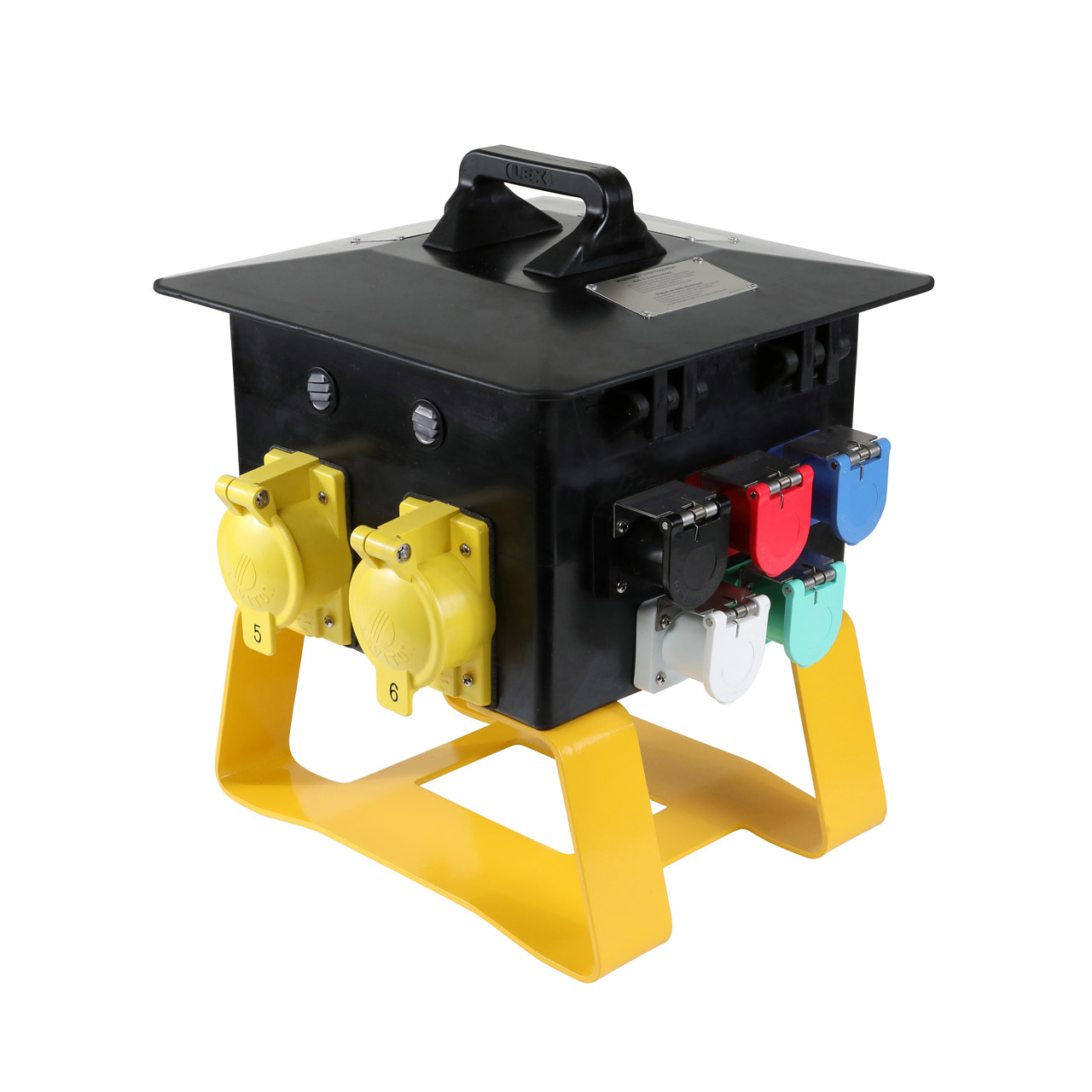

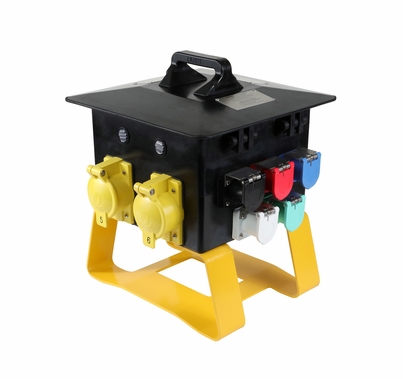

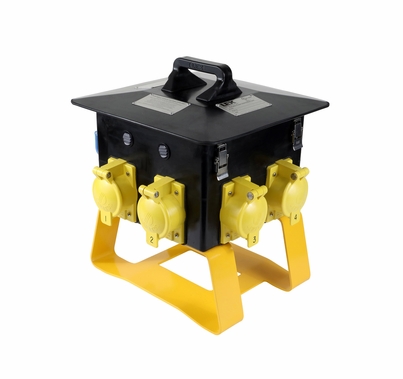

Lex 200 Amp Terrapin Station II to 50A Locking Receptacles, Weather Resistant, Type 3R
200A 120/208 VAC, (5) 16 Series Cam-type, Single Pole Males (Inlets) to (5) California Style Locking Receptacles, Terrapin II
Features & Benefits
- This box may be fed directly from a generator, a panel or from a larger box and is able to provide temporary power in disaster relief situations to power lights, pumps, fans and tools.
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted under hinged lid for enhanced safety
- Weather-protective receptacle covers
- Stackable and compact for easy storage and portability
- Heavy-duty aluminum legs, position the box at the NEC regulatory height of 6 inches while allowing for storage and transportation stacking
Markets Served
Electrical Distribution, Maintenance, Shipbuilding, Generator Rental, Construction, Outdoor Events, Shelters
Technical Information
Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, panel mount
Output:(6) 50 Amp, 3-Pole, 4-Wire, 125/250 VAC, California-style locking receptacles
Feed Thru: None
Overcurrent Protection: (6) 50 Amp, 125 VAC, double pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda
Dimensions: 14.25" x 14.25"W x 17.50"H
Weight: 35.0 lbs
Agency Approval: cULus Listed
