PRODUCT DESCRIPTION
Lex Moving Light Pagoda Combination 200 Amp | DB160NP-ADDMS1
Rubber Enclosure, 160A, Panel Mount Cam Inlet, (12) L620 Locking Receptacles paralleled to (2) LSC19 Receptacles, (1) 5-20 Duplex Receptacle, Type 1
Features & Benefits
- This box powers 12 moving lights at a remote location with (12) NEMA L6-20 plugs and/or (2) 6-circuit, 250 VAC multi-cables
- The two types of receptacles are wired in parallel
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

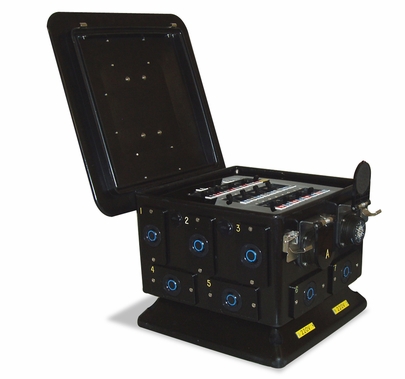

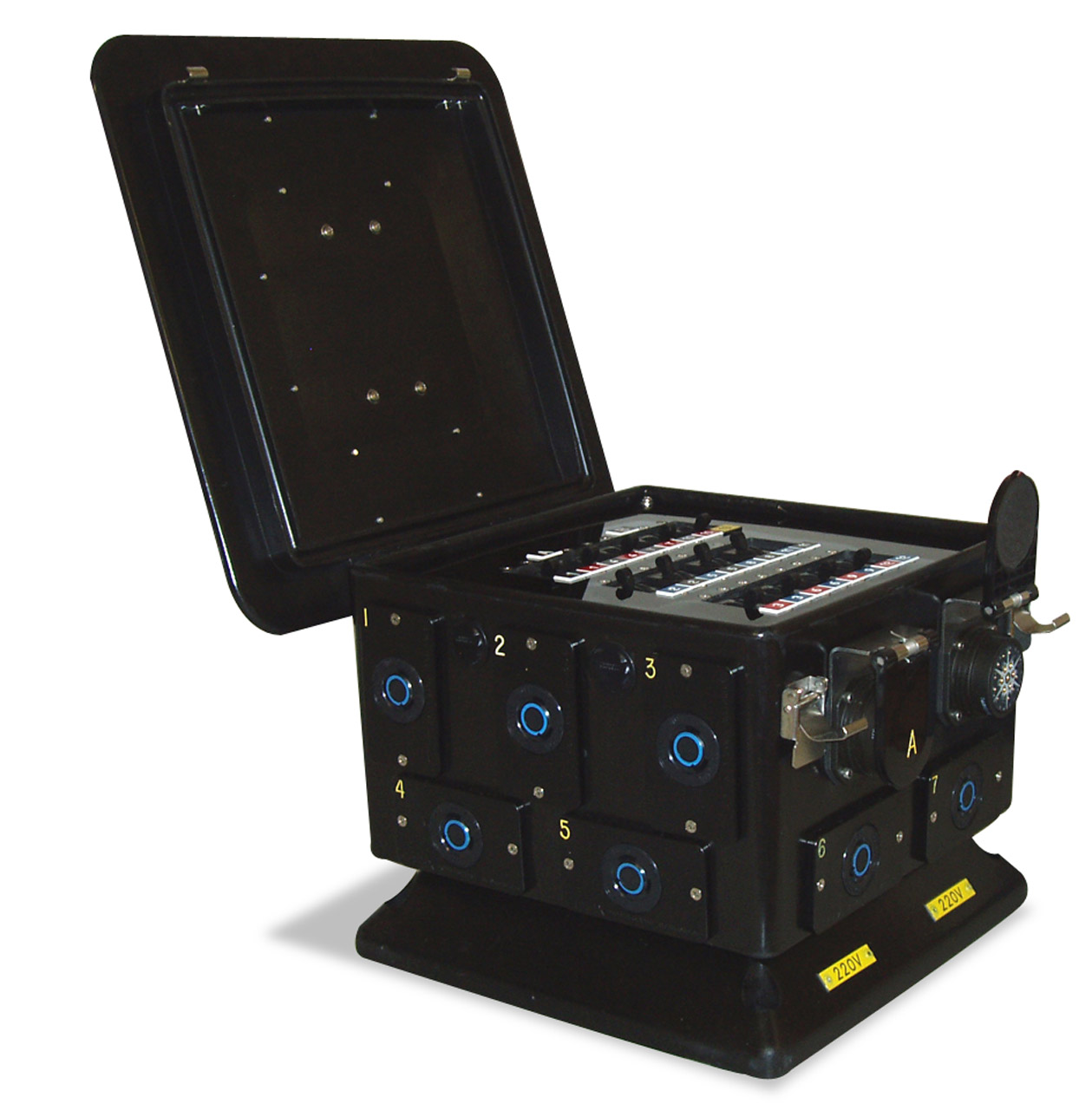

- Circuit breakers mounted under a hinged lid for enhanced safety
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Markets Served
- Concert Production, Theatrical, Live Events
Specs
- Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 1 (Indoor Use)

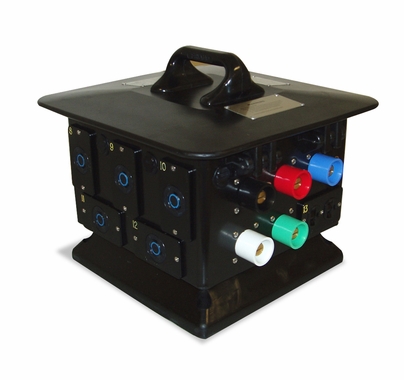

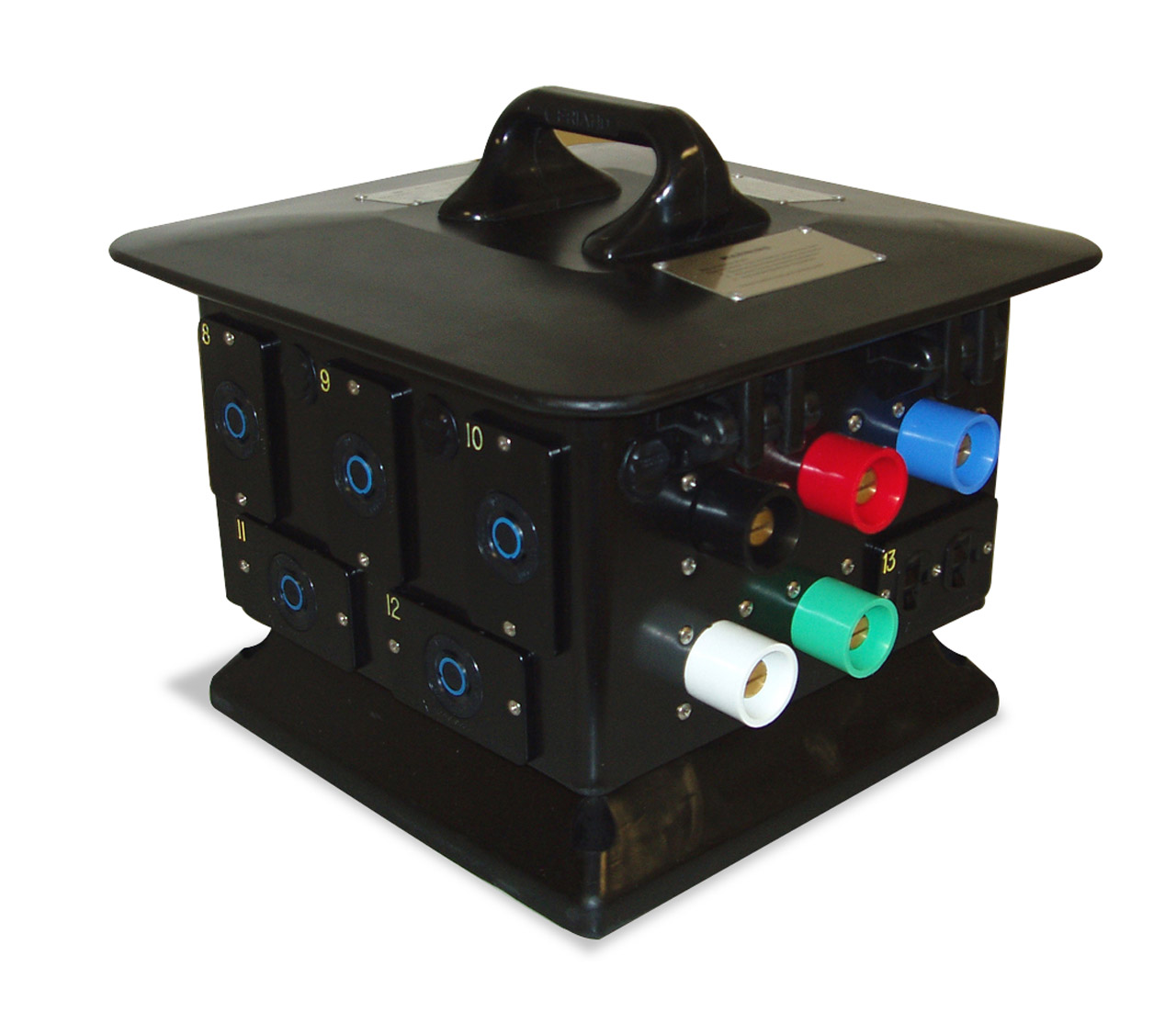

- Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, panel mount
- Feed Thru: None
- Main Breaker: None
- Output: (12) NEMA L6-20, 20 Amp, 2-pole, 3-wire, 250 VAC, locking receptacles, panel mount wired in parallel with (2) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 250 VAC, 19-pin locking receptacles, panel mount; (1) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
Overcurrent Protection: (12) 20 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breaker; (1) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
- Enclosure Type: Pagoda™
- Dimensions: 14.25"L x 14.25"W x 14.15"H
- Weight: 32.0 lbs
- Agency Approval: cULus Listed
