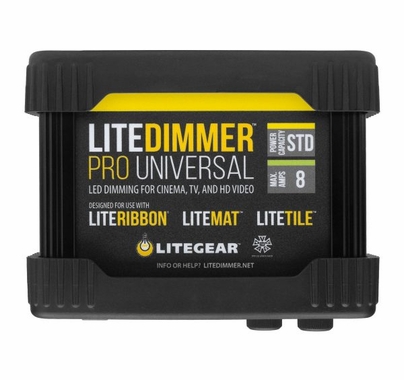

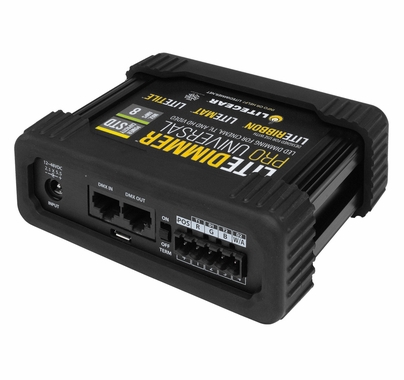

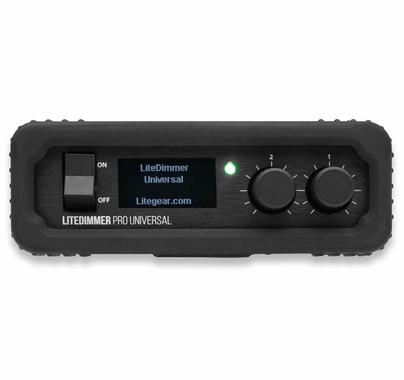

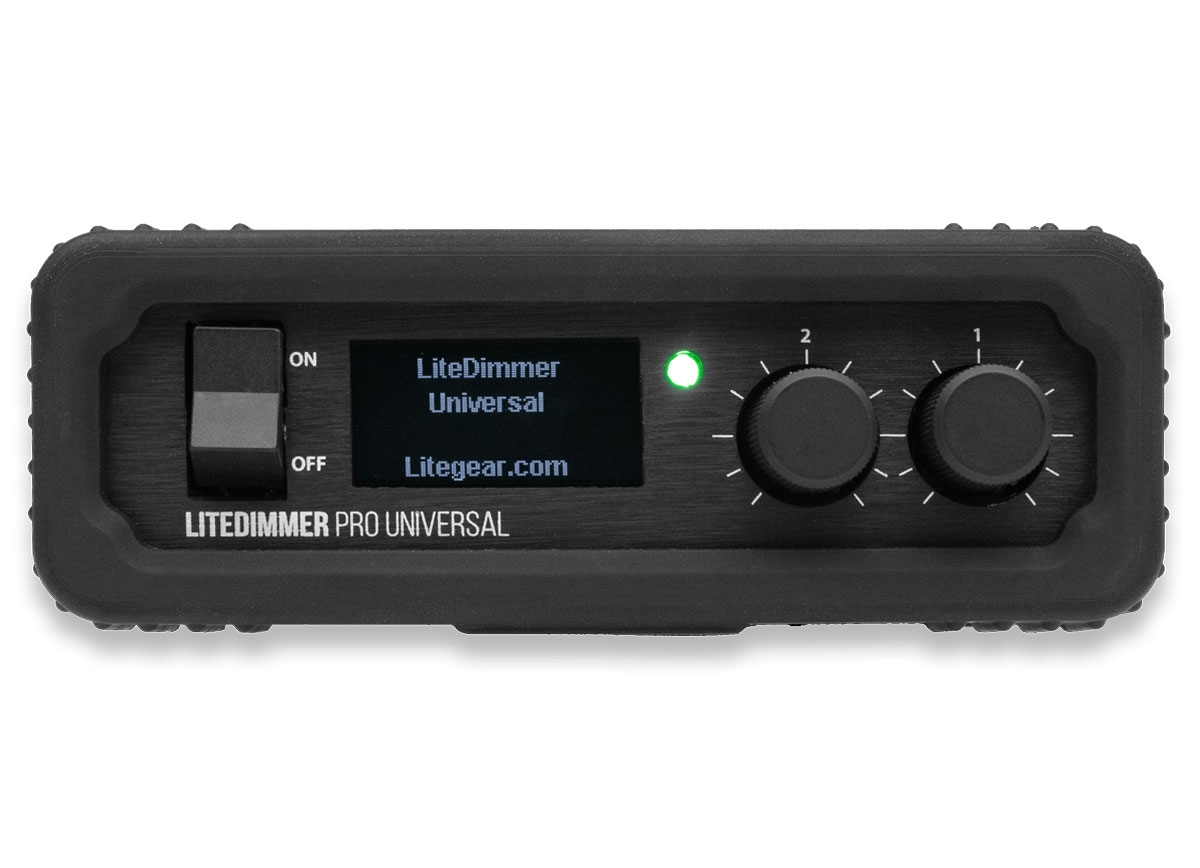

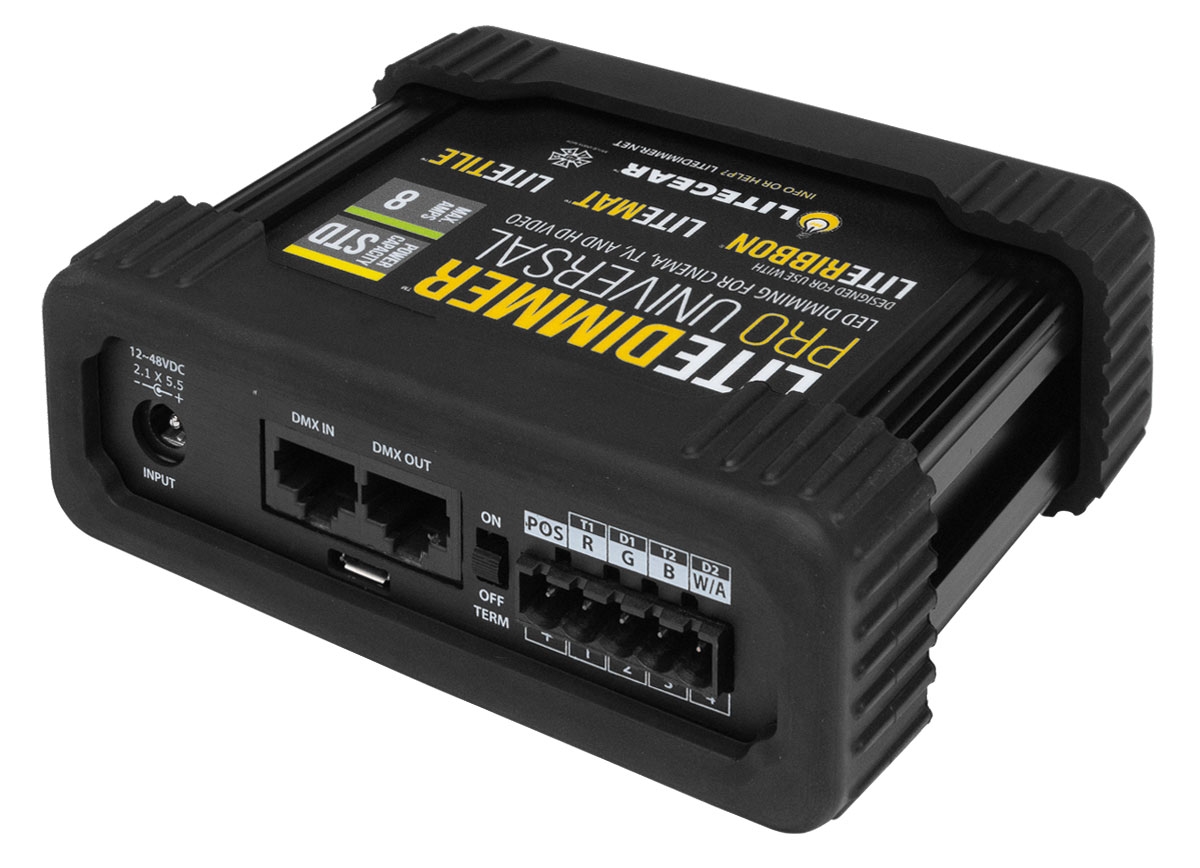

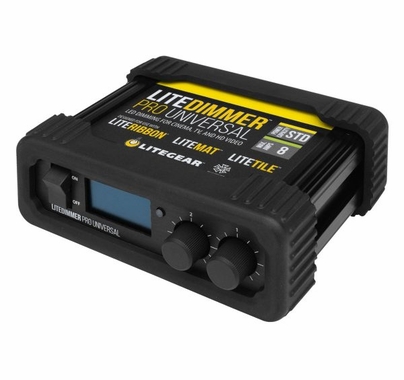

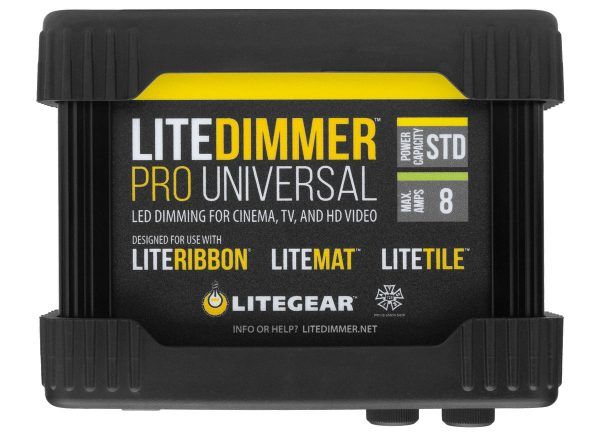

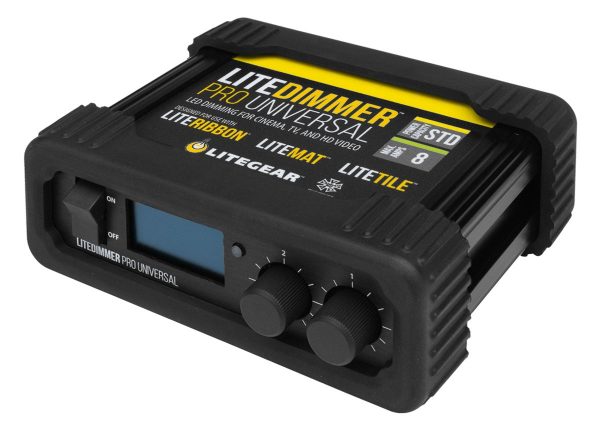

LiteGear LiteDimmer Pro Universal

PRODUCT DESCRIPTION

LiteGear LiteDimmer Pro Universal | LD1.00123

LiteDimmer Universal is a professional, cinema-grade, flicker-free, LED DMX dimmer. This Standard Capacity (8A Total) offers both manual and remote dimming in one. The LiteDimmer Universal is designed to work with Single, Hybrid, RGB and RGBW/A LiteRibbon, has an operating voltage from 12VDC to 48VDC, and allows for adjustable PW/M.

***ALL SALES FINAL NO RETURNS on LiteGear Products***

Features:

• Single, Hybrid, RGB, RGBX, and Independent Profiles
• Manual and DMX Operation
• Variable DMX Loss Behavior Settings
• Variable PWM
• Flicker-Free
• 8-bit and 16-bit Operation
• Magnetized Rubber Bumpers for Mounting
• Cold Shoe Slot for Mounting
• Standard Capacity (8A Max.)

Specs

• RATING: 8A Max. per Channel; 8A Max. Total
• INPUT: 12VDC~48VDC (Connector: BAR-M)
• OUTPUT: Constant Voltage, PWM (Connector: PH5.M)
• PROTOCOL: DMX512
• DMX INPUT/OUTPUT JACK: RJ45
• SIZE: 90.2 mm (3.55 in.) length, 121.4 mm (4.78 in.) width, 59.2 mm (2.33 in.) height
• WEIGHT: 0.84 lb, 0.380 kg

What's Included

• LiteDimmer Pro Universal
• User Guide
