**Discontinued** LiteGear LiteDimmer Micro Single LED Dimmer 4A max

PRODUCT DESCRIPTION

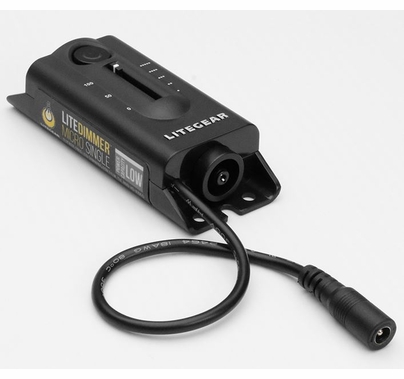

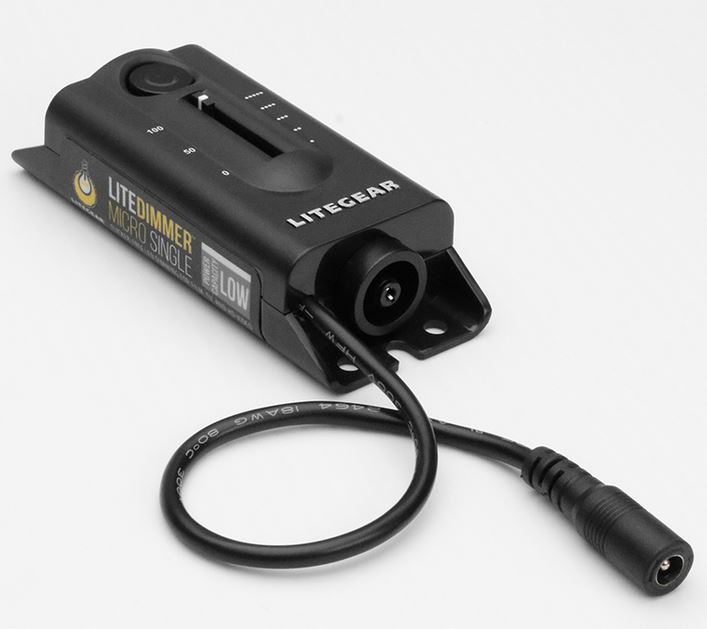

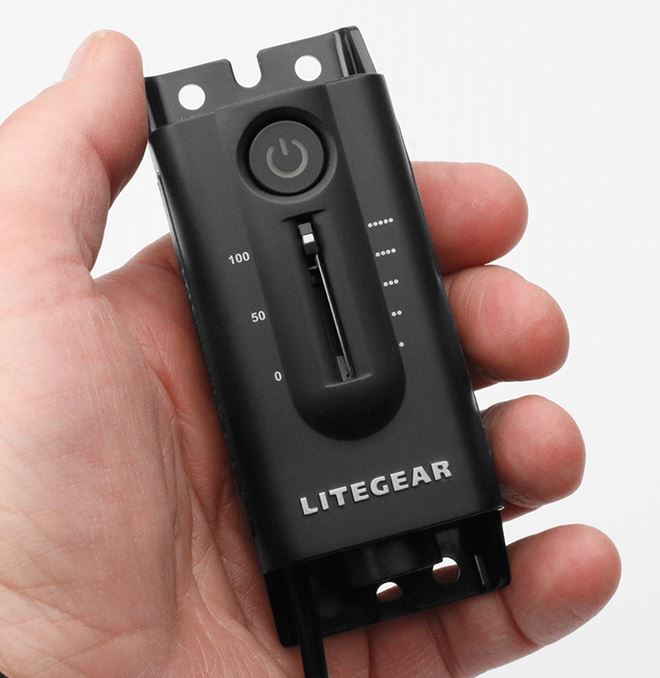

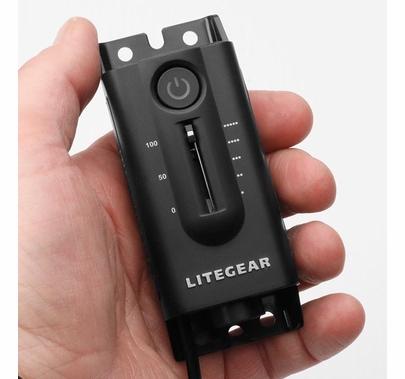

LiteGear LiteDimmer Micro Single LED Dimmer 4A max

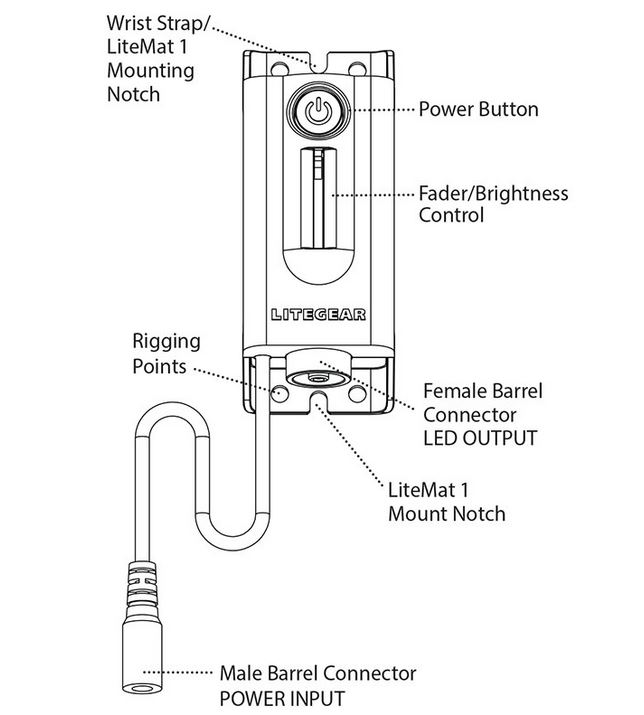

A simple, compact LED dimmer for LiteRibbon and LiteStix with a maximum draw of 96 watts at 12 volts or 4 amps. Features an on / off switch and 100 - 0 slide control. *** Bonus feature *** can be programmed for adjustable fade time. Now by pressing the on/off button the LiteRibbon can fade up or fade down on cue. For use with Single Color LiteRibbon with barrel connectors.

Specs

• SIZE: 4 in. x 1.625 in. x 1.125 in.
• WEIGHT: 0.146 lb, 2.336 oz, 66 g
• INPUT: 12/24V DC, (9-24V DC); input voltage must match load voltage requirements!
• RATING: 4 amps max. total
• WATTAGE: 96 watts max. total at 12VDC; 192 watts max. total at 24VDC.
• CONNECTOR: Barrel, 2.1 mm x 5.5 mm
• OUTPUT: DynaRythmic PWM; does not provide “current limiting.”
