LiteGear Micro Hybrid LED Dimmer LD-MICRO-HYBRID

PRODUCT DESCRIPTION

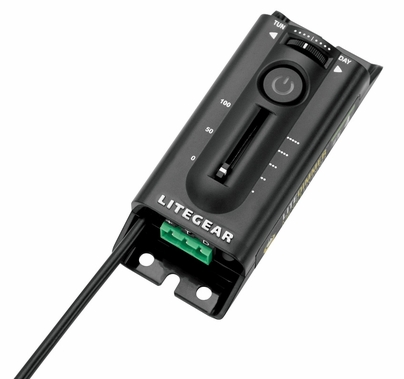

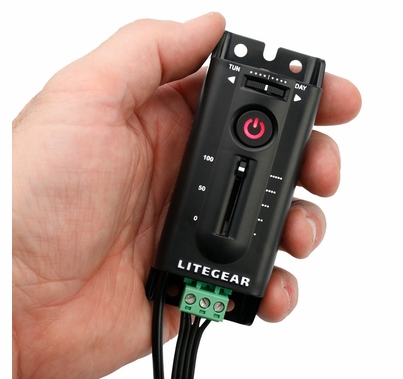

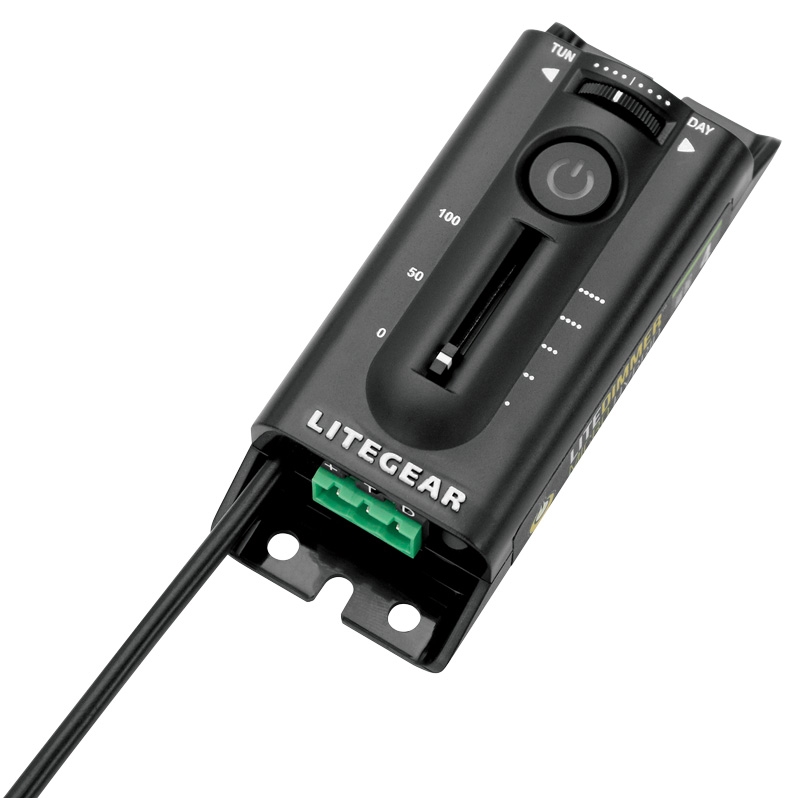

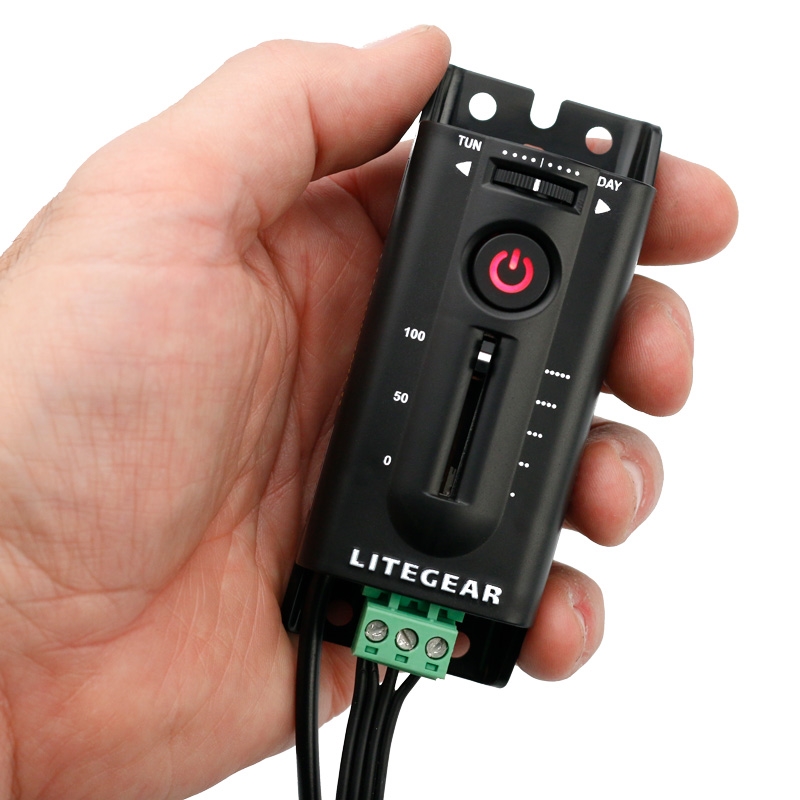

LiteGear Micro Hybrid LED Dimmer LD-MICRO-HYBRID

The LiteDimmer Micro Hybrid is a flicker-free, entry-level, handheld LED Hybrid dimmer. As the most basic of LiteGear’s Hybrid LiteDimmers, it is lightweight and travel-friendly, making it perfect for situations requiring small amounts of Hybrid LiteRibbon, a small LiteMat, or simply for those on a budget. Its simple yet powerful approach to controlling color temperature and brightness maintains LiteGear’s standard of performance and quality while allowing the kind of flexibility demanded from lighting professionals.

Features

• LiteDimmer Micro Single is programmed with the ability to set an adjustable fade time when turning your LiteRibbon on and off.


• “Aaaaand Action!” Cueing: After setting the fade time, this dimmer function allows for the LiteRibbon to be brought up on cue.


• From STANDBY: When the cue is given, release the “Power” button, and the LiteRibbon will fade on (with the set fade time) to the desired brightness.


• From ON: When the cue is given, release the “Power” button, and the LiteRibbon will fade off (with the set fade time).

Technical Specs

• SIZE: 4 in. x 1.625 in. x 1.125 in.
• WEIGHT: 0.137 lb, 2.187 oz, 62 g
• INPUT: 8~30VDC; input voltage must match load voltage requirements!
• RATING: 4 amps max. total
• CONNECTOR: Barrel, 2.1 mm x 5.5 mm
• OUTPUT: DynaRythmic PWM; does not provide “current limiting.”

For use with LiteGear products only.

What's Included

• LiteDimmer Micro Hybrid
• User Guide
