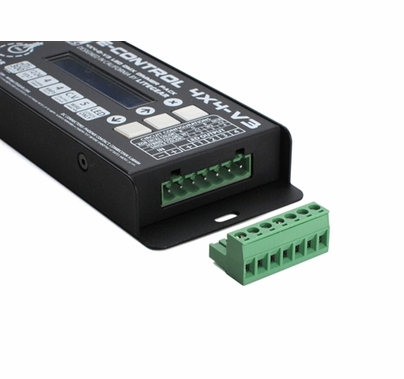

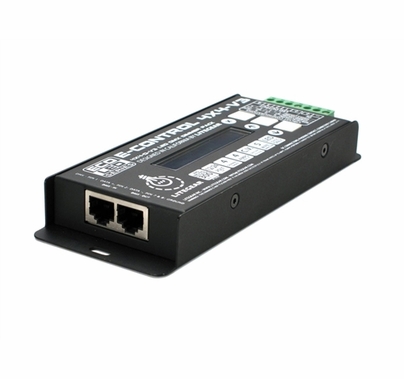

LiteGear DMX Dimmer Pack E-Control 4x4 V3.1

PRODUCT DESCRIPTION

LiteGear DMX Dimmer Pack E-Control 4x4 V3.1 | LD-ECO-DMX-4X4-V3.1

E-Control 4×4-V3.1 is an economical DMX decoder that also allows for manual control. Its lightweight and low profile lends itself to being built into nearly any rig and can adapt to many situations. It is capable of controlling multicolor LED LiteRibbon such as RGB-Amber, RGB-Tun, RGB-Day, RGB, and Hybrid (Bi-color), as well as four circuits of Single-circuit LiteRibbon.

Specs

• SIZE: 6.75 in. x 2.5625 in. x .875 in.
• WEIGHT: 0.682 lb, 10.912 oz, 309 g
• INPUT: 12V/24V DC; Input voltage must match load voltage requirements!
• OUTPUT: PWM
• RATING: 5A max. per channel x 4 channels; 16A maximum total current.
• CONNECTOR: Phoenix Contact, Combiconn 5.08 mm, 7-pin (or 2+5)

What's Included

• LED DMX Dimmer Pack, E-Control, 4×4-V3.1
• User Guide
