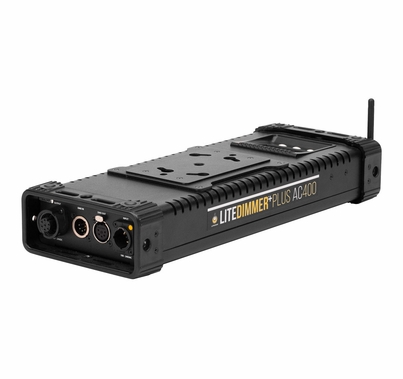

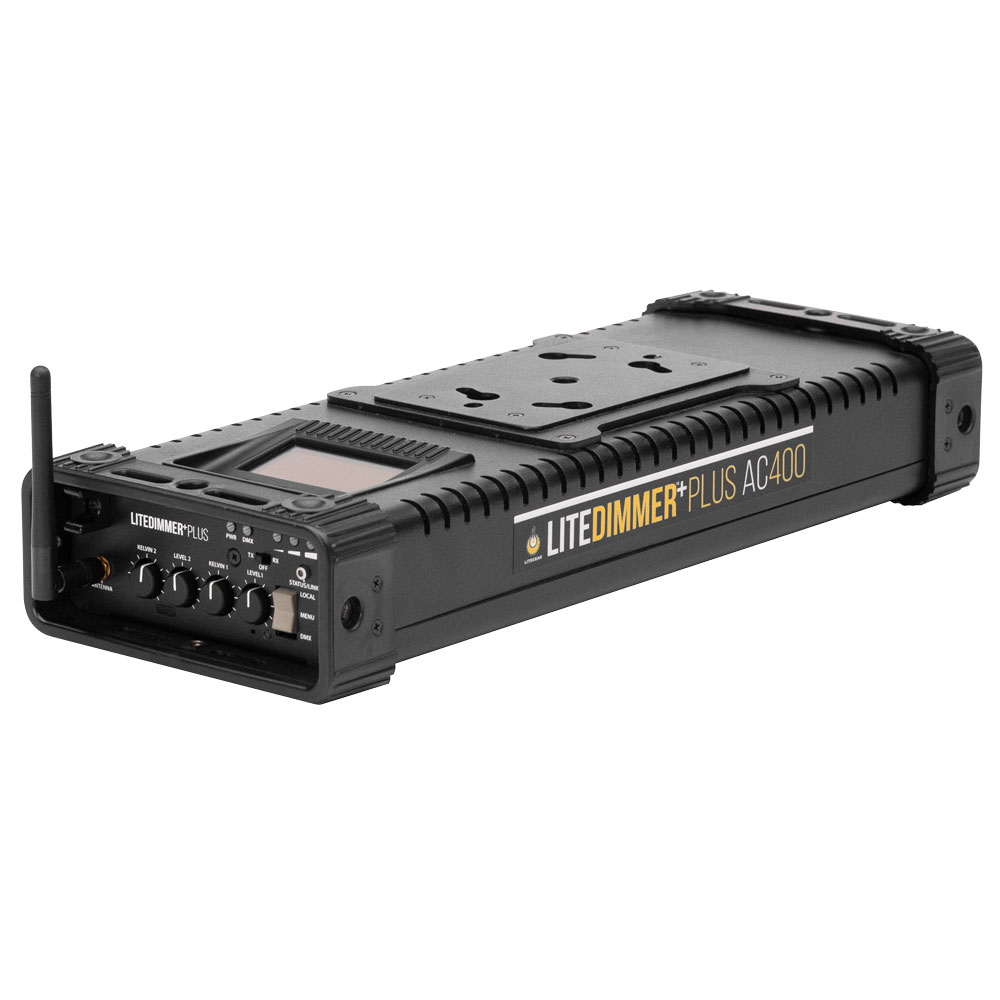

LiteGear LiteDimmer Plus AC400 DUO (DMX)

PRODUCT DESCRIPTION

LiteGear LiteDimmer Plus AC400 DUO (DMX) | LD1.00114

LiteDimmer Plus AC400 Duo is one of our flagship Plus Series power units. Compatible with all LiteMat Plus, LiteTile Plus, and all Plus compatible lighting products, the new Plus Dimmer features a large OLED display that provides visual feedback, and integrated wireless radio that acts as both a transmitter and a receiver for the ultimate wireless convenience. The dimmer also comes with advanced features such as load smoothing, local cueing controls, double-circuit control, and a special function that utilizes the integrated wireless card. The unit includes 1/4 – 20 threaded inserts that make rigging or mounting a simple task. The unit also features K-mount fittings used for attaching battery adapters, mounts, and power supplies.

The LiteDimmer Plus AC400 Duo must be powered using the 12V, 250W LitePower Power Supply (PS-12V-250W-F-PL4)

Specs

• POWER RATING: 400W Nominal
• VOLTAGE INPUT: 90~240VAC (264VAC Max.) (Powercon)
• VOLTAGE OUTPUT: Constant Voltage, PWM (PL7 Connector)
• DIMMING RANGE: 0% to 100% Continuous, Flicker-Free
• CONTROLS: On-Board “ON-OFF” Switch, Manual Kelvin Dial, Manual Dimming Dial
• SOFTWARE INTERFACE: Proprietary Connector, Service Center Upgradeable
• MOUNTING: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots
• AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
• IP RATING: IP20

Dimensions: 2.8" x 6.1" x 15.9"

Weight: 4.9 lbs
