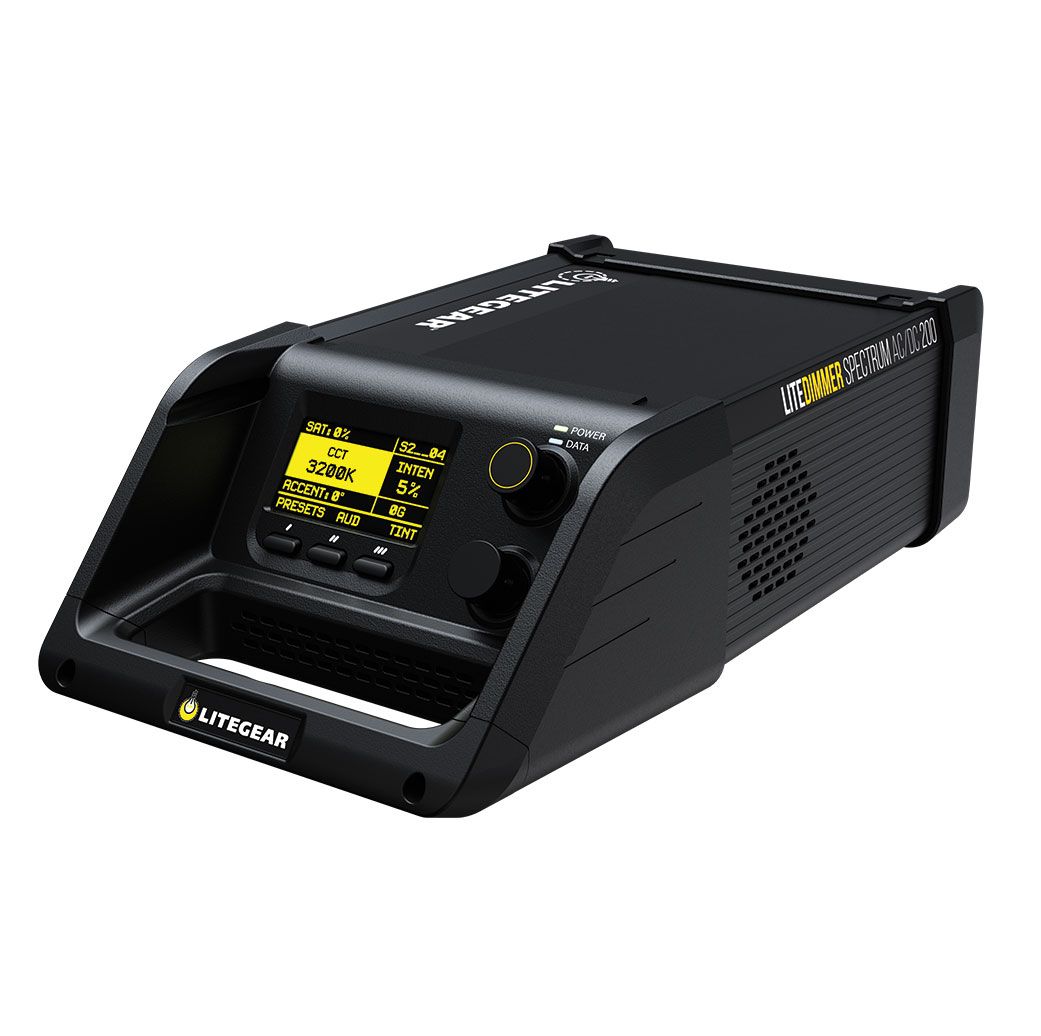

LiteGear LiteDimmer Spectrum AC/DC 200 Dimmer / Power Supply

PRODUCT DESCRIPTION

LiteGear LiteDimmer Spectrum AC/DC 200 Dimmer / Power Supply LD-SPECTRUM-ACDC200

The LiteDimmer Spectrum AC/DC 200 is part of a new class of dimmer packed with great new features, an ergonomic design, and ultra-compact form factor. Complete with local control and industry leading communication protocols, the AC/DC 200 can control multiple large format pixels, making pixel mapping of the LiteMat Spectrum easier than ever. The 200-watt LiteDimmer Spectrum AC/DC 200 powers the LiteMat Spectrum 1, 2, 2L, 3, and 4. Specially designed with AC and DC power options, integrated power supply, advanced processing power, Ethernet switch, expanded memory, and a faster processor, this new hardware allows for easy operation and cutting-edge software features. An integrated USB-A port enables easy updates that will bring new, innovative software for years to come. LiteDimmer Spectrum AC/DC 200 dimmers are backwards compatible with first generation LiteMat Spectrums.

The convenience of AC and DC power

The LiteDimmer Spectrum AC/DC units can be connected directly to mains power with no external power supply required. When AC power is not convenient, connect a 48-volt DC battery to the 3-pin XLR connector and you�re on the go. When both AC and DC power are connected, AC will take priority. When the AC is disconnected, the dimmer will automatically switch to DC power.

Two power classes, one compact design

Two power options are offered in the same feature-packed form factor. The 200-watt LiteDimmer Spectrum AC/DC 200 powers the LiteMat Spectrum 1, 2, 2L, 3, and 4. The 400-watt LiteDimmer Spectrum AC/DC 400 powers the complete LiteMat Spectrum line, including the LiteMat Spectrum 8. Both dimmers are backwards compatible with first generation LiteMat Spectrums.

Flexibility in Mounting

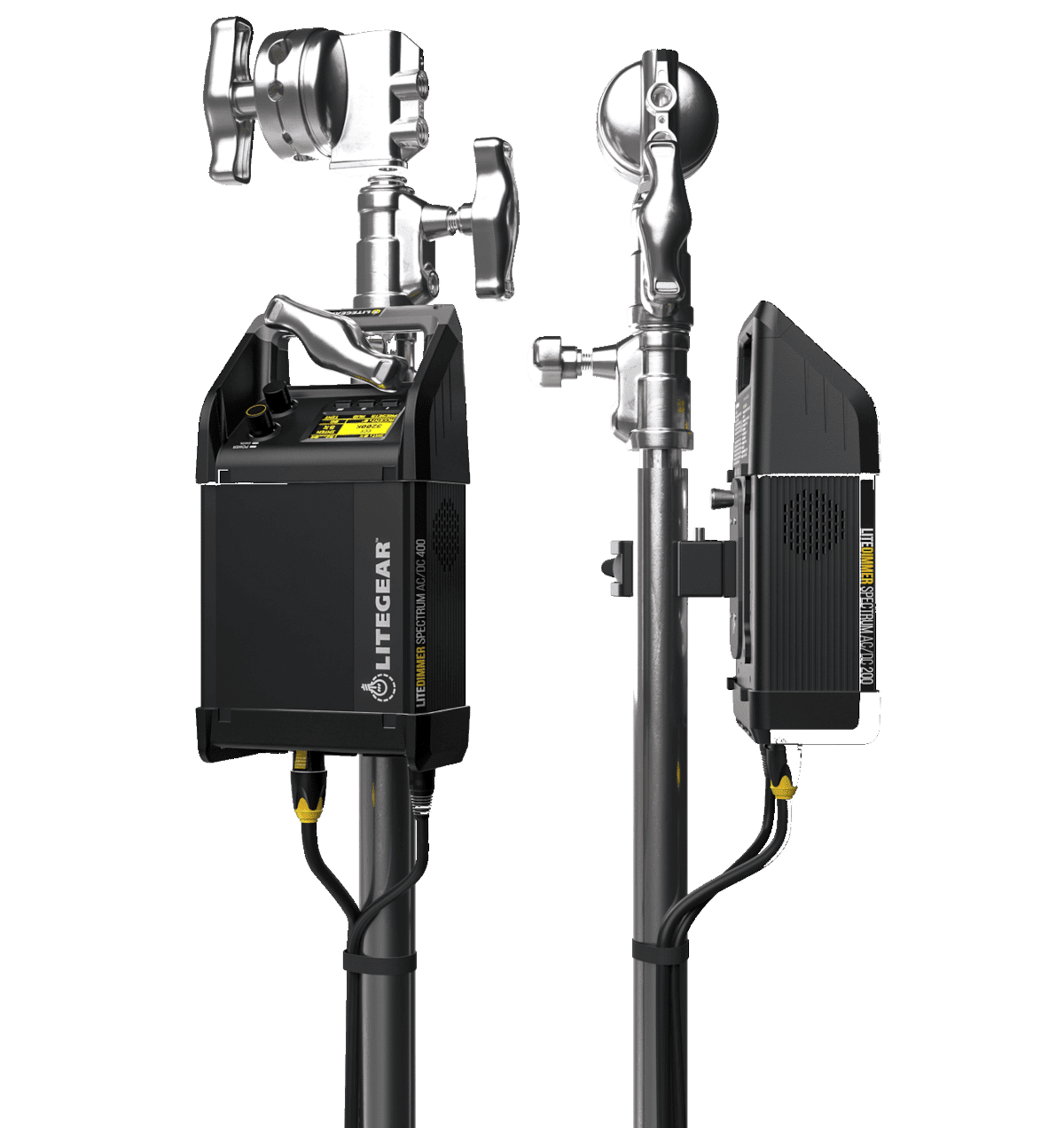

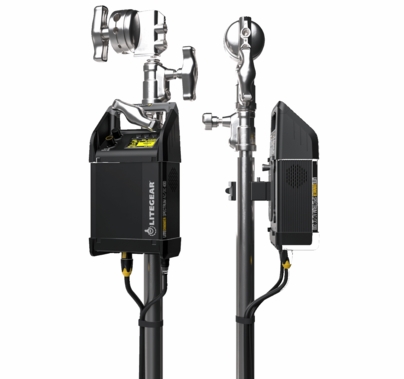

The new LiteDimmer Spectrum AC/DC 200 and 400 offers multiple quick mounting options. With a twist and a click, the Dimmer Stand Mount attaches to the dimmer and securely attaches to any light stand. For an even quicker solution, the integrated multi-function handle serves as a convenient mounting solution when placed on a light stand knuckle.

Specs

• Product Name: LiteDimmer Spectrum AC/DC 200
• Item Number: LD-SPECTRUM-ACDC200
• Model: 299-1
• Input Voltage: 100 � 240V AC, 50/60 Hz
• Input Current: 3A
• Output Voltage: 48V DC
• Output Current: 5A

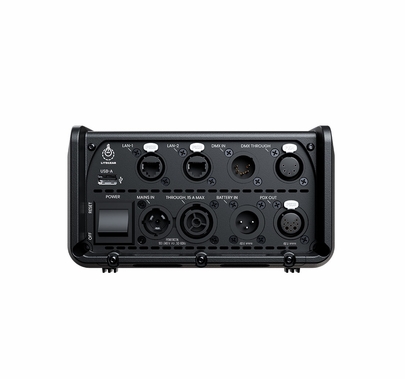

• Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
• Data Connectors: PDX
• Mains Power Connectors: powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
• Control: DMX, RDM, CRMX, Art-Net, sACN
• Switches: On-board On/Off Switch
• Power: 250W Maximum
• IP Rating: IP20
• Weight: 6.8 lbs (3.1 kg)
• Dimensions:
  Height: 4.1 in (104.4 mm)
  Width: 7.3 in (185 mm)
  Length: 13.3 in (338.6 mm)
• Max Operating Temperature: 122�F (50�C)
• Mounting: kMount (truss & stand mounts available)
• Certifications: ETL, CE, UKCA, FCC (certification pending
