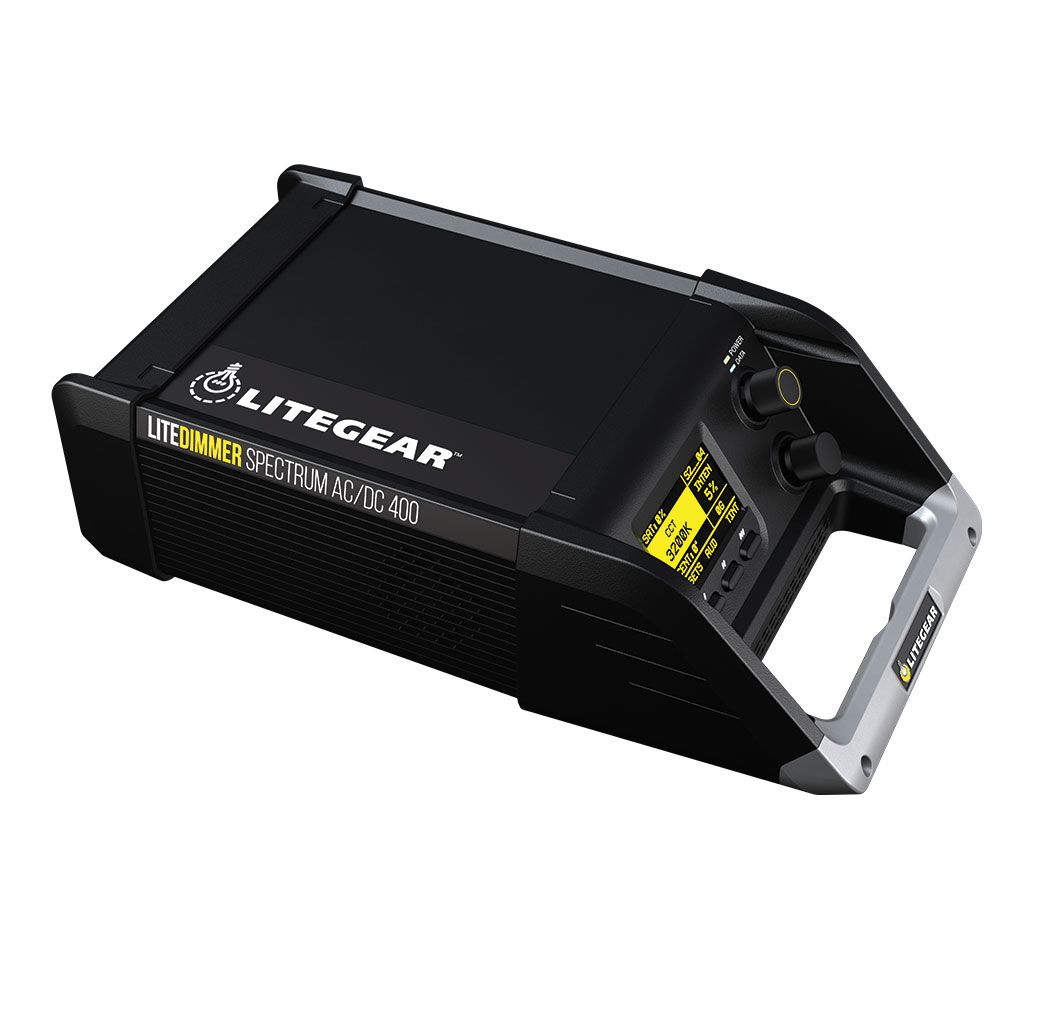

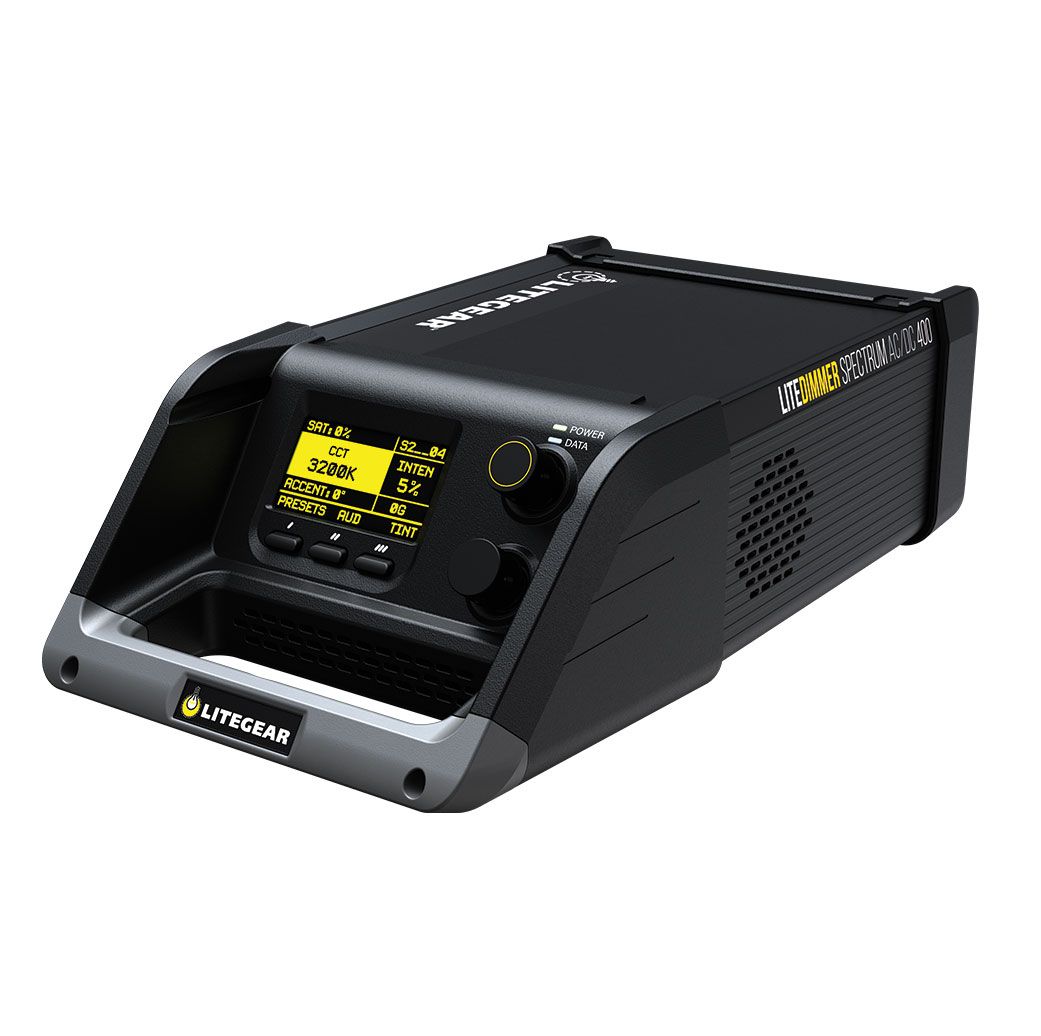

LiteGear LiteDimmer Spectrum AC/DC 400 Dimmer / Power Supply

PRODUCT DESCRIPTION

LiteGear LiteDimmer Spectrum AC/DC 400 Dimmer / Power Supply | LD1.00130

The LiteDimmer Spectrum AC/DC 400 is part of a new class of dimmer packed with great new features, an ergonomic design, and ultra-compact form factor. Complete with local control and industry leading communication protocols, the AC/DC 400 can control multiple large format pixels, making pixel mapping of the LiteMat Spectrum easier than ever. Specially designed with AC and DC power options, integrated power supply, advanced processing power, Ethernet switch, expanded memory, and a faster processor, this new hardware allows for easy operation and cutting-edge software features. An integrated USB-A port enables easy updates that will bring new, innovative software for years to come.

Product Name: LiteDimmer Spectrum AC/DC 400

• Item Number: LD-SPECTRUM-ACDC400
• Model: 300-1
• Input Voltage: 100 – 240V AC, 50/60 Hz
• Input Current: 4.5A
• Output Voltage: 48V DC
• Output Current: 9.25A
• Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
• Data Connectors: PDX
• Mains Power Connectors: powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare
• Ends cables available)
• Control: DMX, RDM, CRMX, Art-Net, sACN
• Switches: On-board On/Off Switch
• Power: 450W Maximum
• IP Rating: IP20
• Weight: 7 lbs (3.2 kg)
• Dimensions:
• Height: 4.1 in (104.4 mm)
• Width: 7.3 in (185 mm)
• Length: 13.3 in (338.6 mm)
• Max Operating Temperature: 122ºF (50ºC)
• Mounting: kMount (truss & stand mounts available)
• Certifications: ETL, CE, UKCA, FCC (certification pending)
